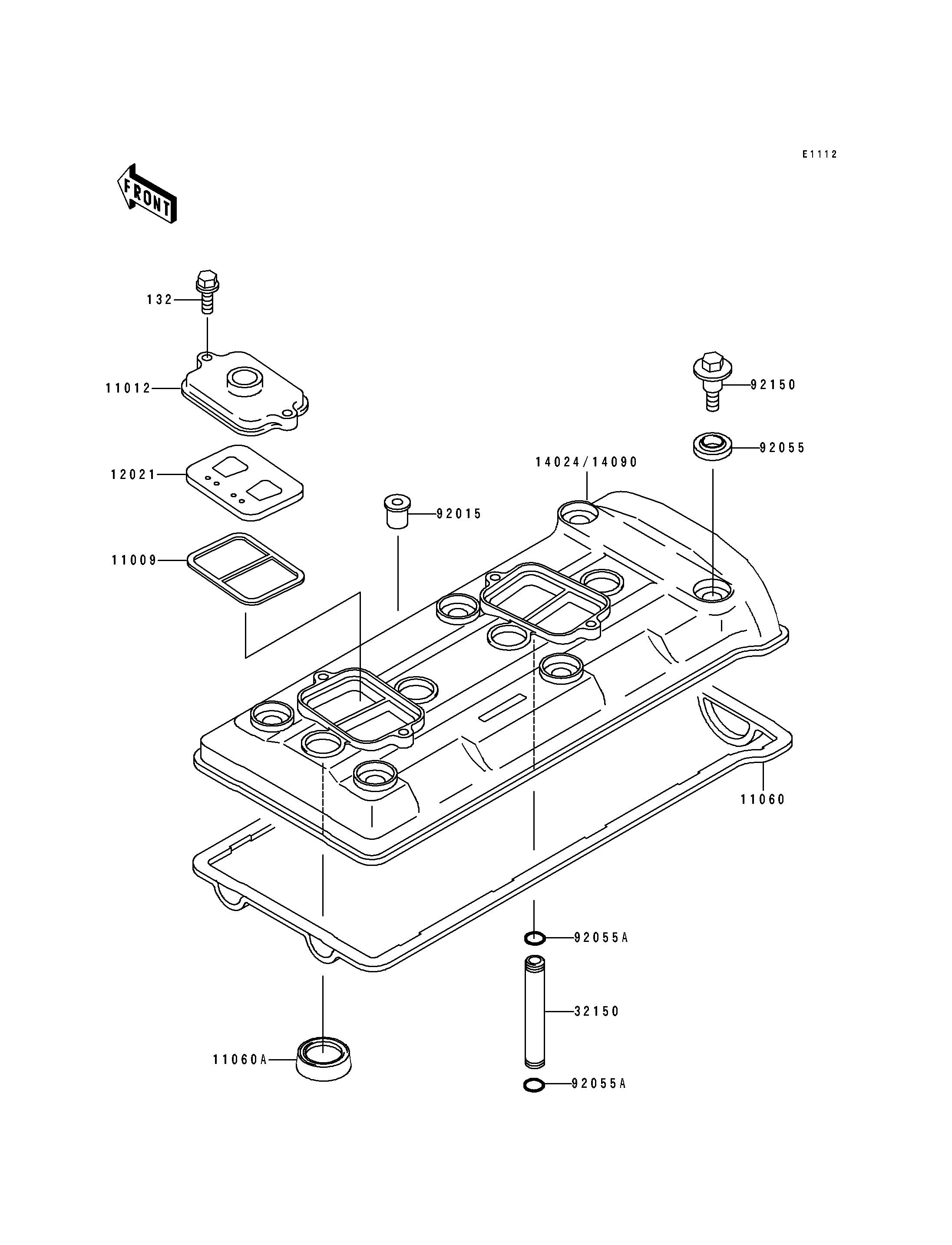

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,REED VALVE 11009 11009-1857 2 CAUS
CAP,REED VALVE 11012 11012-1758 2 CAUS
GASKET,HEAD COVER 11060 11060-1076 1
GASKET,PLUG 11060A 11060-1077 4
VALVE-ASSY-REED 12021 12021-1053 2 CAUS
COVER,HEAD 14024 14024-1996 1 CAUS
COVER,HEAD 14090 14090-1071 1 CN
PIPE,AIR SWITCH 32150 32150-1793 4 CAUS
NUT 92015 92015-1700 1
RING-O,HEAD COVER BOLT 92055 92055-1352 6
RING-O,9X1.5 92055A 92055-1509 8 CAUS
BOLT,HEAD COVER 92150 92150-1447 6
BOLT-FLANGED-SMALL 132 132G0620 4 CAUS
