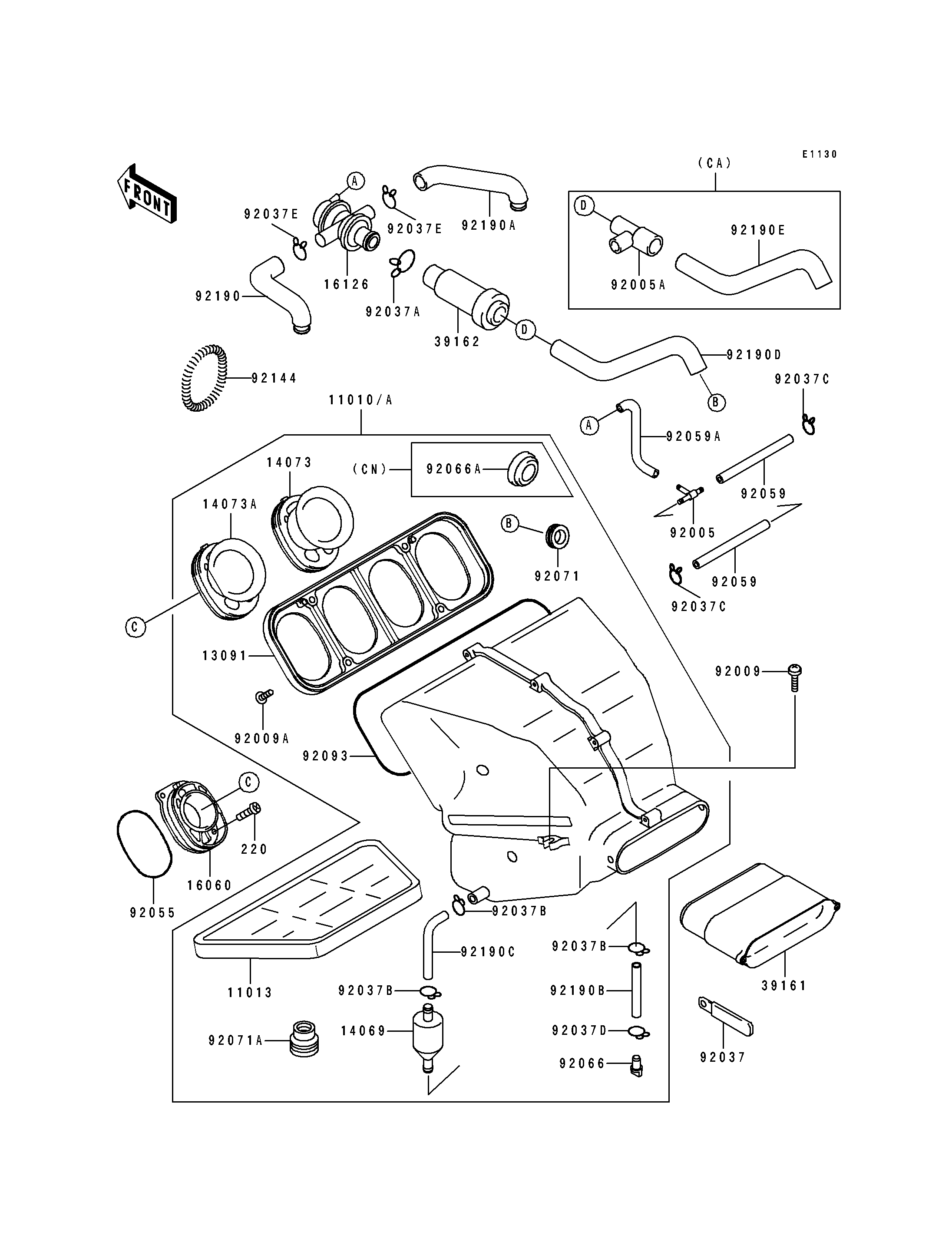

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FILTER-ASSY-AIR | 11010 | 11010-1465 | 1 | CAUS | |
FILTER-ASSY-AIR | 11010A | 11010-1467 | 1 | CN | |
ELEMENT-AIR FILTER | 11013 | 11013-1210 | 1 | ||
HOLDER,AIR FILTER | 13091 | 13091-1731 | 1 | ||
BREATHER | 14069 | 14069-1051 | 1 | ||
DUCT,#2 | 14073 | 14073-1502 | 2 | ||
DUCT,#1 | 14073A | 14073-1503 | 2 | ||
PIPE-INTAKE | 16060 | 16060-1068 | 4 | ||
VALVE,AIR SWITCH | 16126 | 16126-1104 | 1 | CAUS | |
SILENCER-ASSY-INTAKE | 39161 | 39161-1068 | 1 | ||
SILENCER-INTAKE | 39162 | 39162-1003 | 1 | CAUS | |
FITTING,TUBE,T-TYPE | 92005 | 92005-1017 | 1 | CAUS | |
FITTING,SILENCER | 92005A | 92005-1207 | 1 | CA | |
SCREW,6X25 | 92009 | 92009-1511 | 2 | ||
SCREW,TAPPING,6X25 | 92009A | 92009-1640 | 4 | ||
CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 1 | ||
CLAMP,TUBE | 92037A | 92037-1076 | 1 | CAUS | |
CLAMP,FUEL TUBE | 92037B | 92037-1271 | 3 | ||
CLAMP | 92037C | 92037-1712 | 2 | CAUS | |
CLAMP,TUBE | 92037D | 92037-1972 | 1 | ||
CLAMP,TUBE | 92037E | 92037-213 | 2 | CAUS | |
RING-O,67.7X3.1 | 92055 | 92055-1434 | 4 | ||
TUBE,FUEL,4X9X140 | 92059 | 92059-1230 | 2 | CAUS | |
TUBE,4X9X500,WHITE | 92059A | 92059-1533 | 1 | CAUS | |
PLUG,DRAIN | 92066 | 92066-1211 | 1 | ||
PLUG,25MM | 92066A | 92066-1321 | 1 | CN | |
GROMMET,AIR FILTER | 92071 | 92071-1028 | 1 | CAUS | |
GROMMET,AIR FILTER | 92071A | 92071-1204 | 1 | ||
SEAL,AIR FILTER | 92093 | 92093-1320 | 1 | ||
SPRING,DUCT | 92144 | 92144-1563 | 4 | ||
TUBE,HEAD-AIR SWITCH,LH | 92190 | 92190-1197 | 1 | CAUS | |
TUBE,HEAD-AIR SWITCH,RH | 92190A | 92190-1198 | 1 | CAUS | |
TUBE,7X12X45 | 92190B | 92190-1200 | 1 | ||
TUBE,BREATHER | 92190C | 92190-1243 | 1 | ||
TUBE,AIR SWITCH-AIR FILTER | 92190D | 92190-1254 | 1 | US | |
TUBE,AIR SWITCH-AIR FILTER | 92190E | 92190-1255 | 1 | CA | |
SCREW-PAN-CROS | 220 | 220B0512 | 8 |
