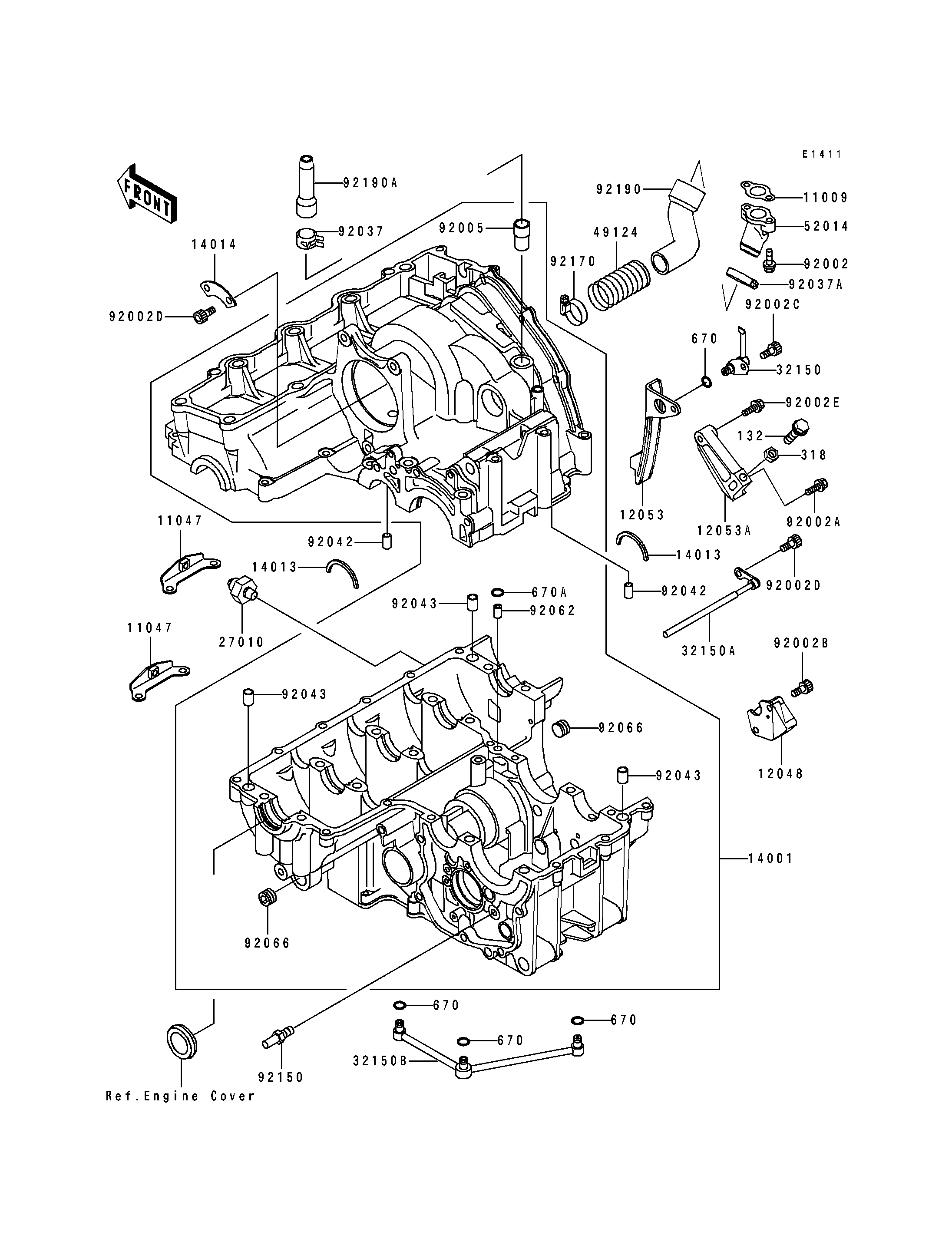

1991 Ninja® ZX™-7 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,ELBOW 11009 11009-1935 1
BRACKET,RADIATOR 11047 11047-1236 2
TENSIONER-ASSY 12048 12048-1109 1
GUIDE-CHAIN 12053 12053-1281 1
GUIDE-CHAIN 12053A 12053-1285 1
SET-CRANKCASE 14001 14001-1078 1
RING-POSITION,T=1.98 14013 14013-1004 2
PLATE-POSITION 14014 14014-1056 1
SWITCH,OIL PRESSURE 27010 27010-1155 1
PIPE 32150 32150-1794 1
PIPE 32150A 32150-1795 1
PIPE 32150B 32150-1796 1
SPRING-TUBE GUARD 49124 49124-1056 1
ELBOW 52014 52014-1069 1
BOLT,6X20 92002 92002-1343 2
BOLT,6X25 92002A 92002-1582 1
BOLT,SOCKET,6X25 92002B 92002-1696 2
BOLT,SOCKET,6X16 92002C 92002-1778 1
BOLT,SOCKET,6X12 92002D 92002-1796 3
BOLT,6X30 92002E 92002-1797 1
FITTING,BREATHER 92005 92005-1129 1
CLAMP 92037 92037-1730 1
CLAMP,COOLING HOSE 92037A 92037-1989 1
PIN,DOWEL,6X16 92042 92042-016 2
PIN,DOWEL,10X14 92043 92043-1037 3
NOZZLE 92062 92062-1074 1
PLUG 92066 92066-1262 2
BOLT,RETURN SPRING 92150 92150-1467 1
CLAMP,COOLING HOSE 92170 92170-1033 1
TUBE 92190 92190-1244 1
TUBE,BREATHER 92190A 92190-1245 1
BOLT-FLANGED-SMALL 132 132G0820 1
NUT-HEX-SMALL,8MM 318 318B0800 1
O RING 670 670D1505 4
O RING,8MM 670A 670D1508 1
