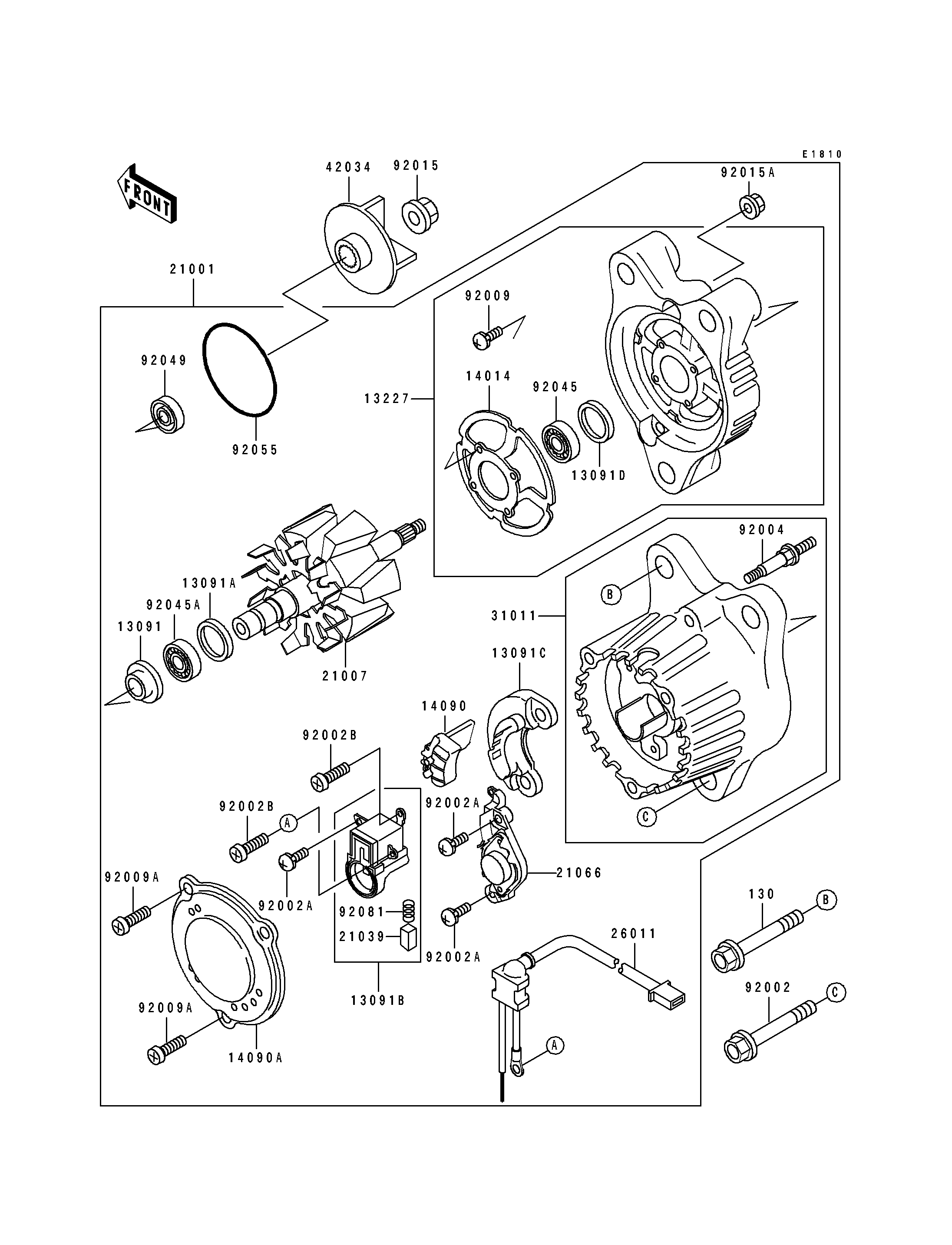

1991 Ninja® ZX™-7 - Generator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,COVER 13091 13091-1327 1
HOLDER,BEARING 13091A 13091-1328 1
HOLDER,BRUSH 13091B 13091-1465 1
RECTIFIER 13091C 13091-1466 1
HOLDER,BEARING 13091D 13091-1748 1
HOUSING,GENERATOR 13227 13227-1106 1
PLATE-POSITION 14014 14014-1105 1
COVER,RECTIFIER 14090 14090-1113 1
COVER,GENERATOR 14090A 14090-1114 1
GENERATOR 21001 21001-1115 1
ROTOR,GENERATOR 21007 21007-1229 1
BRUSH,CARBON 21039 21039-1052 2
REGULATOR-VOLTAGE 21066 21066-1076 1
WIRE-LEAD,GENERATOR 26011 26011-1497 1
FRAME,GENERATOR 31011 31011-1067 1
COUPLING 42034 42034-1056 1
BOLT,8X63 92002 92002-1215 1
SCREW,5X17.5 92002A 92002-1380 3
BOLT,6X105 92002B 92002-1585 2
STUD 92004 92004-1196 2
SCREW 92009 92009-1645 4
SCREW 92009A 92009-1646 3
NUT,10MM 92015 92015-1850 1
NUT 92015A 92015-1851 2
BEARING-BALL,#6003 92045 92045-1248 1
BEARING-BALL,#6002NC 92045A 92045-1249 1
SEAL-OIL 92049 92049-1390 1
RING-O 92055 92055-1496 1
SPRING,BRUSH 92081 92081-1759 2
BOLT-FLANGED 130 130Z0870 2
