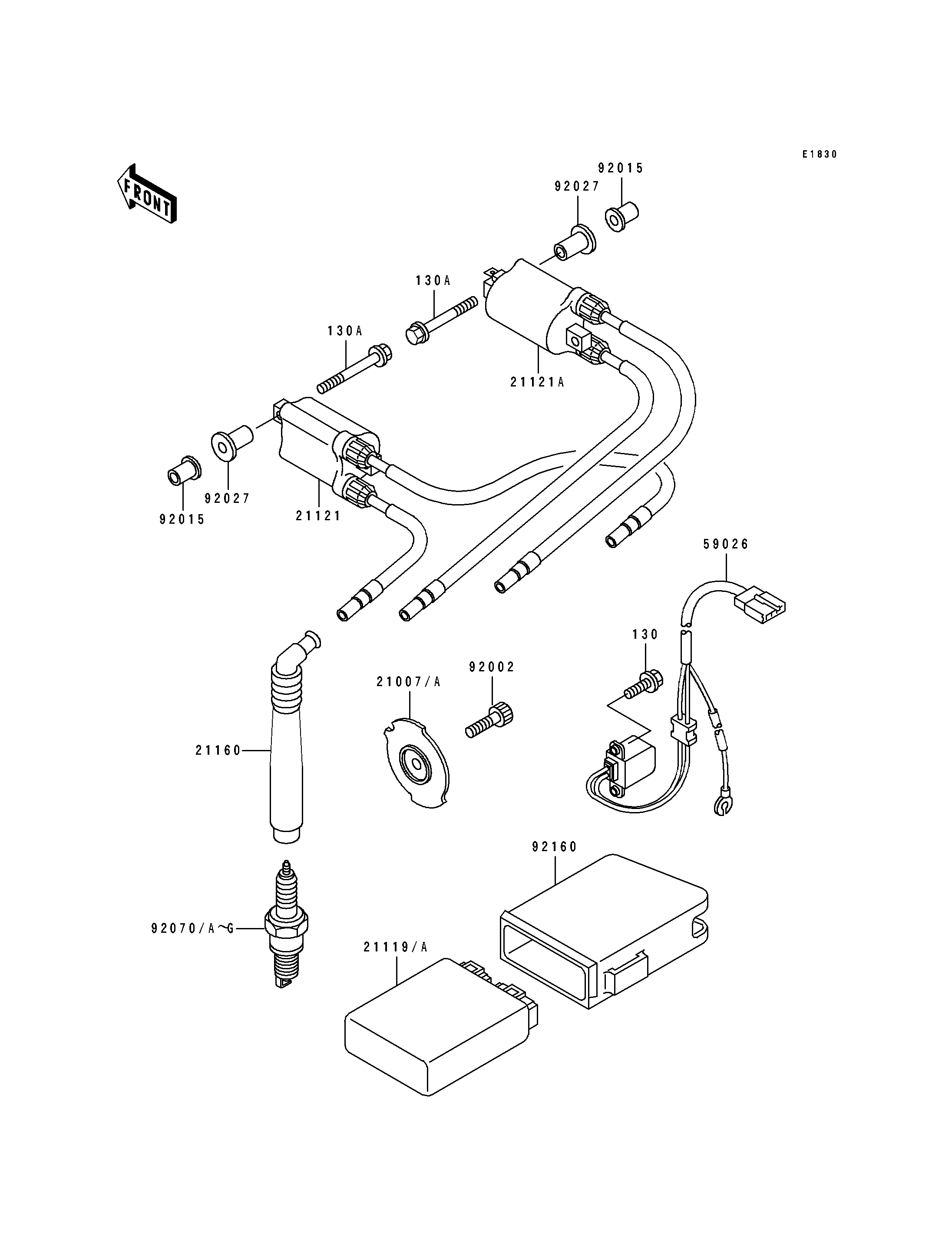

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ROTOR,PULSING | 21007 | 21007-1222 | 1 | CNUS | |
| ROTOR,PULSING | 21007A | 21007-1227 | 1 | CA | |
| IGNITER | 21119 | 21119-1314 | 1 | CNUS | |
| IGNITER | 21119A | 21119-1325 | 1 | CA | |
| COIL-IGNITION,#1 | 21121 | 21121-1201 | 1 | ||
| COIL-IGNITION,#2 | 21121A | 21121-1202 | 1 | ||
| CAP-ASSY-PLUG | 21160 | 21160-1083 | 4 | ||
| COIL-PULSING | 59026 | 59026-1104 | 1 | ||
| BOLT,SOCKET,8X20 | 92002 | 92002-1178 | 1 | ||
| NUT | 92015 | 92015-1700 | 4 | ||
| COLLAR,L=21 | 92027 | 92027-195 | 4 | ||
| PLUG-SPARK,C9E(NGK) | 92070 | 92070-1142 | 4 | CAUS | |
| PLUG-SPARK,CR9E(NGK) | 92070A | 92070-1143 | 4 | CN | |
| PLUG-SPARK,U27ES-N(ND) | 92070B | 4 | CAUS | (LOCAL PROCUREMENT ITEM) | |
| PLUG-SPARK,U27ESR-N(ND) | 92070C | 4 | CN | ||
| PLUG-SPARK,C8E(NGK) | 92070D | 92070-1168 | 4 | CAUS | |
| PLUG-SPARK,CR8E(NGK) | 92070E | 92070-1169 | 4 | CN | |
| PLUG-SPARK,U24ES-N(ND) | 92070F | 4 | CAUS | (OPTION) | |
| PLUG-SPARK,U24ESR-N(ND) | 92070G | 4 | CN | ||
| DAMPER,IGNITER | 92160 | 92160-1181 | 1 | ||
| BOLT-FLANGED | 130 | 130G0512 | 2 | ||
| BOLT-FLANGED,6X45 | 130A | 130G0645 | 4 |
| ROTOR,PULSING | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| ROTOR,PULSING | |
| REF # | 21007A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| IGNITER | |
| REF # | 21119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| IGNITER | |
| REF # | 21119A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| COIL-IGNITION,#1 | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION,#2 | |
| REF # | 21121A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PLUG | |
| REF # | 21160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COIL-PULSING | |
| REF # | 59026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X20 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=21 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,C9E(NGK) | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | |
| PLUG-SPARK,CR9E(NGK) | |
| REF # | 92070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| PLUG-SPARK,U27ES-N(ND) | |
| REF # | 92070B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | (LOCAL PROCUREMENT ITEM) |
| PLUG-SPARK,U27ESR-N(ND) | |
| REF # | 92070C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| PLUG-SPARK,C8E(NGK) | |
| REF # | 92070D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | |
| PLUG-SPARK,CR8E(NGK) | |
| REF # | 92070E |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| PLUG-SPARK,U24ES-N(ND) | |
| REF # | 92070F |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | (OPTION) |
| PLUG-SPARK,U24ESR-N(ND) | |
| REF # | 92070G |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| DAMPER,IGNITER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X45 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
