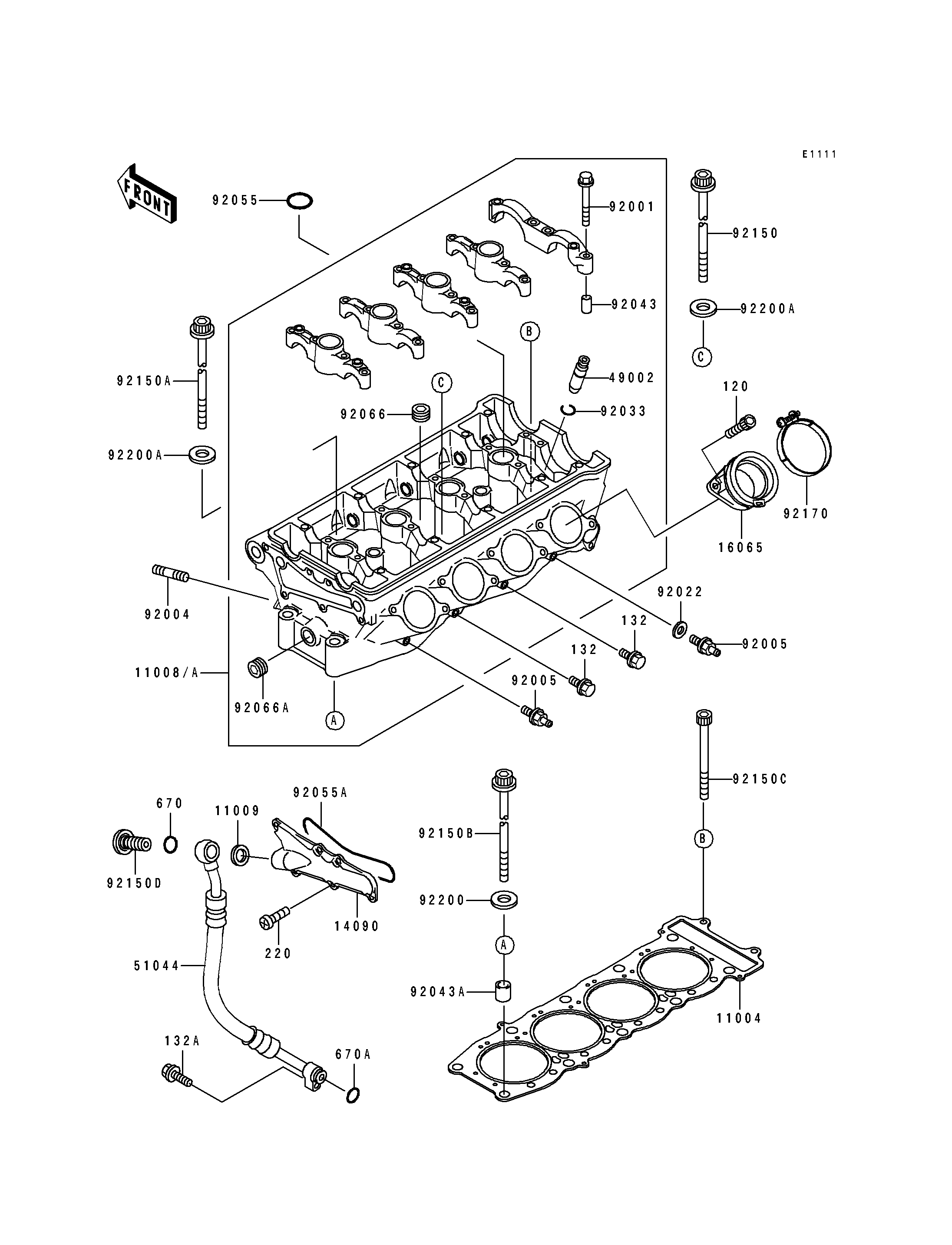

1991 Ninja® ZX™-7R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1223 1
HEAD-COMP-CYLINDER 11008 11008-1262 1 CAUS
HEAD-COMP-CYLINDER 11008A 11008-1263 1 CN
GASKET,14X19.5X1.4 11009 11009-1461 1
COVER,HEAD,LH 14090 14024-1997 1
HOLDER-CARBURETOR 16065 16065-1239 4
GUIDE-VALVE 49002 49002-1116 AR
TUBE-ASSY,OIL 51044 51044-1135 1
BOLT,FLANGED,6X38 92001 92001-1105 20
STUD,8X30,BLACK 92004 92004-1101 8
FITTING 92005 92005-1221 4 CA
FITTING 92005 92005-1221 2 US
WASHER,6.2X11X1 92022 92022-304 4
RING-SNAP 92033 92033-1247 16
PIN,6.2X8X14 92043 92043-1263 10
PIN,10.1X12X14 92043A 92043-4009 2
RING-O,25.5X2 92055 92055-1403 4
RING-O 92055A 92055-1490 1
PLUG 92066 92066-1253 4
PLUG 92066A 92066-1262 1
BOLT,10X173 92150 92150-1460 4
BOLT,10X155 92150A 92150-1461 4
BOLT,10X137 92150B 92150-1462 2
BOLT,6X100 92150C 92150-1463 2
BOLT,HEAD,14MM 92150D 92150-1543 1
CLAMP 92170 92170-1161 4
WASHER,10.5X19X2.3 92200 92200-1042 2
WASHER,10.5X20X4.5 92200A 92200-1086 8
BOLT-SOCKET,6X18 120 120P0618 8
BOLT-FLANGED-SMALL 132 132G0610 4 CN
BOLT-FLANGED-SMALL 132 132G0610 2 US
BOLT-FLANGED-SMALL 132A 132J0625 1
SCREW-PAN-CROS,6X14 220 220B0614 6
O RING,15MM 670 670B2015 1
O RING 670A 670D2010 1
