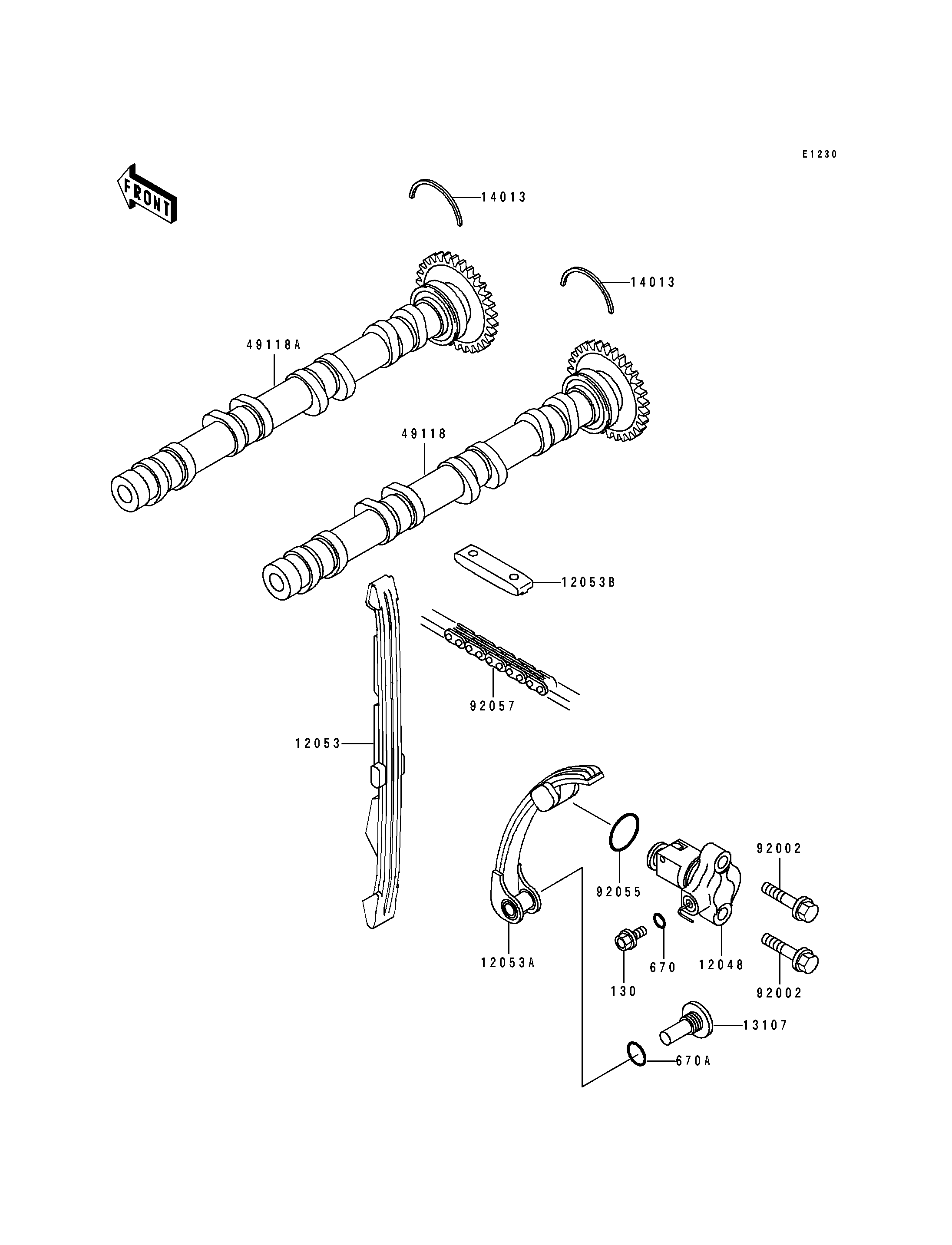

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TENSIONER-ASSY 12048 12048-1112 1
GUIDE-CHAIN 12053 12053-1282 1
GUIDE-CHAIN 12053A 12053-1283 1
GUIDE-CHAIN 12053B 12053-1286 1
SHAFT 13107 13107-1280 1
RING-POSITION,CAMSHAFT 14013 14013-1057 2
CAMSHAFT-COMP,INTAKE 49118 49118-1083 1
CAMSHAFT-COMP,EXHAUST 49118A 49118-1084 1
BOLT,6X25 92002 92002-1612 2
RING-O 92055 92055-086 1
CHAIN,CAMSHAFT,BF05MA 92057 92057-1323 1
BOLT-FLANGED 130 130G0508 1
O RING,6MM 670 670B1506 1
O RING,14MM 670A 670D2014 1
