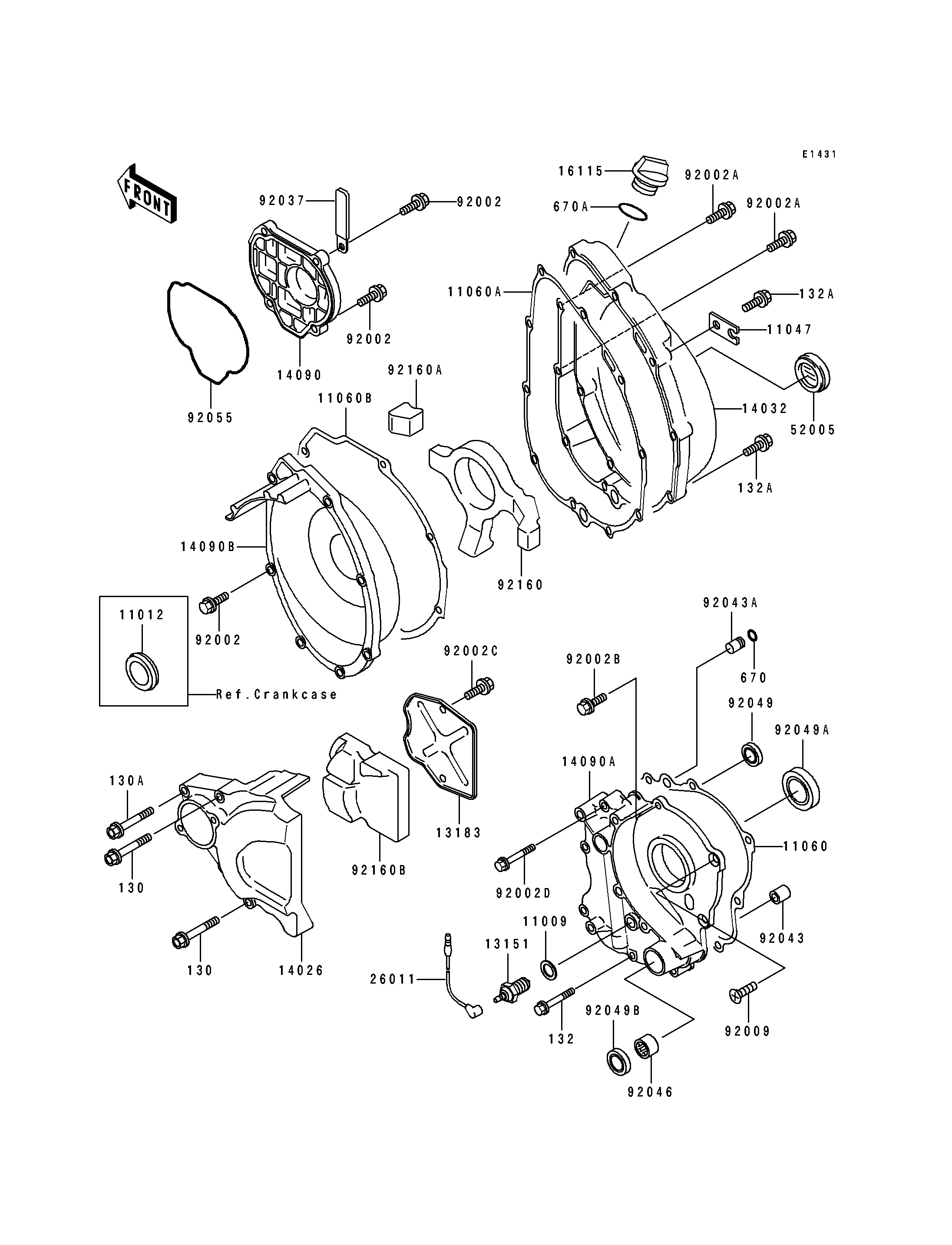

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,10.5X16X1,DRAIN PLUG | 11009 | 92065-058 | 1 | ||
CAP,LH | 11012 | 11012-1770 | 1 | ||
BRACKET,THROTTLE ADJUST SCREW | 11047 | 11047-1518 | 1 | ||
GASKET,TRANSMISSION COVER | 11060 | 11060-1079 | 1 | ||
GASKET,CLUTCH COVER | 11060A | 11060-1080 | 1 | ||
GASKET,BREATHER COVER | 11060B | 11060-1212 | 1 | ||
SWITCH-COMP,NEUTRAL | 13151 | 13151-1007 | 1 | ||
PLATE,CHAIN COVER | 13183 | 13183-1717 | 1 | ||
COVER-CHAIN | 14026 | 14026-1166 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1300 | 1 | ||
COVER,PULSING | 14090 | 14024-1998 | 1 | ||
COVER,TRANSMISSION | 14090A | 14090-1051 | 1 | ||
COVER,BREATHER | 14090B | 14090-1052 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1053 | 1 | ||
WIRE-LEAD | 26011 | 26011-1510 | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-1057 | 1 | ||
BOLT,6X20 | 92002 | 92002-1343 | 11 | ||
BOLT,6X25 | 92002A | 92002-1344 | 2 | ||
BOLT,6X16 | 92002B | 92002-1439 | 1 | ||
BOLT,6X10 | 92002C | 92002-1449 | 2 | ||
BOLT,6X30 | 92002D | 92002-1622 | 3 | ||
SCREW,6X16 | 92009 | 92009-1360 | 2 | ||
CLAMP,WIRING HARNESS | 92037 | 92037-1877 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92043 | 92042-007 | 1 | ||
PIN | 92043A | 92043-1456 | 1 | ||
BEARING-NEEDLE,HK1312 | 92046 | 92046-1148 | 1 | ||
SEAL-OIL,SD-8187 | 92049 | 92049-1017 | 1 | ||
SEAL-OIL,TC32488 | 92049A | 92049-1361 | 1 | ||
SEAL-OIL,TB13225.5 | 92049B | 92051-005 | 1 | ||
RING-O,PULSING COVER | 92055 | 92055-1494 | 1 | ||
DAMPER,SOUND ARRESTER | 92160 | 92160-1260 | 1 | ||
DAMPER,SOUND ARRESTER | 92160A | 92160-1282 | 1 | ||
DAMPER,SOUND ARRESTER | 92160B | 92160-1289 | 1 | ||
BOLT-FLANGED,6X35 | 130 | 130J0635 | 2 | ||
BOLT-FLANGED,6X45,BLACK | 130A | 130J0645 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132E0630 | 2 | ||
BOLT-FLANGED-SMALL | 132A | 132J0630 | 8 | ||
O RING,5MM | 670 | 670B1505 | 1 | ||
O RING,20MM | 670A | 670B2020 | 1 |
