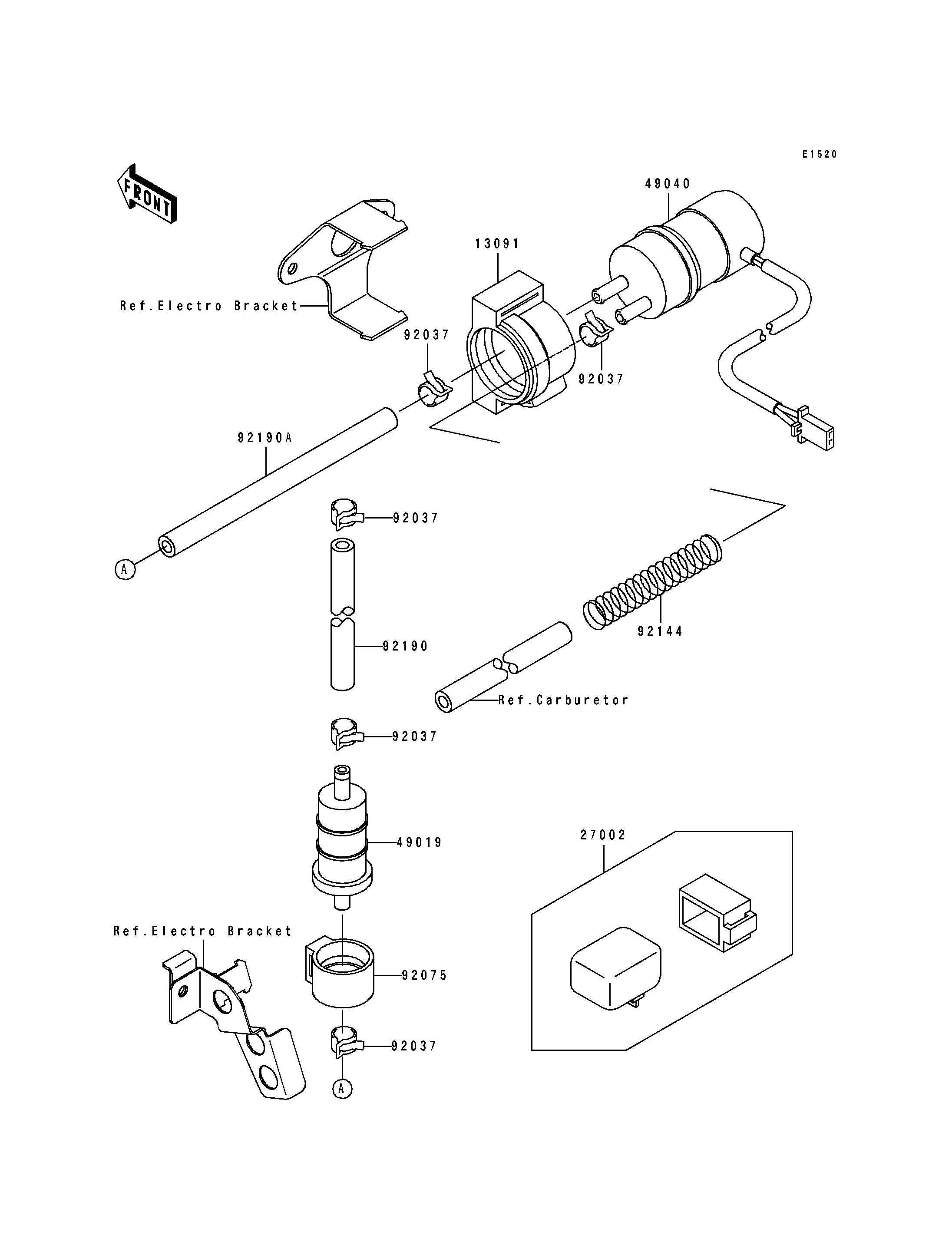

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,FUEL PUMP 13091 13091-1738 1
RELAY-ASSY 27002 27002-1065 1
FILTER-FUEL 49019 49019-1055 1
PUMP-FUEL 49040 49040-1057 1
CLAMP 92037 92037-1181 5
DAMPER,FUEL FILTER 92075 92075-1853 1
SPRING,HOSE PROTECTOR 92144 92144-1347 1
TUBE,7.5X13.5X95 92190 92190-1202 1
TUBE,7.5X13.5X145 92190A 92190-1229 1
