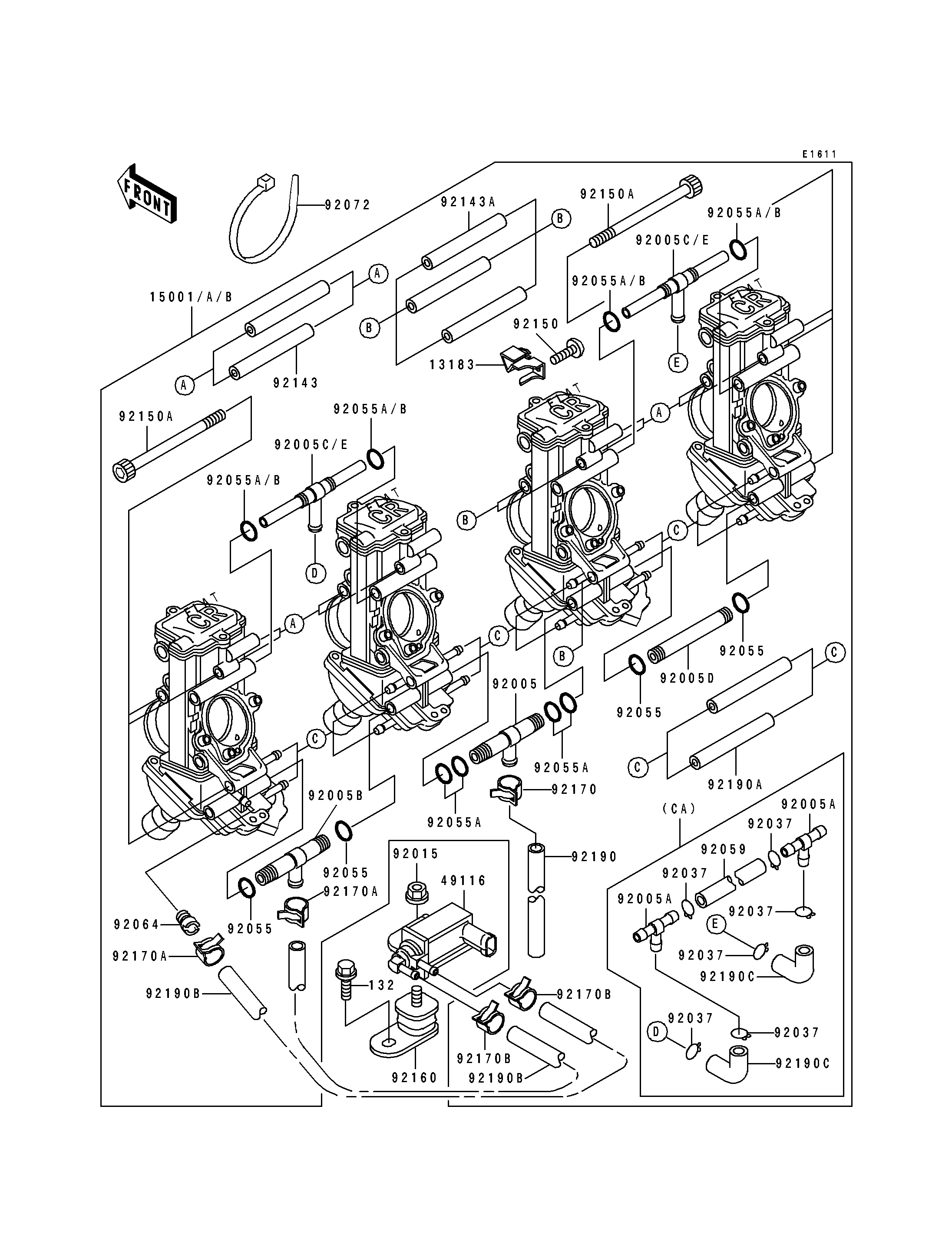

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PLATE,STARTER CABLE | 13183 | 13183-1744 | 1 | ||
CARBURETOR-ASSY | 15001 | 15001-1708 | 1 | US | |
CARBURETOR-ASSY | 15001A | 15001-1726 | 1 | CN | |
CARBURETOR-ASSY | 15001B | 15001-1730 | 1 | CA | |
VALVE-ASSY | 49116 | 49116-1086 | 1 | ||
FITTING,FUEL,T-TYPE | 92005 | 92005-1108 | 1 | ||
FITTING,T-TYPE | 92005A | 92005-1119 | 2 | CA | |
FITTING,T-TYPE | 92005B | 92005-1179 | 1 | ||
FITTING,T TYPE | 92005C | 92005-1204 | 2 | CNUS | |
FITTING | 92005D | 92005-1223 | 1 | ||
FITTING | 92005E | 92005-1224 | 2 | CA | |
NUT,6MM | 92015 | 92015-1365 | 1 | ||
CLAMP,TUBE | 92037 | 92037-1194 | 6 | CA | |
RING-O | 92055 | 92055-1004 | 4 | ||
RING-O,FUEL FITTING | 92055A | 92055-1223 | 8 | CA | |
RING-O,FUEL FITTING | 92055A | 92055-1223 | 4 | CNUS | |
RING-O | 92055B | 92055-1484 | 4 | CNUS | |
TUBE,7X11X140 | 92059 | 92059-1688 | 1 | CA | |
JET-PILOT,#75 | 92064 | 92064-1169 | 1 | ||
BAND,L=185 | 92072 | 92072-1195 | 2 | CAUS | |
BAND,L=185 | 92072 | 92072-1195 | 1 | CN | |
COLLAR | 92143 | 92143-1539 | 4 | ||
COLLAR | 92143A | 92143-1540 | 3 | ||
BOLT,SOCKET,4X8 | 92150 | 92150-1440 | 1 | ||
BOLT,SOCKET,5X100 | 92150A | 92150-1551 | 6 | ||
DAMPER,VALVE | 92160 | 92160-1238 | 1 | ||
CLAMP,TUBE | 92170 | 92170-1051 | 1 | ||
CLAMP | 92170A | 92170-1205 | 2 | ||
CLAMP | 92170B | 92170-1281 | 2 | ||
TUBE,7.3X12.5X380 | 92190 | 92190-1063 | 1 | ||
TUBE,ACCELERATOR,L=50 | 92190A | 92190-1257 | 6 | ||
TUBE,4.5X8.5X250 | 92190B | 92190-1258 | 2 | ||
TUBE,7X11X46 | 92190C | 92190-1259 | 2 | CA | |
BOLT-FLANGED-SMALL | 132 | 132G0616 | 1 |
PLATE,STARTER CABLE | |
REF # | 13183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR-ASSY | |
REF # | 15001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | US |
REMARKS |
CARBURETOR-ASSY | |
REF # | 15001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
CARBURETOR-ASSY | |
REF # | 15001B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
VALVE-ASSY | |
REF # | 49116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING,FUEL,T-TYPE | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING,T-TYPE | |
REF # | 92005A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | CA |
REMARKS |
FITTING,T-TYPE | |
REF # | 92005B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING,T TYPE | |
REF # | 92005C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | CNUS |
REMARKS |
FITTING | |
REF # | 92005D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005E |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | CA |
REMARKS |
NUT,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | CA |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,FUEL FITTING | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | CA |
REMARKS |
RING-O,FUEL FITTING | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | CNUS |
REMARKS |
RING-O | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | CNUS |
REMARKS |
TUBE,7X11X140 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
JET-PILOT,#75 | |
REF # | 92064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=185 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | CAUS |
REMARKS |
BAND,L=185 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,4X8 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,5X100 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
DAMPER,VALVE | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,7.3X12.5X380 | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,ACCELERATOR,L=50 | |
REF # | 92190A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
TUBE,4.5X8.5X250 | |
REF # | 92190B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,7X11X46 | |
REF # | 92190C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | CA |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
