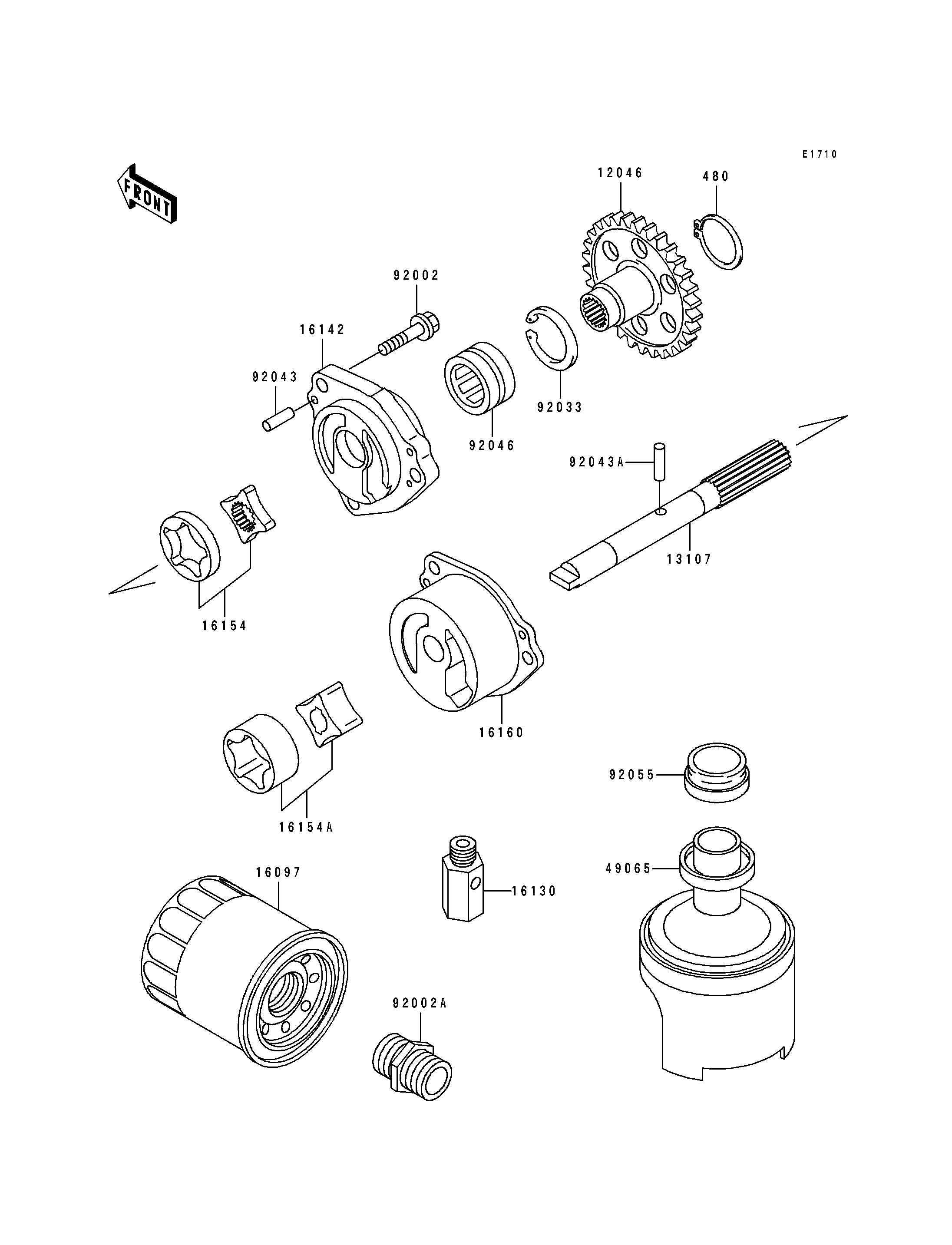

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,OIL PUMP,30T 12046 12046-1123 1
SHAFT,OIL PUMP 13107 13107-1278 1
FILTER-ASSY-OIL 16097 16097-1063 1
VALVE-ASSY-RELIEF 16130 16130-1001 2
COVER-PUMP 16142 16142-1110 1
ROTOR-PUMP,OIL COOLER 16154 16154-1090 1
ROTOR-PUMP,ENGINE 16154A 16154-1093 1
BODY,OIL PUMP 16160 16160-1173 1
FILTER-OIL 49065 49065-1068 1
BOLT,6X25 92002 92002-1582 3
BOLT,OIL FILTER 92002A 92002-1899 1
RING-SNAP 92033 92033-1277 1
PIN,DOWEL,4X15.8 92043 92042-014 1
PIN,17.9X5.0 92043A 92043-1444 1
BEARING-NEEDLE,RNA4903 92046 92046-1109 1
RING-O,OIL FILTER 92055 92055-1503 1
CIRCLIP-TYPE-C,15MM 480 480J1500 1
