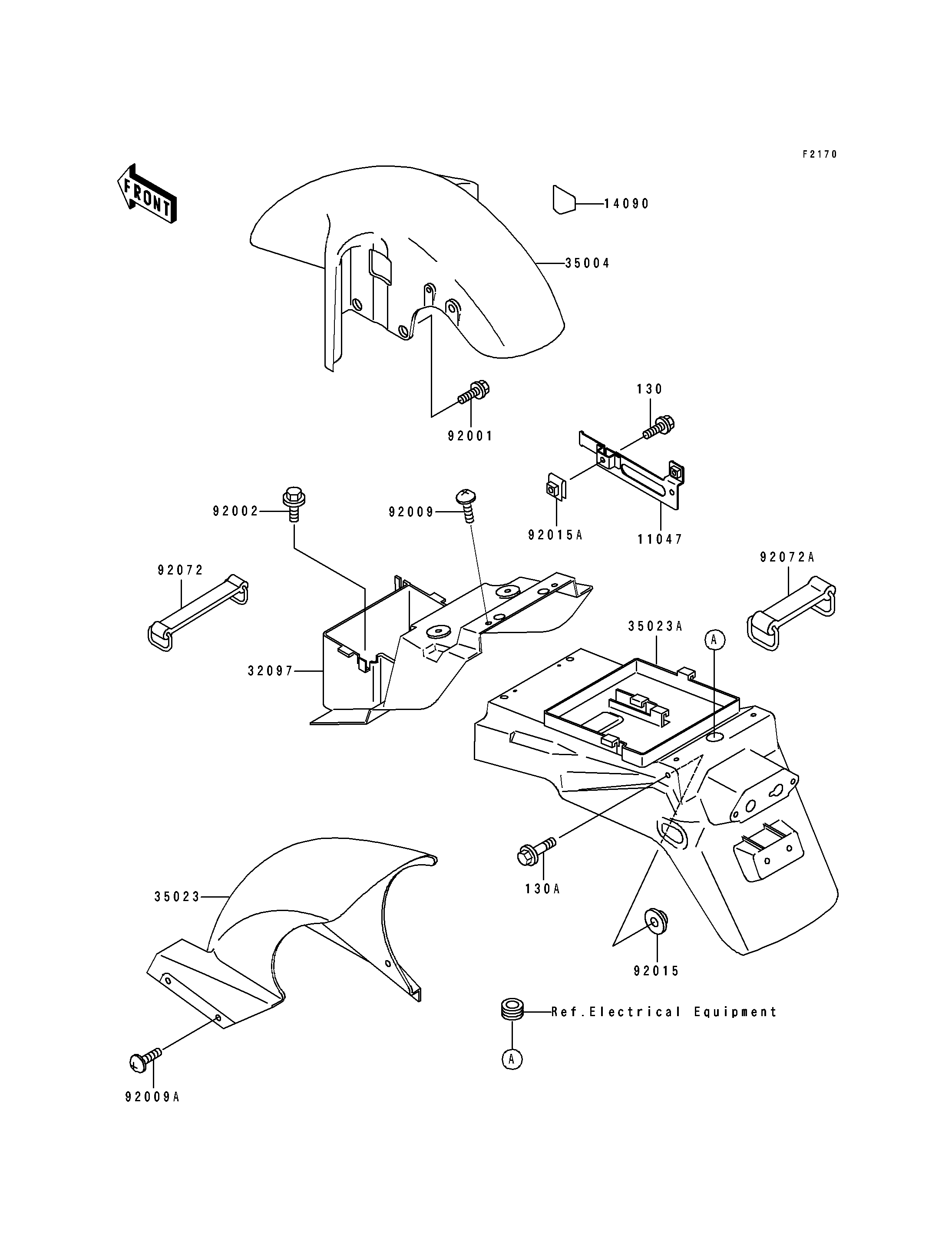

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ELECTRIC BASE 11047 11047-1272 1
COVER,FRONT FENDER 14090 14090-1151 1
CASE-BATTERY 32097 32097-1140 1
FENDER-FRONT,L.GREEN 35004 35004-1281-7F 1
FENDER-REAR,FR 35023 35023-1309 1
FENDER-REAR,RR 35023A 35023-1314 1
BOLT,W/SP,6X16 92001 92001-1763 4
BOLT,6X12 92002 92002-1884 2
SCREW,6X20 92009 92009-1289 2
SCREW,6X10 92009A 92009-1402 5
NUT,6MM 92015 92015-1321 2
NUT,CLAMP,6MM 92015A 92015-1531 2
BAND,L=142.1 92072 92072-006 1
BAND,L=50 92072A 92072-066 1
BOLT-FLANGED,6X14,BLACK 130 130J0614 2
BOLT-FLANGED,6X40,BLACK 130A 130J0640 2
