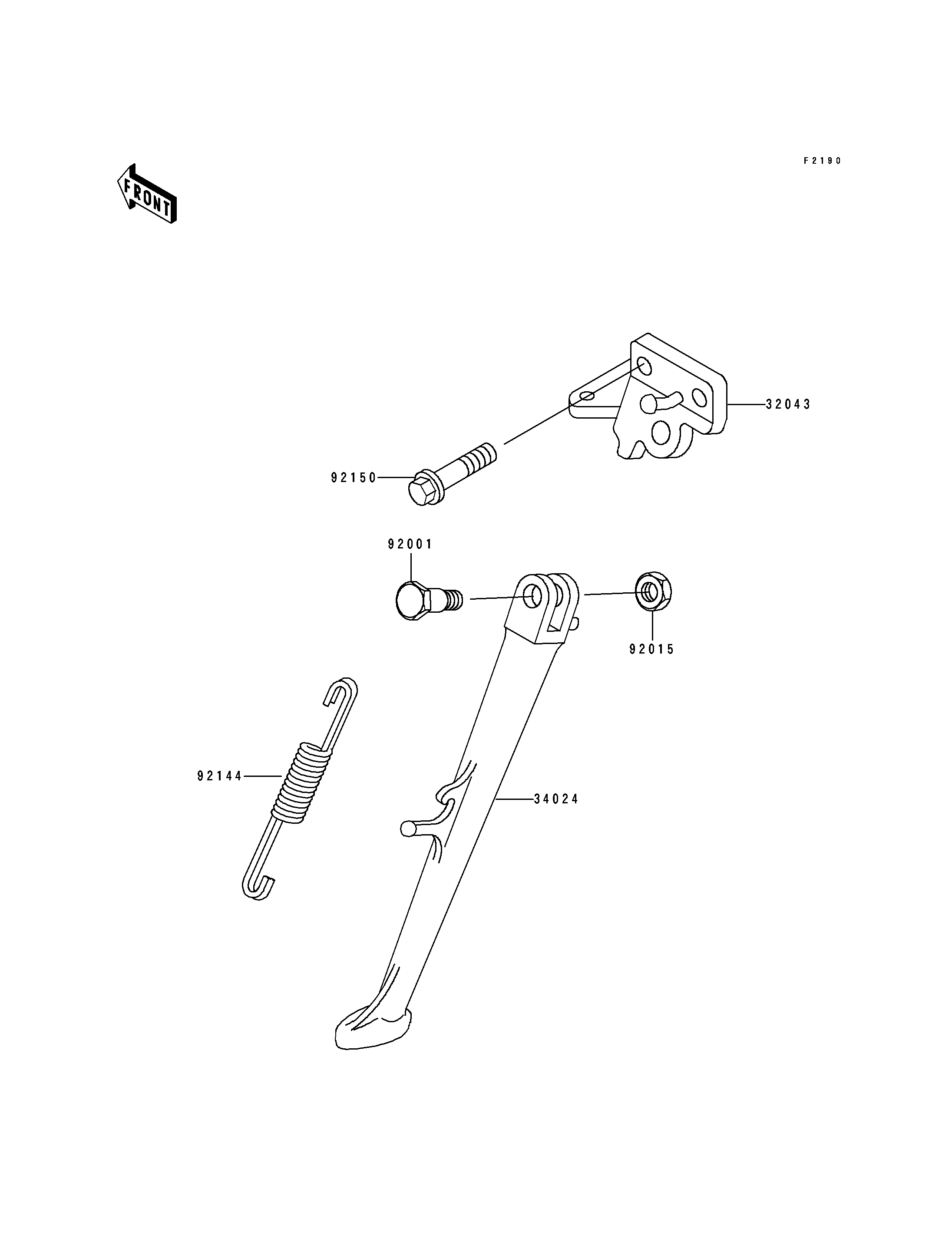

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE 32043 32043-1342 1
STAND-SIDE 34024 34024-1276 1
BOLT,SIDE STAND 92001 92001-1788 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
SPRING,SIDE STAND 92144 92144-1127 1
BOLT,FLANGED,10X35 92150 92150-1353 2
