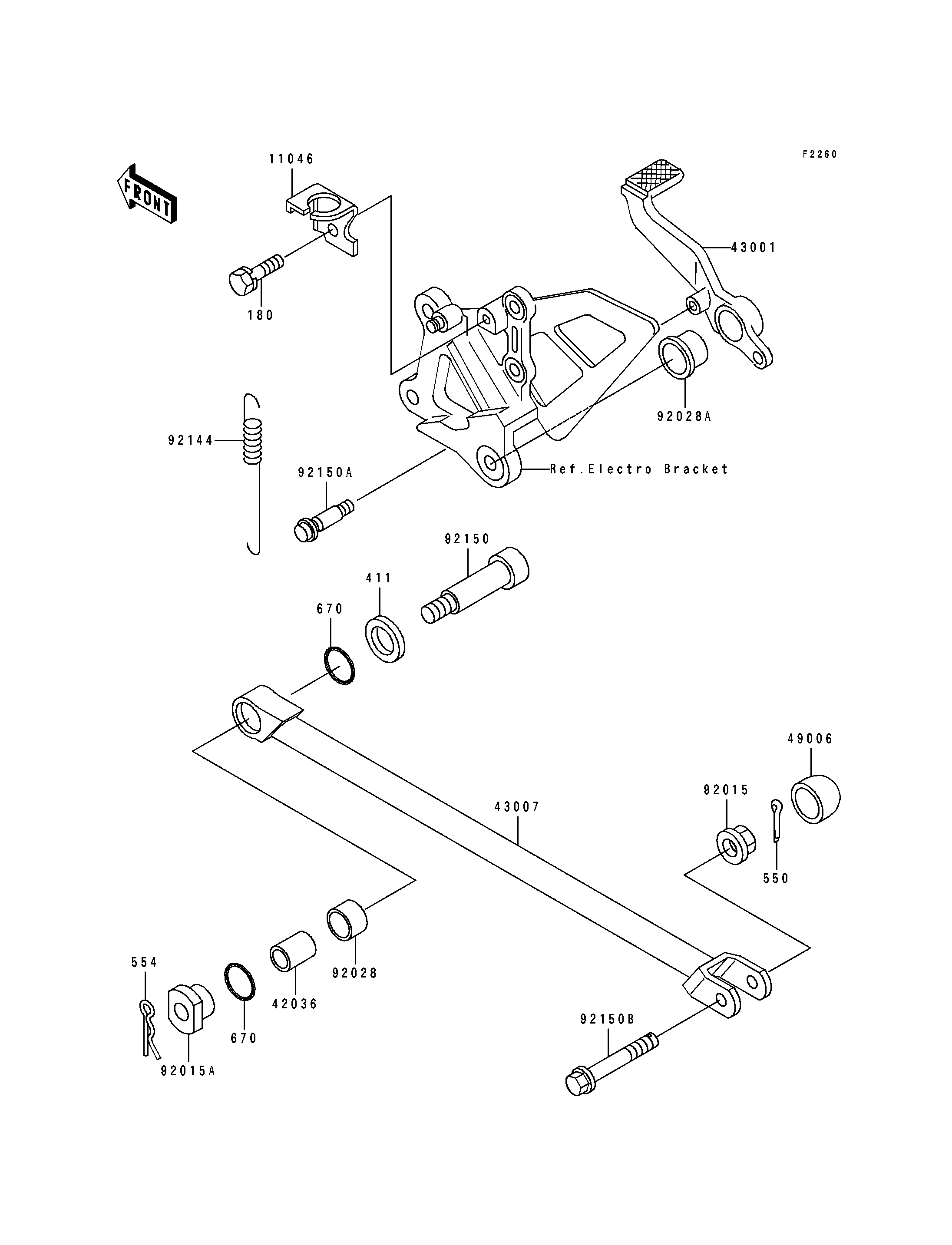

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REAR BRAKE SWITCH 11046 11046-1252 1
SLEEVE,10.1X16X20 42036 42036-1242 1
LEVER-BRAKE,PEDAL 43001 43001-1274 1
ROD-TORQUE,SILVER NO.30 43007 43007-1158-KF 1
BOOT 49006 49006-1218 1
NUT,8MM 92015 92015-1432 1
NUT,8MM 92015A 92015-1747 1
BUSHING 92028 92028-1468 1
BUSHING 92028A 92028-1576 1
SPRING,BRAKE PEDAL RETURN 92144 92144-1421 1
BOLT,SOCKET,8X61 92150 92150-1167 1
BOLT 92150A 92150-1439 1
BOLT,FLANGED,8X47 92150B 92150-1539 1
BOLT-UPSET-WS 180 180H0614 1
WASHER-PLAIN,10MM 411 411D1000 1
PIN-COTTER,2.0X15 550 550D2015 1
PIN-SNAP,8MM 554 554A0800 1
O RING,16MM 670 670B2016 2
