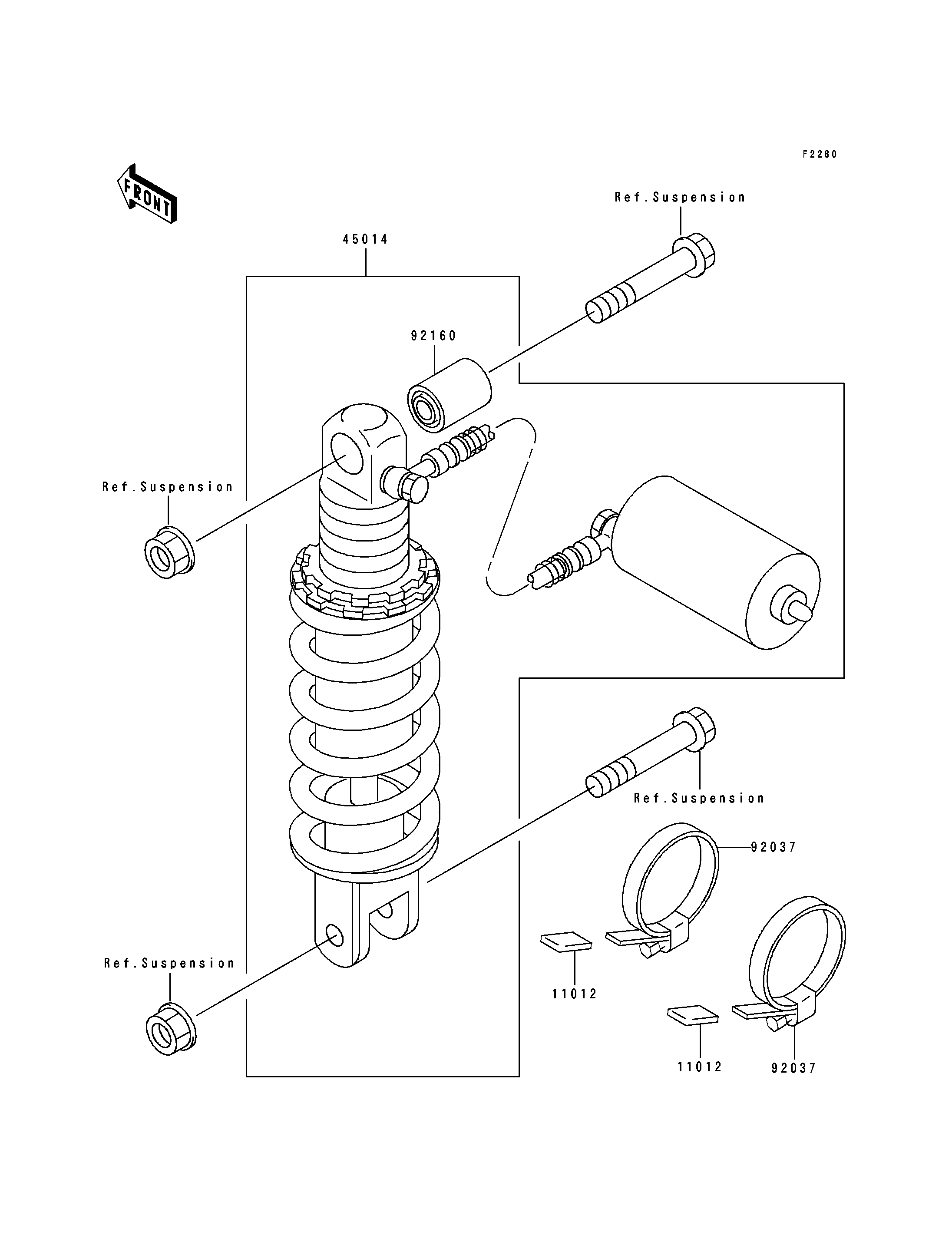

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1725 2
SHOCKABSORBER 45014 45014-1502 1
CLAMP,RESERVE TANK 92037 92037-1586 2
DAMPER,SHOCKABSORBER 92160 92160-1161 1
