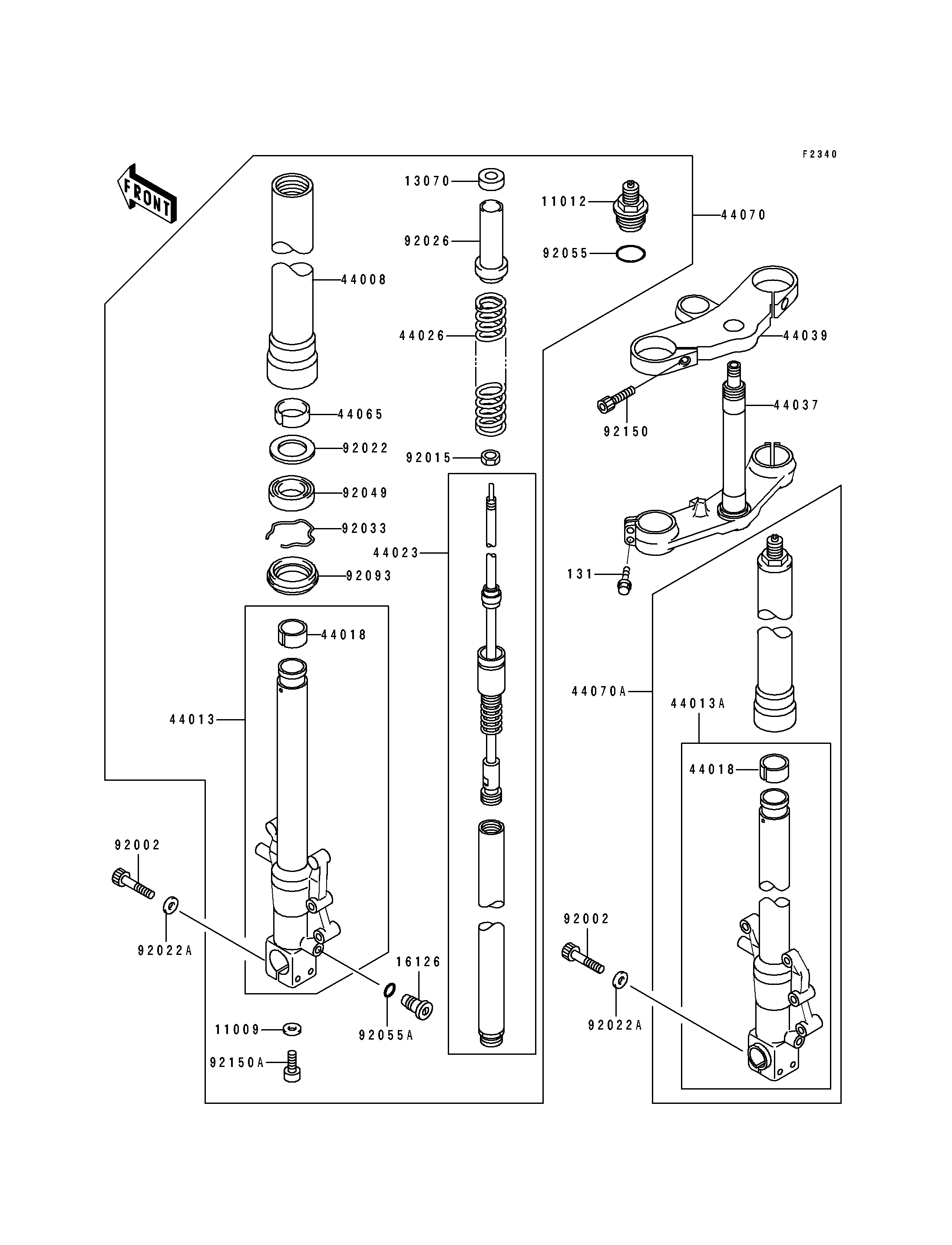

1991 Ninja® ZX™-7R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
CAP,FORK TOP 11012 11012-1791 2
GUIDE,FORK 13070 13070-1236 2
VALVE,FORK 16126 16126-1261 2
PIPE-FORK OUTER,BROWN 44008 44008-1017-JS 2
PIPE-FORK INNER,LH,SILVER 44013 44013-1356-KF 1
PIPE-FORK INNER,RH,SILVER 44013A 44013-1357-KF 1
PISTON-FORK 44018 44018-1054 2
CYLINDER-COMP-FORK 44023 44023-1079 2
SPRING-FRONT FORK 44026 44026-1500 2
HOLDER-FORK UNDER 44037 44037-1295 1
HOLDER-FORK UPPER 44039 44039-1222 1
BUSHING-FRONT FORK,FORK OUTER 44065 44065-1096 2
DAMPER-ASSY,FORK,LH,SILVER 44070 44070-1130-KF 1
DAMPER-ASSY,FORK,RH,SILVER 44070A 44070-1131-KF 1
BOLT,SOCKET,8X45 92002 92002-1847 4
NUT 92015 92015-1795 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
WASHER 92022A 92022-1598 4
SPACER,FORK 92026 92026-1410 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1347 2
RING-O 92055 92055-1115 2
RING-O,ANTI-DIVE UNIT 92055A 92055-1201 2
SEAL,FORK OUTER TUBE 92093 92093-1306 2
BOLT,SOCKET,8X25 92150 92150-1172 2
BOLT,12X22 92150A 92150-1398 2
BOLT-FLANGED,8X40 131 131G0840 4
