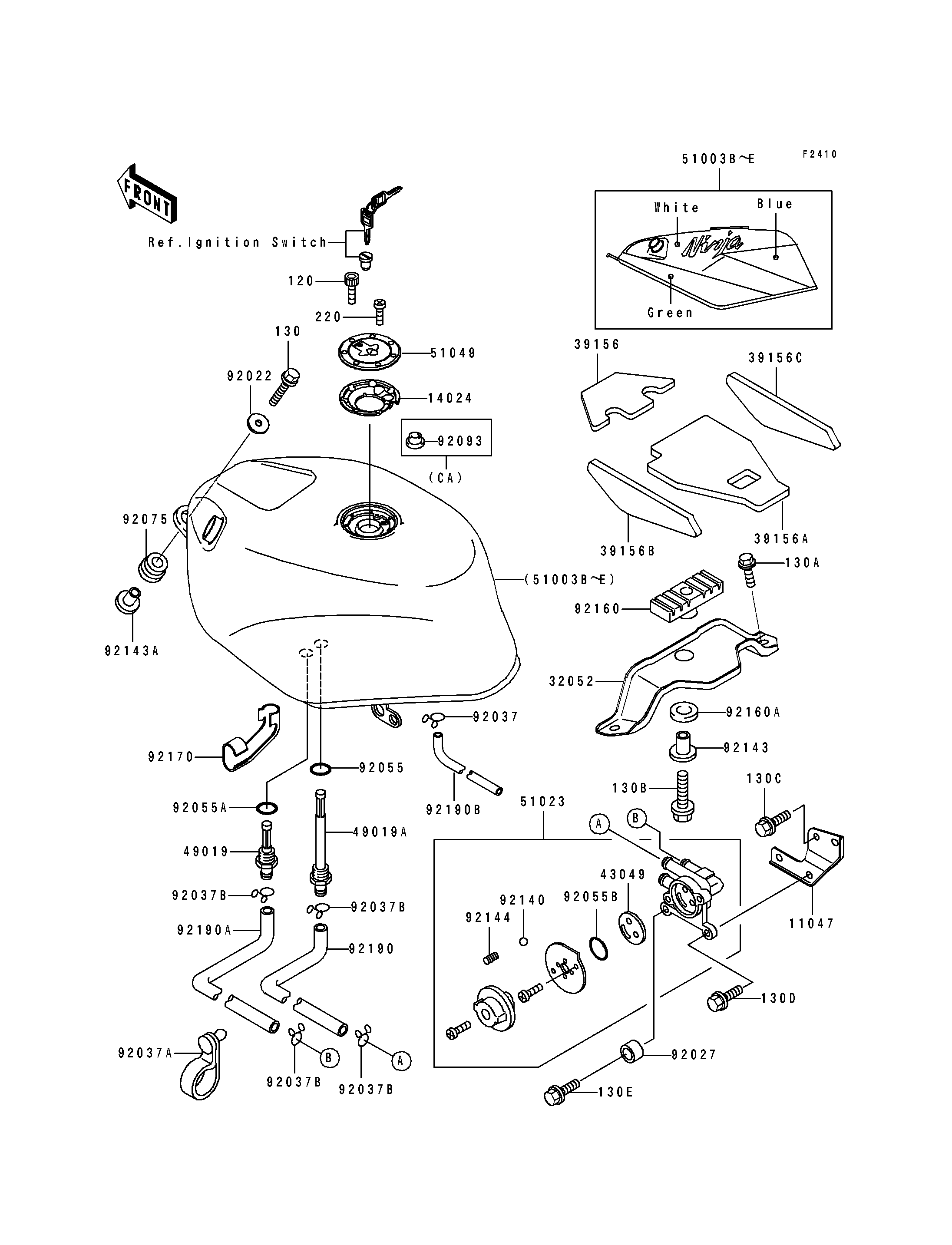

1991 Ninja® ZX™-7R - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TAP 11047 11047-1268 1
COVER,TANK CAP 14024 14025-1913 1
BRACKET-TANK,RR 32052 32052-1323 1
PAD,FUEL TANK,FR 39156 39156-1248 1
PAD,FUEL TANK,CNT 39156A 39156-1249 1
PAD,FUEL TANK,SIDE,LH 39156B 39156-1250 1
PAD,FUEL TANK,SIDE,RH 39156C 39156-1251 1
PACKING,TAP VALVE 43049 43049-1066 1
FILTER-FUEL 49019 49019-1070 1
FILTER-FUEL,"ON" 49019A 49019-1071 1
TANK-COMP-FUEL,GREEN/WHITE/BLU 51003B 51003-5258-KE 1 CN
TANK-COMP-FUEL,GREEN/WHITE/BLU 51003D 51003-5281-KE 1 US
TANK-COMP-FUEL,GREEN/WHITE/BLU 51003E 51003-5282-KE 1 CA
TAP-ASSY,FUEL 51023 51023-1172 1
CAP-TANK,FUEL 51049 51049-1091 1
WASHER,6.5X20X1.6 92022 92022-125 2
COLLAR,6.8X10X6 92027 92027-103 1
CLAMP,TUBE 92037 92037-147 1
CLAMP 92037A 92037-1903 1
CLAMP,TUBE 92037B 92037-1972 4
RING-O,ID=9.5 92055 92055-1386 1
RING-O,11.5X1.5 92055A 92055-1387 1
RING-O,TAP LEVER 92055B 92055-1419 1
DAMPER 92075 92075-112 2
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
BALL,STAINLESS,5/32" 92140 92140-1051 1
COLLAR 92143 92143-1484 1
COLLAR 92143A 92143-1515 2
SPRING,FUEL TAP KNOB 92144 92144-1212 1
DAMPER,FUEL TANK,RR 92160 92160-1271 1
DAMPER,FUEL TANK,RR 92160A 92160-1277 1
CLAMP,TUBE 92170 92170-1282 1
TUBE,FUEL,"ON" 92190 92190-1192 1
TUBE,FUEL,"RES" 92190A 92190-1193 1
TUBE,DRAIN 92190B 92190-1260 1
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,6X30 130 130G0630 2
BOLT-FLANGED,8X20 130A 130H0820 2
BOLT-FLANGED,8X30 130B 130H0830 1
BOLT-FLANGED,6X8 130C 130J0608 2
BOLT-FLANGED,6X16,BLACK 130D 130J0616 1
BOLT-FLANGED,6X25 130E 130J0625 1
SCREW-PAN-CROS 220 220C0508 1
