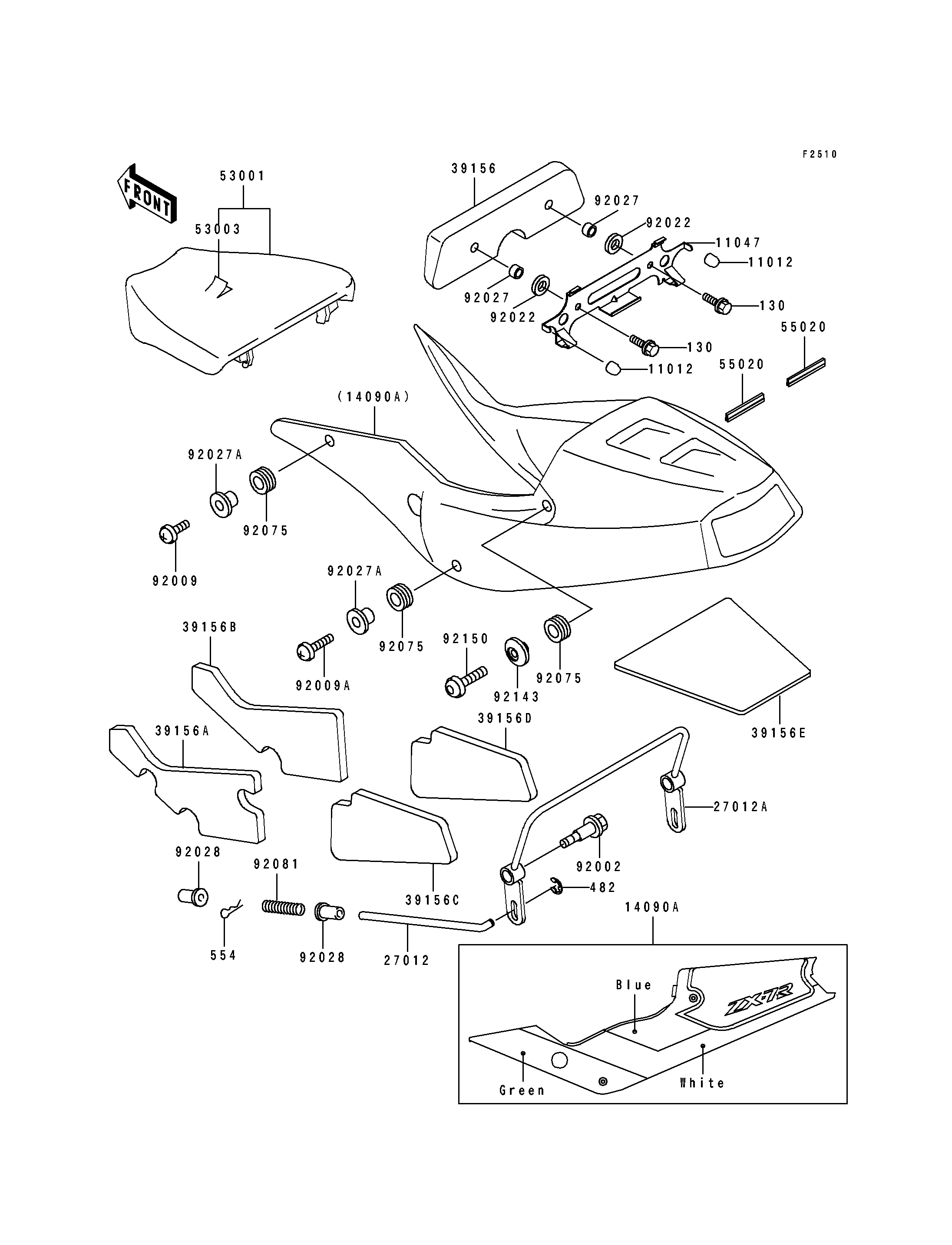

1991 Ninja® ZX™-7R - Seat

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CABLE CLAMP 11012 11012-1438 2
BRACKET,SEAT PAD 11047 11047-1353 1
COVER,SEAT,GREEN/WHITE/BLUE 14090A 14090-5002-KE 1
HOOK,SEAT,FR 27012 27012-1436 2
HOOK,SEAT,RR 27012A 27012-1437 1
PAD,SEAT COVER,BLACK 39156 39156-1228-MA 1
PAD,SIDE COVER,FR,LH 39156A 39156-1252 1
PAD,SIDE COVER,FR,RH 39156B 39156-1253 1
PAD,SIDE COVER,RR,LH 39156C 39156-1254 1
PAD,SIDE COVER,RR,RH 39156D 39156-1255 1
PAD,SIDE COVER,CNT 39156E 39156-1262 1
SEAT-ASSY,FR,BLACK 53001 53001-1627-MA 1
LEATHER,FRONT SEAT,BLACK 53003 53003-1244-MA 1
GUARD,SEAT COVER 55020 55020-1413 2
BOLT,HEAD COVER 92002 92002-1595 2
SCREW,6X14,WHITE 92009 92009-1287 2
SCREW,6X20 92009A 92009-1298 2
WASHER,6.5X20X1.6 92022 92022-125 2
COLLAR,6.8X10X6 92027 92027-103 2
COLLAR 92027A 92027-1166 4
BUSHING 92028 92028-1637 4
DAMPER 92075 92075-1634 6
SPRING 92081 92081-1486 2
COLLAR,WHITE 92143 92143-1273 2
BOLT,SOCKET,6X18 92150 92150-1553 2
BOLT-FLANGED,6X16 130 130H0616 2
CIRCLIP-TYPE-E,5MM 482 482L5000 2
PIN-SNAP 554 554A0600 2
