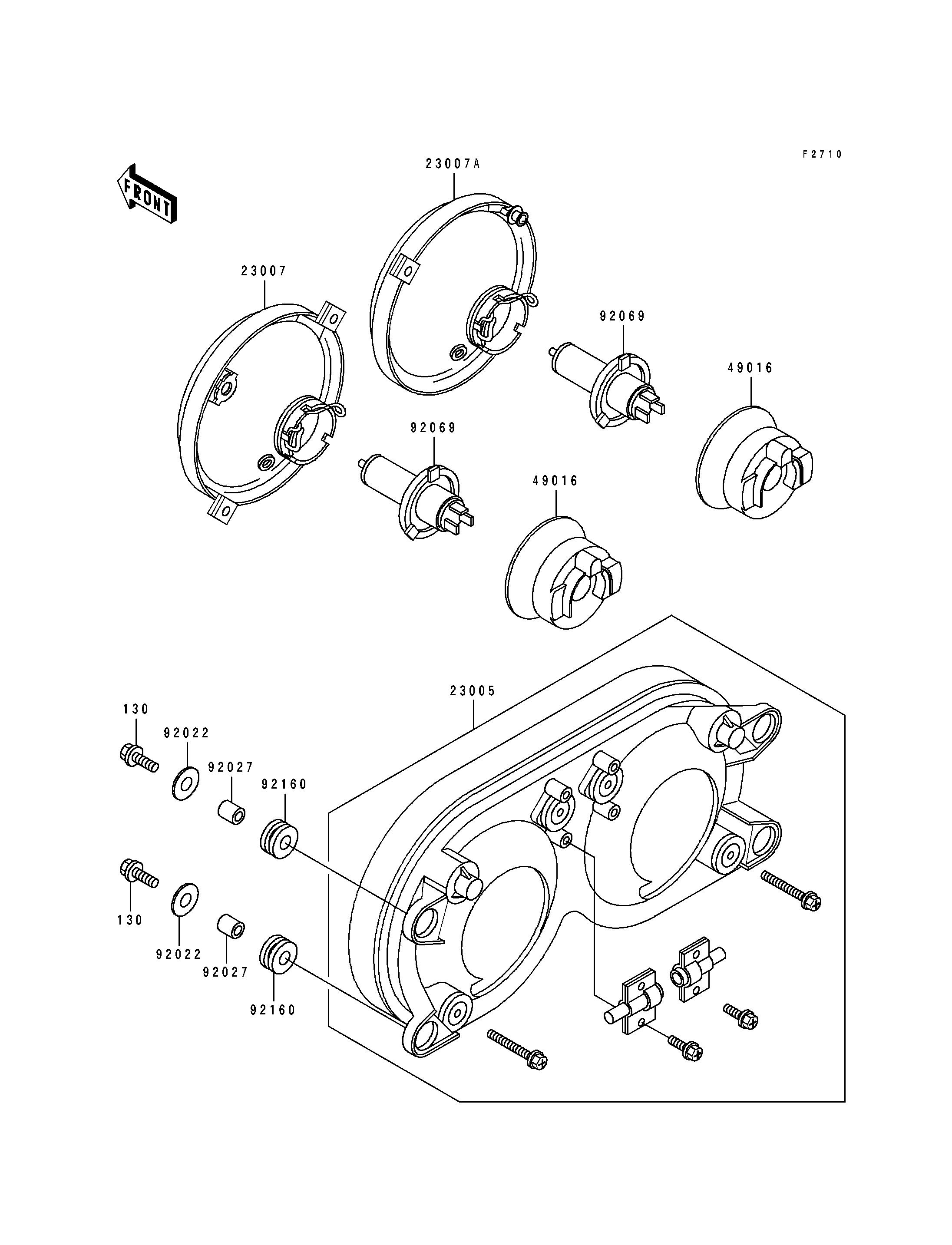

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BODY-COMP-HEAD LAMP 23005 23005-1120 1
LENS-COMP,HEAD LAMP,LH 23007 23007-1203 1
LENS-COMP,HEAD LAMP,RH 23007A 23007-1204 1
COVER-SEAL,HEAD LAMP 49016 49016-1143 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 4
COLLAR,6.8X10X12 92027 92027-162 4
BULB,12V 60/55W,H4 92069 92069-1002 2
DAMPER 92160 92160-1162 4
BOLT-FLANGED 130 130C0625 4
