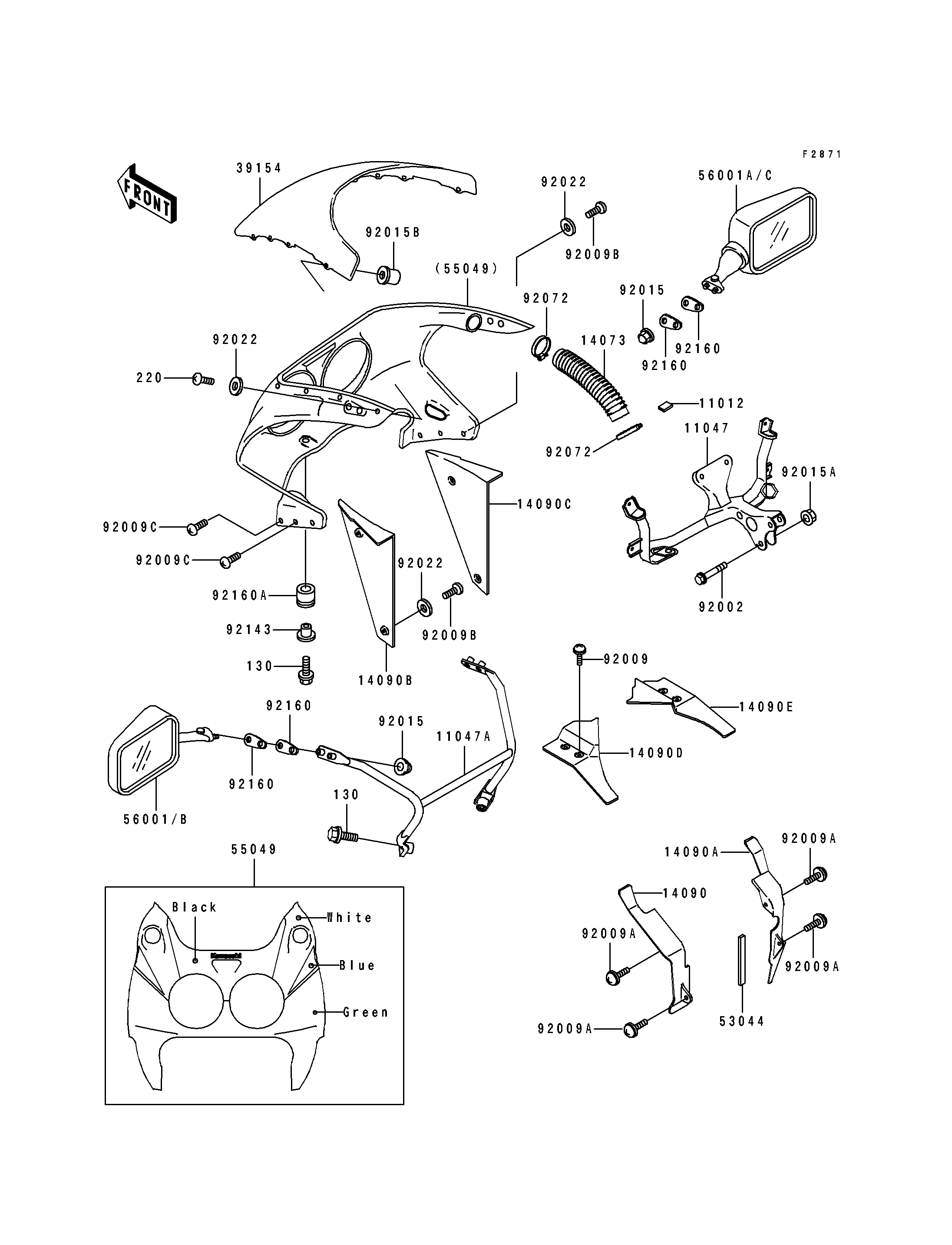

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-1725 | 4 | ||
BRACKET,UPP COWLING | 11047 | 11047-1270 | 1 | ||
BRACKET,MIRROR,BLACK | 11047A | 11047-1271-10 | 1 | ||
DUCT,AIR INTAKE | 14073 | 14073-1463 | 2 | ||
COVER,INNER COWLING,LH | 14090 | 14090-1060 | 1 | ||
COVER,INNER COWLING,RH | 14090A | 14090-1061 | 1 | ||
COVER,RADIATOR,LH | 14090B | 14090-1090 | 1 | ||
COVER,RADIATOR,RH | 14090C | 14090-1091 | 1 | ||
COVER,INNER COWLING,LH | 14090D | 14090-1094 | 1 | ||
COVER,INNER COWLING,RH | 14090E | 14090-1095 | 1 | ||
WINDSHIELD | 39154 | 39154-1116 | 1 | ||
TRIM,L=150 | 53044 | 53044-1248 | 1 | ||
COWLING.,UPP,GREEN/WHITE | 55049 | 55049-5018-CK | 1 | ||
MIRROR-ASSY,LH,P.WHITE | 56001B | 56001-1379-6F | 1 | ||
MIRROR-ASSY,RH,P.WHITE | 56001C | 56001-1380-6F | 1 | ||
BOLT,8X35 | 92002 | 92002-1198 | 2 | ||
SCREW,6X10 | 92009 | 92009-1402 | 4 | ||
SCREW,6X14 | 92009A | 92009-1555 | 4 | ||
SCREW,5X16 | 92009B | 92009-1654 | 6 | ||
SCREW,5X20 | 92009C | 92009-1656 | 4 | ||
NUT,CAP,6MM,BLACK | 92015 | 92015-1170 | 4 | ||
NUT,CAP,8MM,BLACK | 92015A | 92015-1174 | 2 | ||
NUT,WELL,5MM | 92015B | 92015-1757 | 10 | ||
WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 16 | ||
BAND,RESERVOIR TANK | 92072 | 92072-1091 | 4 | ||
COLLAR | 92143 | 92143-1026 | 2 | ||
DAMPER,MIRROR | 92160 | 92160-1089 | 4 | ||
DAMPER | 92160A | 92160-1141 | 2 | ||
BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 4 | ||
SCREW-PAN-CROS | 220 | 220C0516 | 10 |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BRACKET,UPP COWLING | |
REF # | 11047 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,MIRROR,BLACK | |
REF # | 11047A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,AIR INTAKE | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER,INNER COWLING,LH | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,INNER COWLING,RH | |
REF # | 14090A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,RADIATOR,LH | |
REF # | 14090B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,RADIATOR,RH | |
REF # | 14090C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,INNER COWLING,LH | |
REF # | 14090D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,INNER COWLING,RH | |
REF # | 14090E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WINDSHIELD | |
REF # | 39154 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,L=150 | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING.,UPP,GREEN/WHITE | |
REF # | 55049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MIRROR-ASSY,LH,P.WHITE | |
REF # | 56001B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MIRROR-ASSY,RH,P.WHITE | |
REF # | 56001C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X35 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X10 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,6X14 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,5X16 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW,5X20 | |
REF # | 92009C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,CAP,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,CAP,8MM,BLACK | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,WELL,5MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
WASHER,NYLON,5.3X11.5X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
BAND,RESERVOIR TANK | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,MIRROR | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X16,BLACK | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
