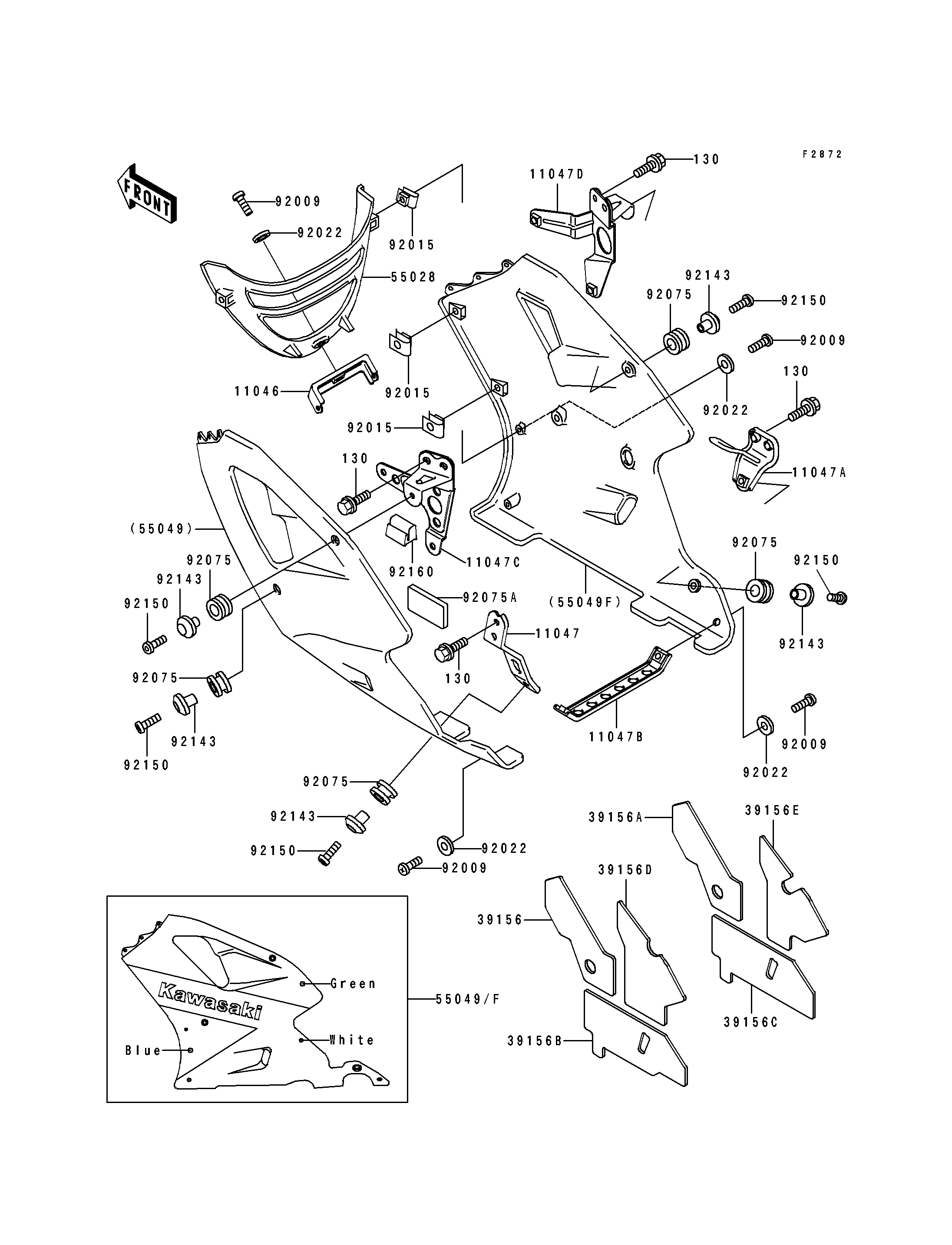

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LOWER COWLING,FR | 11046 | 11046-1683 | 1 | ||
| BRACKET,LWR COWLING,LH,LWR | 11047 | 11047-1254 | 1 | ||
| BRACKET,LWR COWLING,RH,LWR | 11047A | 11047-1255 | 1 | ||
| BRACKET,LWR COWLING,RR | 11047B | 11047-1258 | 1 | ||
| BRACKET,LWR COWLING,LH | 11047C | 11047-1519 | 1 | ||
| BRACKET,LWR COWLING,RH | 11047D | 11047-1520 | 1 | ||
| PAD,LWR COWLING,FR,LH | 39156 | 39156-1256 | 1 | ||
| PAD,LWR COWLING,FR,RH | 39156A | 39156-1257 | 1 | ||
| PAD,LWR COWLING,LWR,LH | 39156B | 39156-1258 | 1 | ||
| PAD,LWR COWLING,LWR,RH | 39156C | 39156-1259 | 1 | ||
| PAD,LWR COWLING,RR,LH | 39156D | 39156-1260 | 1 | ||
| PAD,LWR COWLING,RR,RH | 39156E | 39156-1261 | 1 | ||
| COWLING,FR,P.A.WHITE | 55028 | 55028-1266-R1 | 1 | ||
| COWLING.,LWR,LH,GREEN/WHITE | 55049 | 55049-5019-CK | 1 | ||
| COWLING.,LWR,RH,GREEN/WHITE | 55049F | 55049-5031-CK | 1 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 7 | ||
| NUT,5MM | 92015 | 92015-1798 | 6 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 7 | ||
| DAMPER | 92075 | 92075-1634 | 6 | ||
| DAMPER | 92075A | 92075-1830 | 1 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 6 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 6 | ||
| DAMPER,FUEL TANK | 92160 | 92160-1197 | 1 | ||
| BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 8 |
| BRACKET,LOWER COWLING,FR | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWLING,LH,LWR | |
| REF # | 11047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWLING,RH,LWR | |
| REF # | 11047A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWLING,RR | |
| REF # | 11047B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWLING,LH | |
| REF # | 11047C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWLING,RH | |
| REF # | 11047D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,LWR COWLING,FR,LH | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,LWR COWLING,FR,RH | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,LWR COWLING,LWR,LH | |
| REF # | 39156B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,LWR COWLING,LWR,RH | |
| REF # | 39156C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,LWR COWLING,RR,LH | |
| REF # | 39156D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,LWR COWLING,RR,RH | |
| REF # | 39156E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FR,P.A.WHITE | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING.,LWR,LH,GREEN/WHITE | |
| REF # | 55049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING.,LWR,RH,GREEN/WHITE | |
| REF # | 55049F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,BLACK | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16,BLACK | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
