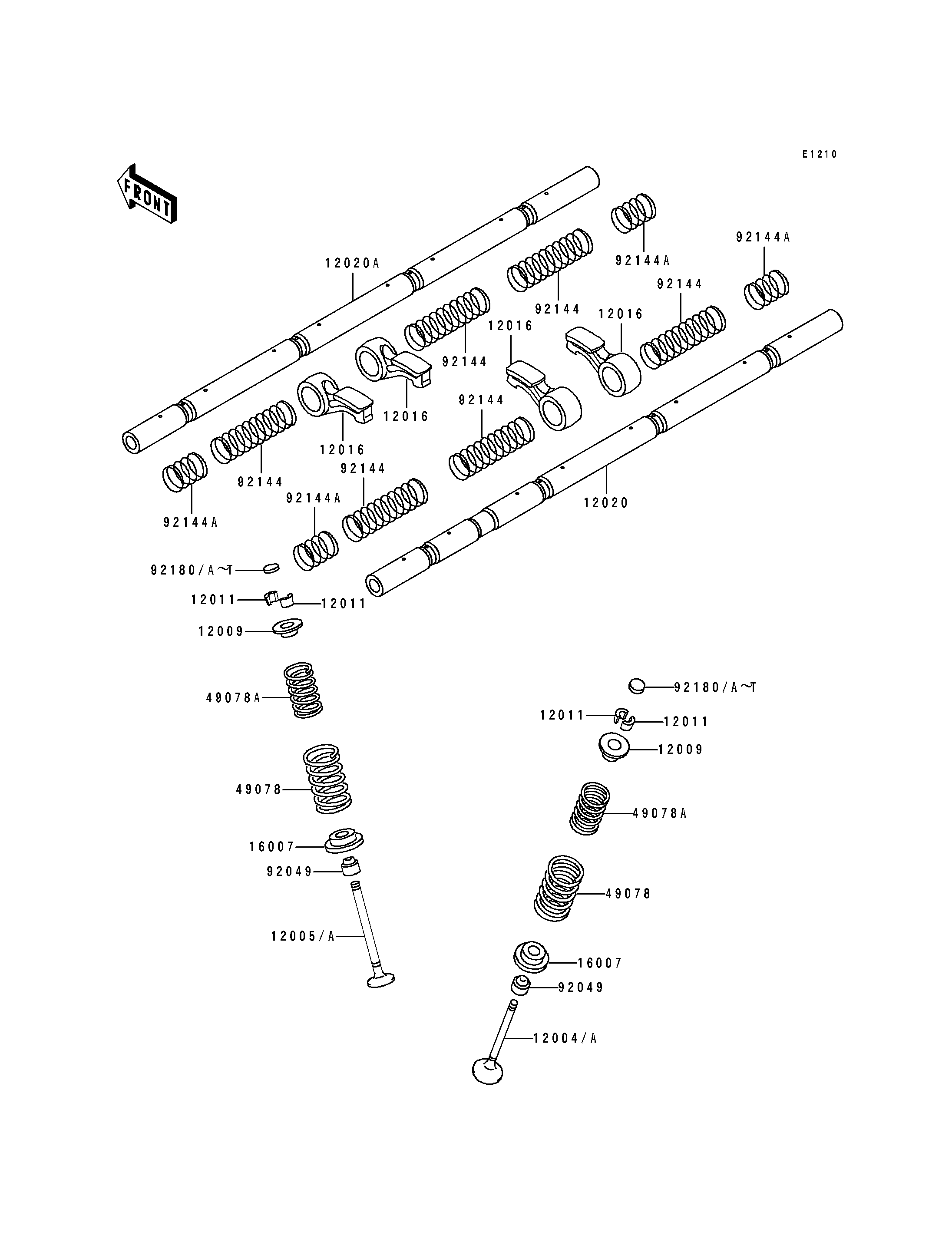

1995 Ninja® ZX™-7 - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004A 12004-1112 8
VALVE-EXHAUST 12005A 12005-1198 8
RETAINER-VALVE SPRING 12009 12009-1069 16
COLLET 12011 12011-1053 32
ARM-ROCKER 12016 12016-1081 16
SHAFT-ROCKER,INTAKE 12020 12020-1065 1
SHAFT-ROCKER,EXHAUST 12020A 12020-1066 1
SEAT-SPRING 16007 16007-1163 16
SPRING-ENGINE VALVE,OUTER 49078 49078-1108 16
SPRING-ENGINE VALVE,INNER 49078A 49078-1114 16
SEAL-OIL 92049 92049-1349 16
SPRING,ROCKER ARM,LONG 92144 92144-1254 6
SPRING,ROCKER ARM,SHORT 92144A 92144-1255 4
SHIM,T=2.50 92180 92180-1014 16
SHIM,T=2.55 92180A 92180-1016 AR
SHIM,T=2.60 92180B 92180-1018 AR
SHIM,T=2.65 92180C 92180-1020 AR
SHIM,T=2.70 92180D 92180-1022 AR
SHIM,T=2.75 92180E 92180-1024 AR
SHIM,T=2.80 92180F 92180-1026 AR
SHIM,T=2.85 92180G 92180-1028 AR
SHIM,T=2.90 92180H 92180-1030 AR
SHIM,T=2.95 92180I 92180-1032 AR
SHIM,T=3.00 92180J 92180-1034 AR
SHIM,T=3.05 92180K 92180-1036 AR
SHIM,T=3.10 92180L 92180-1038 AR
SHIM,T=3.15 92180M 92180-1040 AR
SHIM,T=3.20 92180N 92180-1042 AR
SHIM,T=3.25 92180O 92180-1044 AR
SHIM,T=3.30 92180P 92180-1046 AR
SHIM,T=3.35 92180Q 92180-1048 AR
SHIM,T=3.40 92180R 92180-1050 AR
SHIM,T=3.45 92180S 92180-1052 AR
SHIM,T=3.50 92180T 92180-1054 AR
