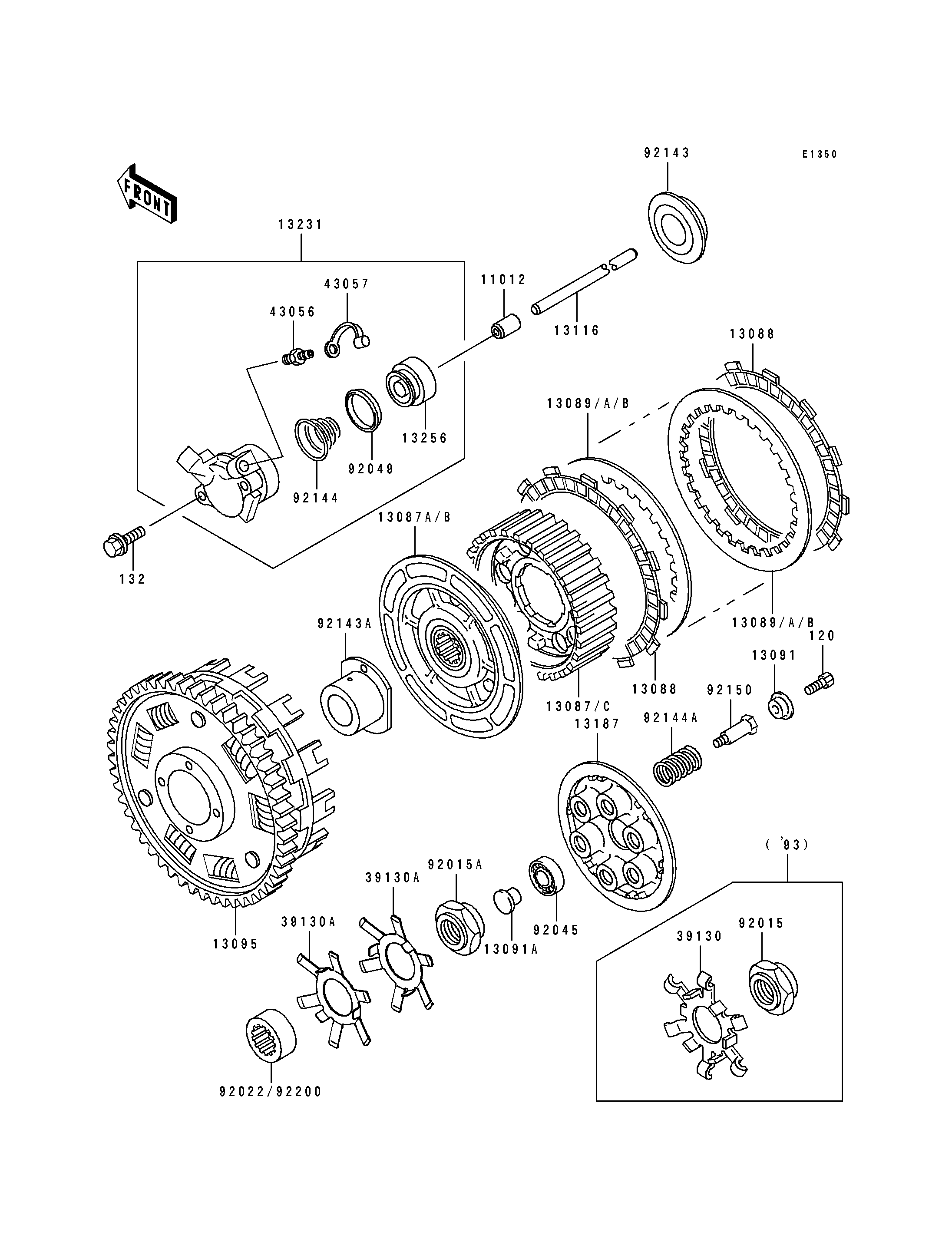

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,PUSHROD 11012 11012-1569 1
HUB-CLUTCH 13087B 13087-1157 1
HUB-CLUTCH 13087C 13087-1160 1
PLATE-FRICTION 13088 13088-040 8
PLATE-CLUTCH,T=2.0 13089 13089-026 AR
PLATE-CLUTCH,T=2.3 13089A 13089-1004 AR
PLATE-CLUTCH,T=2.6 13089B 13089-1067 AR
HOLDER,CLUTCH SPRING 13091 13091-1041 6
HOLDER,CLUTCH PUSH ROD 13091A 13091-1085 1
HOUSING-COMP-CLUTCH 13095 13095-1262 1
ROD-PUSH 13116 13116-1141 1
PLATE-CLUTCH OPERATING 13187 13187-1067 1
RELEASE-ASSY-CLUTCH 13231 13231-1065 1
PISTON 13256 13256-1052 1
SPRING-LEAF 39130A 39130-1071 2
BREATHER-BRAKE 43056 43056-1052 1
CAP-BREATHER 43057 43057-1001 1
NUT 92015A 92015-1929 1
BEARING-BALL,6001C3ML01 92045 92045-1235 1
SEAL-OIL,PISTON 92049 92049-1165 1
COLLAR 92143 92143-1468 1
COLLAR 92143A 92143-1638 1
SPRING,CLUTCH RELEASE 92144 92144-1084 1
SPRING,CLUTCH 92144A 92144-1630 6
BOLT,CLUTCH 92150 92150-1477 6
WASHER 92200 92200-1205 1
BOLT-SOCKET,6X16 120 120Q0616 6
BOLT-FLANGED-SMALL 132 132J0625 2
