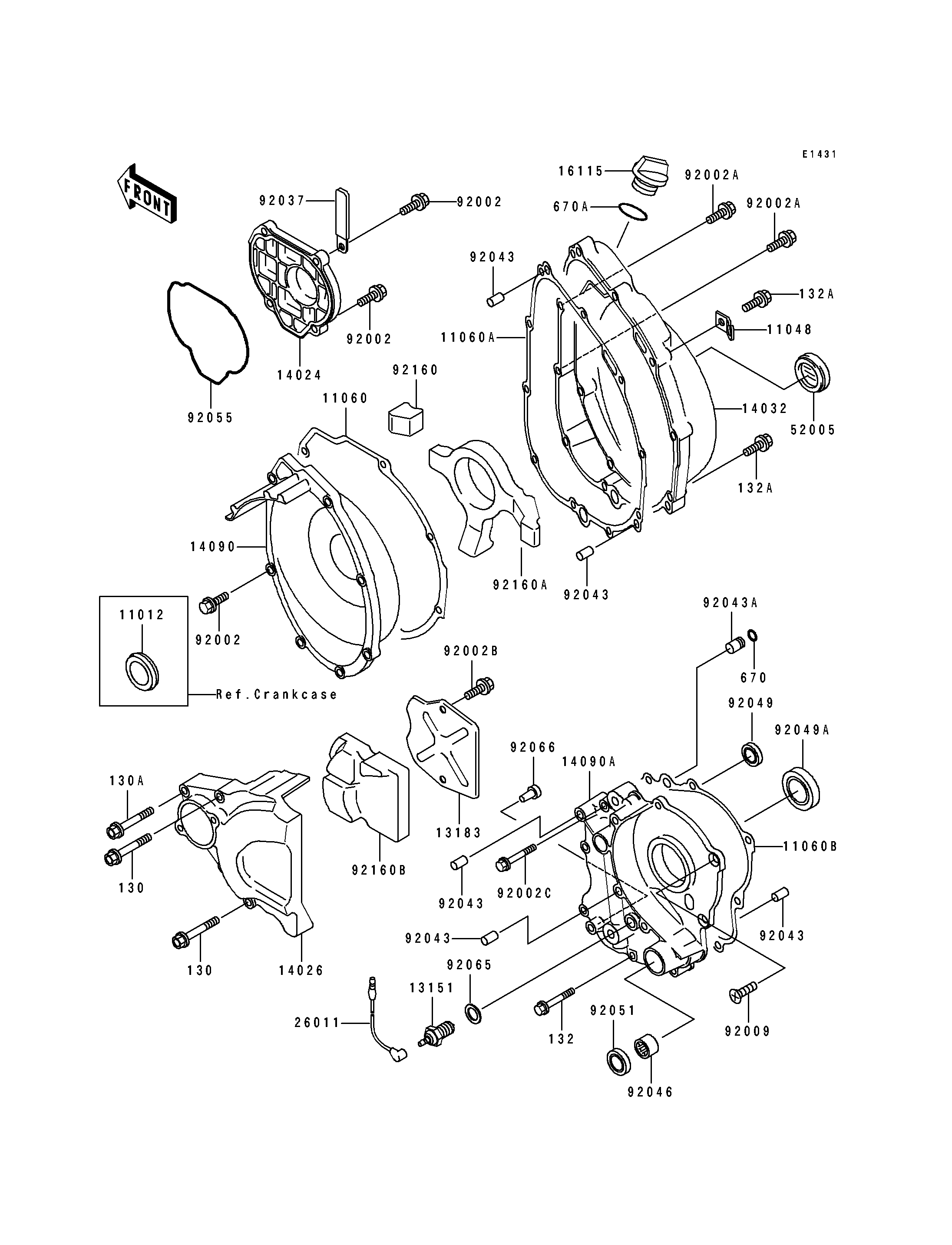

1995 Ninja® ZX™-7 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,LH 11012 11012-1770 1
BRACKET,THROTTLE ADJUST SCREW 11048 11048-1798 1
GASKET,BREATHER COVER 11060 11060-1356 1
GASKET,CLUTCH COVER 11060A 11060-1623 1
GASKET,TRANSMISSION COVER 11060B 11060-1660 1
SWITCH-COMP,NEUTRAL 13151 13151-1007 1
PLATE,CHAIN COVER 13183 13183-1717 1
COVER,PULSING 14024 14024-1998 1
COVER-CHAIN 14026 14026-1207 1
COVER-CLUTCH 14032 14032-1367 1
COVER,BREATHER 14090 14090-1052 1
COVER,TRANSMISSION 14090A 14090-1498 1
CAP-OIL FILLER 16115 16115-1053 1
WIRE-LEAD 26011 26011-1510 1
GAUGE,OIL LEVEL 52005 52005-1057 1
BOLT,6X20 92002 92002-1343 11
BOLT,6X25 92002A 92002-1344 2
BOLT,6X10 92002B 92002-1449 2
BOLT,6X30 92002C 92002-1622 3
SCREW,6X16 92009 92009-1360 3
CLAMP,WIRING HARNESS 92037 92037-1877 1
PIN,6.2X8X14 92043 92043-1263 5
PIN 92043A 92043-1456 1
BEARING-NEEDLE,HK1312 92046 92046-1148 1
SEAL-OIL,SD-8187 92049 92049-1017 1
SEAL-OIL,TC32488 92049A 92049-1361 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,PULSING COVER 92055 92055-1494 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG 92066 92066-1412 1
DAMPER,SOUND ARRESTER 92160 92160-1282 1
DAMPER,SOUND ARRESTER 92160A 92160-1465 1
DAMPER,CHAIN COVER 92160B 92160-1484 1
BOLT-FLANGED,6X35 130 130J0635 2
BOLT-FLANGED,6X45,BLACK 130A 130J0645 2
BOLT-FLANGED-SMALL 132 132E0630 2
BOLT-FLANGED-SMALL 132A 132J0630 8
O RING,5MM 670 670B1505 1
O RING,20MM 670A 670B2020 1
