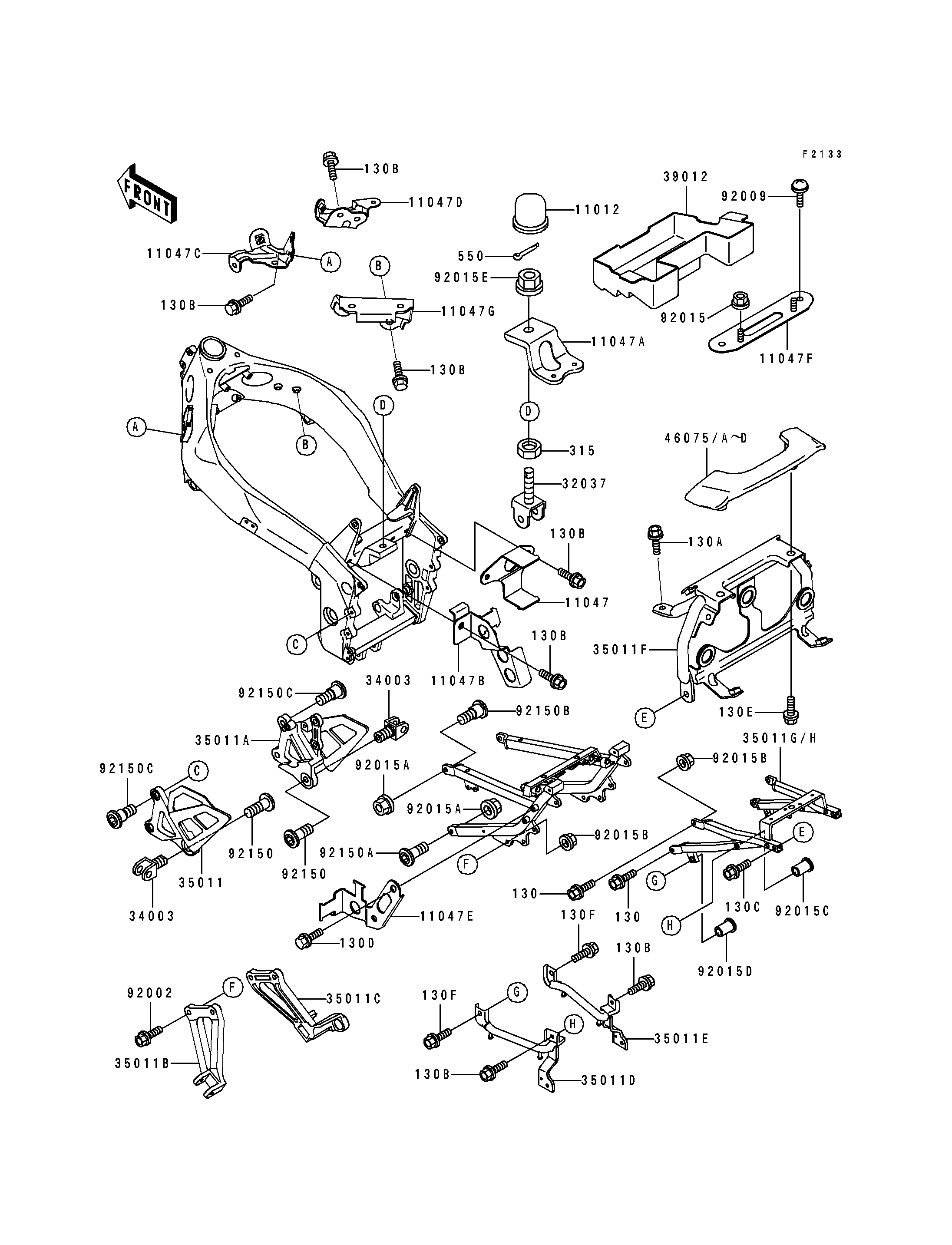

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-1844 | 1 | ||
BRACKET,FUEL PUMP | 11047 | 11047-1265 | 1 | ||
BRACKET,BATTERY | 11047A | 11047-1267 | 1 | ||
BRACKET,FUEL FILTER | 11047B | 11047-1852 | 1 | ||
BRACKET,RADIATOR,LH | 11047C | 11047-1853 | 1 | ||
BRACKET,RADIATOR,RH | 11047D | 11047-1854 | 1 | ||
BRACKET,RELAY&SEAT LOCK | 11047E | 11047-1855 | 1 | ||
BRACKET,IGNITER | 11047F | 11047-1858 | 1 | ||
BRACKET | 11047G | 11047-1967 | 1 | ||
BRACKET-SHOCKABSORBER | 32037 | 32037-1564 | 1 | ||
HOLDER-STEP | 34003 | 34003-1327 | 2 | ||
STAY,FR,LH | 35011 | 35011-1552 | 1 | ||
STAY,FR,RH | 35011A | 35011-1553 | 1 | ||
STAY,RR,LH | 35011B | 35011-1554 | 1 | ||
STAY,RR,RH | 35011C | 35011-1555 | 1 | ||
STAY,REAR GRIP,LH | 35011D | 35011-1559 | 1 | ||
STAY,REAR GRIP,RH | 35011E | 35011-1560 | 1 | ||
STAY,TAIL LAMP | 35011F | 35011-1628 | 1 | ||
STAY,REAR FRAME,SILVER NO.30 | 35011G | 35011-1632-KF | 1 | ||
CASE-STORAGE | 39012 | 39012-1056 | 1 | ||
GRIP,GRABRAIL,P.A.WHITE | 46075C | 46075-1100-R1 | 1 | ||
GRIP,GRABRAIL,BLACK MICA | 46075D | 46075-1100-20 | 1 | ||
BOLT,FLANGED,8X30 | 92002 | 92002-1445 | 4 | ||
SCREW,6X14 | 92009 | 92009-1662 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 2 | ||
NUT,FLANGED,10MM | 92015A | 92015-1387 | 4 | ||
NUT,FLANGED,8MM | 92015B | 92015-1406 | 8 | ||
NUT,POP,6MM,L=15 | 92015C | 92015-1791 | 2 | ||
NUT,POP,8MM,L=18 | 92015D | 92015-1794 | 2 | ||
NUT,FLANGED,16MM | 92015E | 92015-1881 | 1 | ||
BOLT,SOCKET,10X25 | 92150 | 92150-1268 | 2 | ||
BOLT,10X35 | 92150A | 92150-1295 | 2 | ||
BOLT,SOCKET,10X30 | 92150B | 92150-1517 | 2 | ||
BOLT,SOCKET,8X20 | 92150C | 92150-1839 | 4 | ||
BOLT-FLANGED,8X25 | 130 | 130H0825 | 4 | ||
BOLT-FLANGED,6X14,BLACK | 130A | 130J0614 | 2 | ||
BOLT-FLANGED,6X16,BLACK | 130B | 130J0616 | 11 | ||
BOLT-FLANGED,6X35 | 130C | 130J0635 | 2 | ||
BOLT-FLANGED,6X55,BLACK | 130D | 130J0655 | 2 | ||
BOLT-FLANGED,8X16,BLACK | 130E | 130J0816 | 2 | ||
BOLT-FLANGED,8X20 | 130F | 130J0820 | 2 | ||
NUT-HEX-FINE,16MM | 315 | 315B1600 | 1 | ||
PIN-COTTER,4.0X25 | 550 | 550D4025 | 1 |
