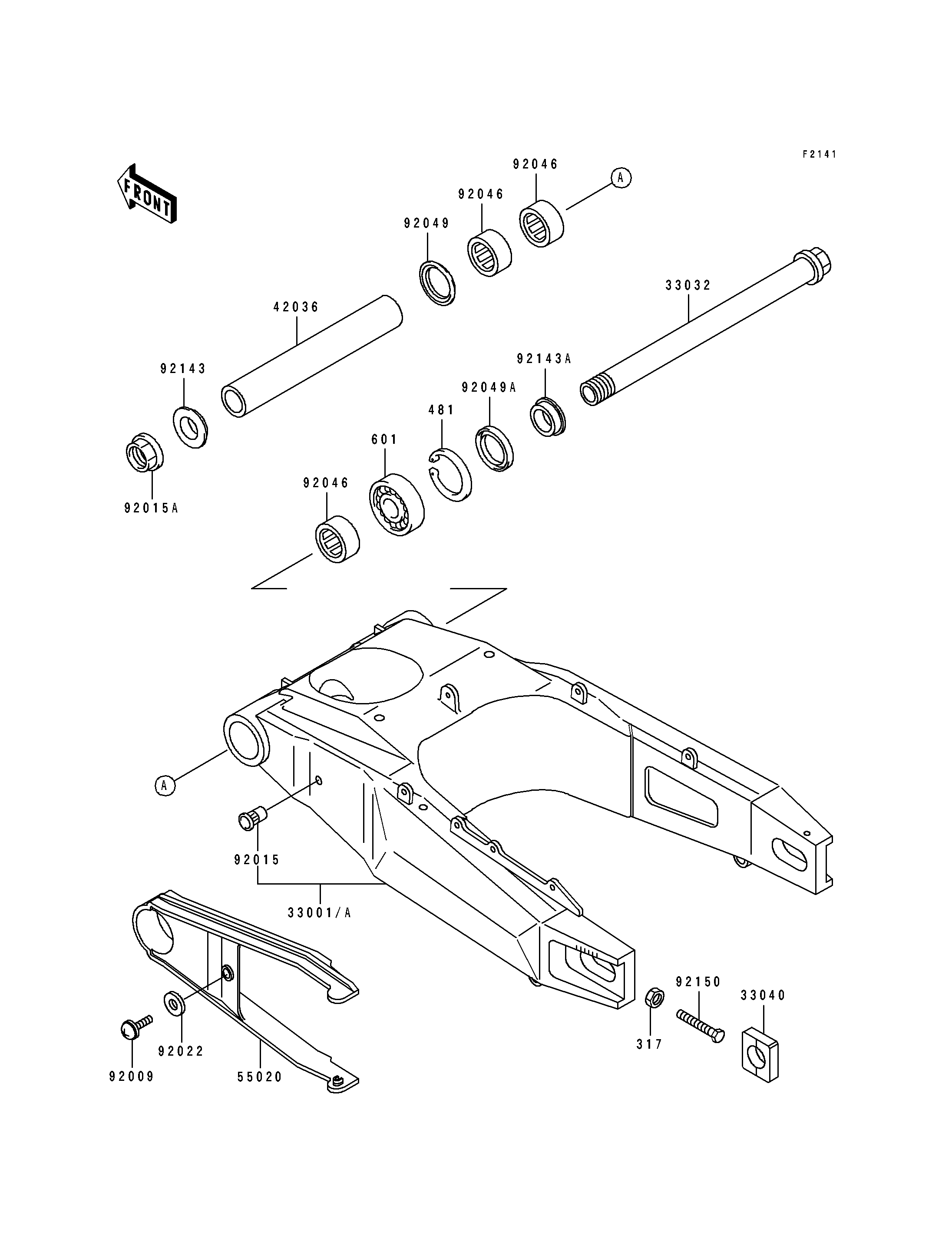

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ARM-COMP-SWING,SILVER NO.30 | 33001 | 33001-1411-KF | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1164 | 1 | ||
ADJUSTER-CHAIN | 33040 | 33040-1114 | 2 | ||
SLEEVE,SWING ARM,L=228 | 42036 | 42036-1284 | 1 | ||
GUARD,DRIVE CHAIN | 55020 | 55020-1450 | 1 | ||
SCREW,6X18 | 92009 | 92009-1663 | 1 | ||
NUT,POP,6MM,L=16.5 | 92015 | 92015-1792 | 1 | ||
NUT,FLANGED,25MM | 92015A | 92015-1845 | 1 | ||
WASHER,6.5X16X1 | 92022 | 92022-1143 | 1 | ||
BEARING-NEEDLE,BM3520 | 92046 | 92046-1205 | 3 | ||
SEAL-OIL,MHA 35 42 5.7F | 92049 | 92049-1380 | 1 | ||
SEAL-OIL,MHA 35 47 5 | 92049A | 92049-1381 | 1 | ||
COLLAR,SWING ARM,LH,L=11.5 | 92143 | 92143-1480 | 1 | ||
COLLAR,SWING ARM,RH,L=12.5 | 92143A | 92143-1481 | 1 | ||
BOLT,8X55 | 92150 | 92150-1350 | 2 | ||
NUT-HEX-SMALL,8MM | 317 | 317G0800 | 2 | ||
CIRCLIP-TYPE-C,47MM | 481 | 481J4700 | 1 | ||
BEARING-BALL,#6005U | 601 | 601B6005U | 1 |
