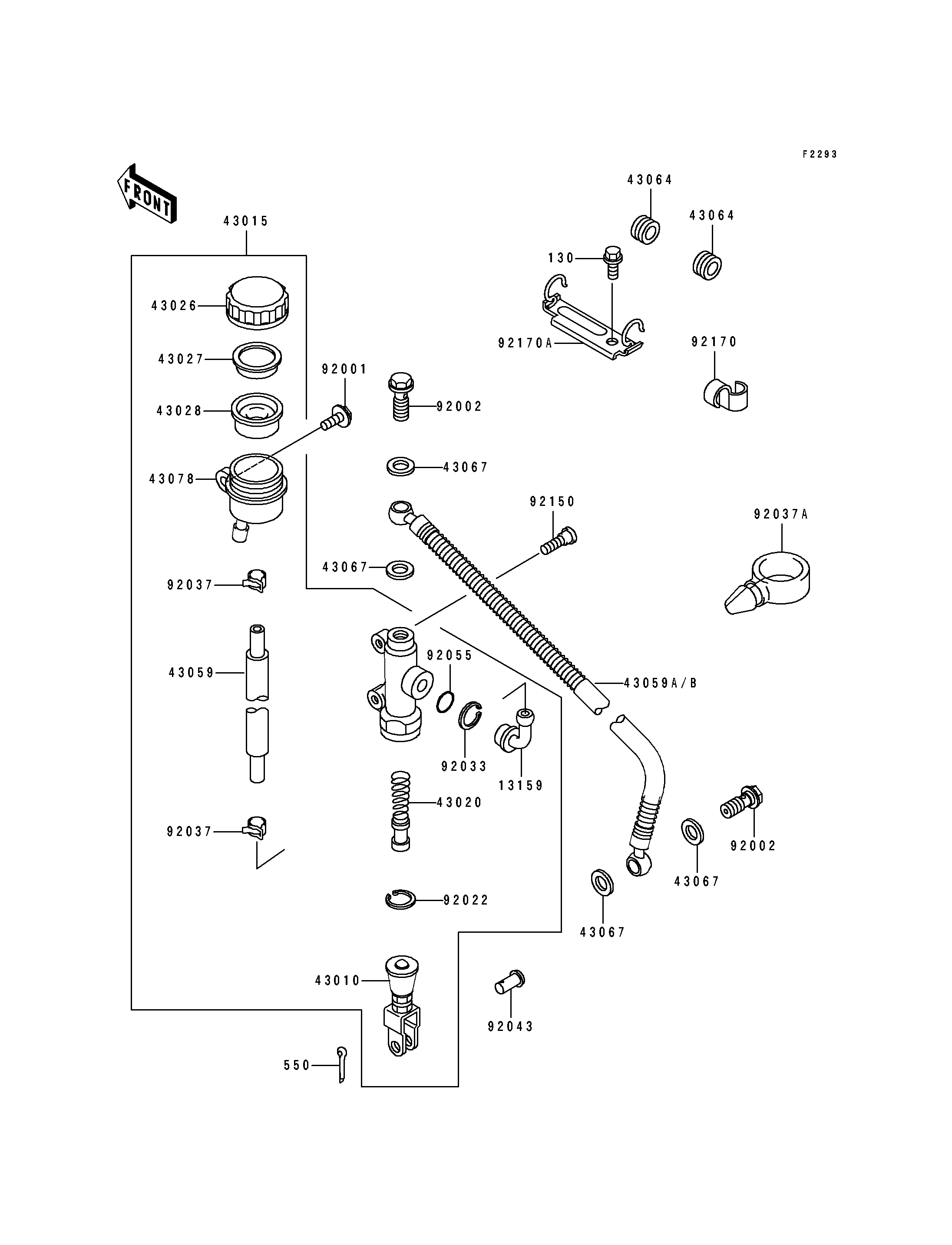

1995 Ninja® ZX™-7 - Rear Master Cylinder
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CONNECTOR,RR MASTER CYLINDER | 13159 | 13159-1052 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-1062 | 1 | ||
CYLINDER-ASSY-MASTER,RR | 43015 | 43015-1456 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1094 | 1 | ||
CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
HOSE-BRAKE,RR MASTER CYLINDER | 43059 | 43059-1313 | 1 | ||
HOSE-BRAKE,RR | 43059B | 43059-1855 | 1 | ||
GROMMET,HOSE CLAMP | 43064 | 43064-006 | 2 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
RESERVOIR,RR MASTER CYLINDER | 43078 | 43078-1058 | 1 | ||
BOLT,6X20 | 92001 | 92001-1460 | 1 | ||
BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
WASHER,CIRCRIP | 92022 | 92022-1601 | 1 | ||
RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
CLAMP,BRAKE HOSE | 92037 | 92037-1547 | 2 | ||
CLAMP,HOSE | 92037A | 92037-1827 | 1 | ||
PIN,8MM | 92043 | 92043-1303 | 1 | ||
RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
BOLT,SOCKET,8X25 | 92150 | 92150-1837 | 2 | ||
CLAMP,HOSE | 92170 | 92170-1097 | 1 | ||
CLAMP,HOSE | 92170A | 92170-1367 | 1 | ||
BOLT-FLANGED,6X10 | 130 | 130H0610 | 1 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 |
