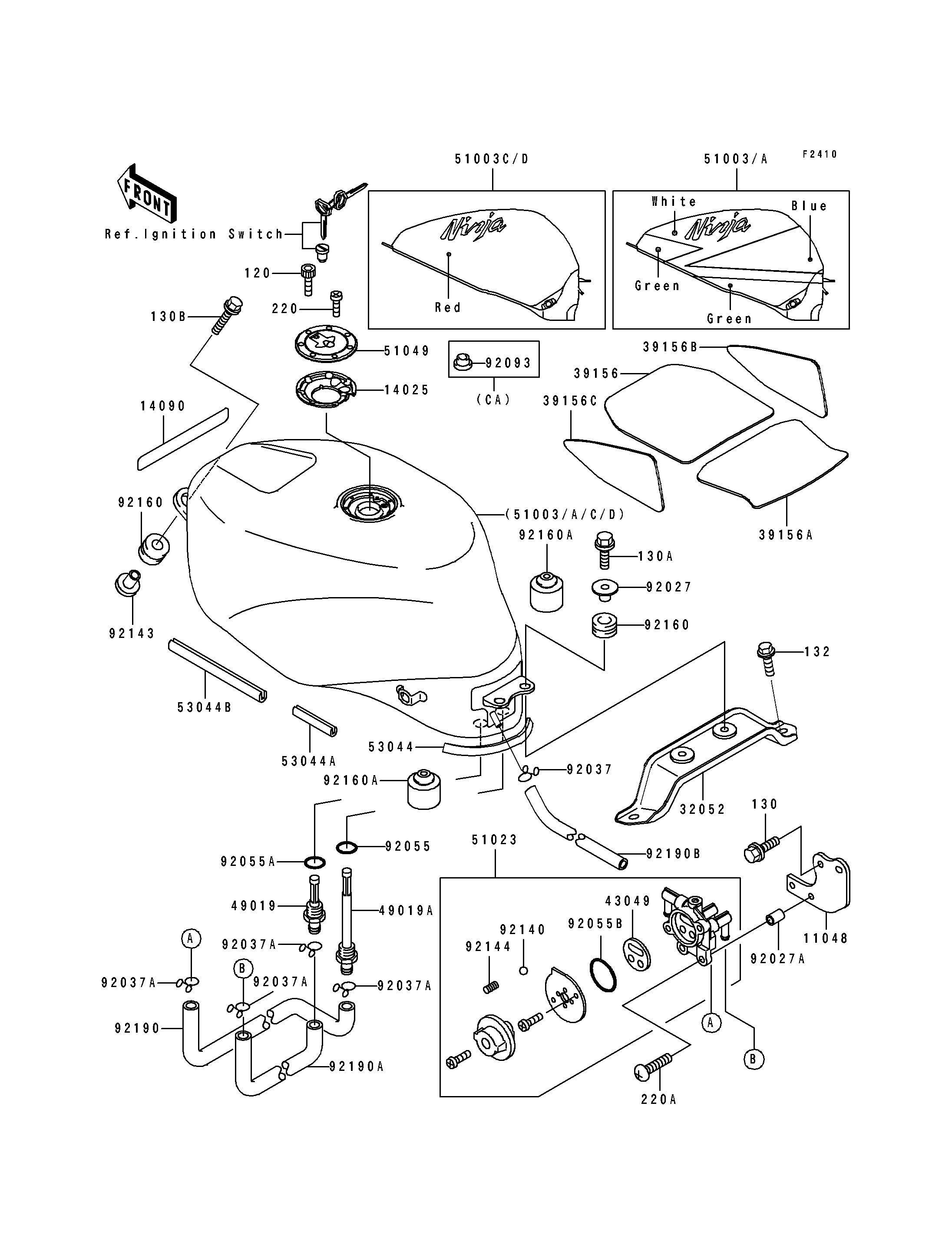

1993 Ninja® ZX™-7 - Fuel Tank(ZX750-L1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TAP 11048 11048-1150 1
COVER,TANK CAP 14025 14025-1913 1
COVER,FUEL TANK 14090 14090-1338 1
BRACKET-TANK,RR 32052 32052-1367 1
PAD,FUEL TANK,FR 39156 39156-1312 1
PAD,FUEL TANK,RR 39156A 39156-1313 1
PAD,FUEL TANK,SIDE,RH 39156B 39156-1314 1
PAD,FUEL TANK,SIDE,LH 39156C 39156-1315 1
PACKING,TAP VALVE 43049 43049-1066 1
FILTER-FUEL 49019 49019-1070 1
FILTER-FUEL,"ON" 49019A 49019-1074 1
TANK-COMP-FUEL,GREEN/WHITE/BLU 51003 51003-5487-KE 1 CNUS
TANK-COMP-FUEL,GREEN/WHITE/BLU 51003A 51003-5488-KE 1 CA
TANK-COMP-FUEL,C.W.RED 51003C 51003-5490-H3 1 CNUS
TANK-COMP-FUEL,C.W.RED 51003D 51003-5491-H3 1 CA
TAP-ASSY,FUEL 51023 51023-1203 1
CAP-TANK,FUEL 51049 51049-1091 1
TRIM,COWLING COVER 53044 53044-1106 1
TRIM,L=50 53044A 53044-1277 2
TRIM,L=100 53044B 53044-3728 2
COLLAR,L=14.1 92027 92027-1920 2
COLLAR,6.8X10X14 92027A 92027-1966 2
CLAMP,TUBE 92037 92037-147 1
CLAMP,TUBE 92037A 92037-1972 4
RING-O,ID=9.5 92055 92055-1386 1
RING-O,11.5X1.5 92055A 92055-1387 1
RING-O,TAP LEVER 92055B 92055-1419 1
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
BALL,STAINLESS,5/32" 92140 92140-1051 1
COLLAR 92143 92143-1515 2
SPRING,FUEL TAP KNOB 92144 92144-1212 1
DAMPER 92160 92160-1162 4
DAMPER 92160A 92160-1513 2
TUBE,FUEL,"ON" 92190 92190-1349 1
TUBE,FUEL,"RES" 92190A 92190-1350 1
TUBE,DRAIN 92190B 92190-1418 1
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,6X10 130 130H0610 2
BOLT-FLANGED,6X30,BLACK 130A 130J0630 2
BOLT-FLANGED,6X45,BLACK 130B 130J0645 2
BOLT-FLANGED-SMALL 132 132J0820 2
SCREW-PAN-CROS 220 220C0508 1
SCREW-PAN-CROS,6X25,BLACK 220A 220C0625 2
