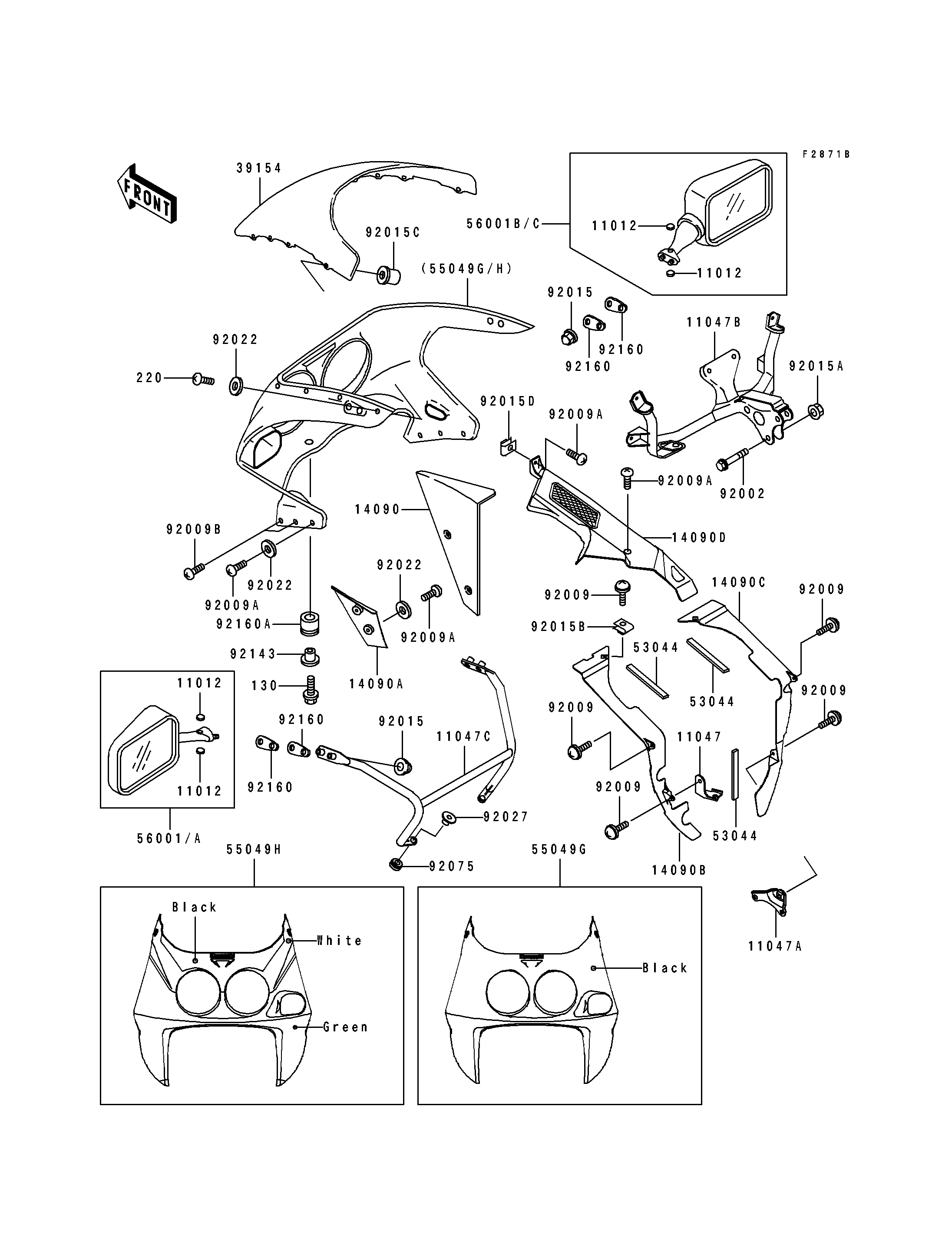

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,MIRROR | 11012 | 11012-1818 | 4 | ||
BRACKET,INNER COWLING,LH | 11047 | 11047-1856 | 1 | ||
BRACKET,INNER COWLING,RH | 11047A | 11047-1857 | 1 | ||
BRACKET,UPP COWLING | 11047B | 11047-1860 | 1 | ||
BRACKET,MIRROR | 11047C | 11047-1861 | 1 | ||
COVER,RADIATOR,RH | 14090 | 14090-1236 | 1 | ||
COVER,RADIATOR,LH | 14090A | 14090-1237 | 1 | ||
COVER,INNER COWLING,LH | 14090B | 14090-1265 | 1 | ||
COVER,INNER COWLING,RH | 14090C | 14090-1266 | 1 | ||
COVER,INNER COWLING,FR,UPP | 14090D | 14090-1267 | 1 | ||
WINDSHIELD | 39154 | 39154-1120 | 1 | ||
TRIM,L=150 | 53044 | 53044-1248 | 3 | ||
COWLING.,UPP,P.P.BLACK MICA | 55049G | 55049-5326-20 | 1 | ||
COWLING.,UPP,GREEN/WHITE | 55049H | 55049-5329-CK | 1 | ||
MIRROR-ASSY,LH,EBONY | 56001 | 56001-1376-6C | 1 | ||
MIRROR-ASSY,LH,P.WHITE | 56001A | 56001-1376-6F | 1 | ||
MIRROR-ASSY,RH,EBONY | 56001B | 56001-1377-6C | 1 | ||
MIRROR-ASSY,RH,P.WHITE | 56001C | 56001-1377-6F | 1 | ||
BOLT,8X35 | 92002 | 92002-1198 | 2 | ||
SCREW,6X14 | 92009 | 92009-1555 | 6 | ||
SCREW,5X16 | 92009A | 92009-1654 | 8 | ||
SCREW,5X20 | 92009B | 92009-1656 | 4 | ||
NUT,CAP,6MM,BLACK | 92015 | 92015-1170 | 4 | ||
NUT,CAP,8MM,BLACK | 92015A | 92015-1174 | 2 | ||
NUT,6MM | 92015B | 92015-1602 | 2 | ||
NUT,WELL,5MM | 92015C | 92015-1757 | 10 | ||
NUT,5MM | 92015D | 92015-1798 | 1 | ||
WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 16 | ||
COLLAR,L=14.1 | 92027 | 92027-1920 | 2 | ||
DAMPER | 92075 | 92075-277 | 2 | ||
COLLAR | 92143 | 92143-1026 | 2 | ||
DAMPER,MIRROR | 92160 | 92160-1089 | 4 | ||
DAMPER | 92160A | 92160-1141 | 2 | ||
BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 2 | ||
SCREW-PAN-CROS | 220 | 220C0516 | 10 |
