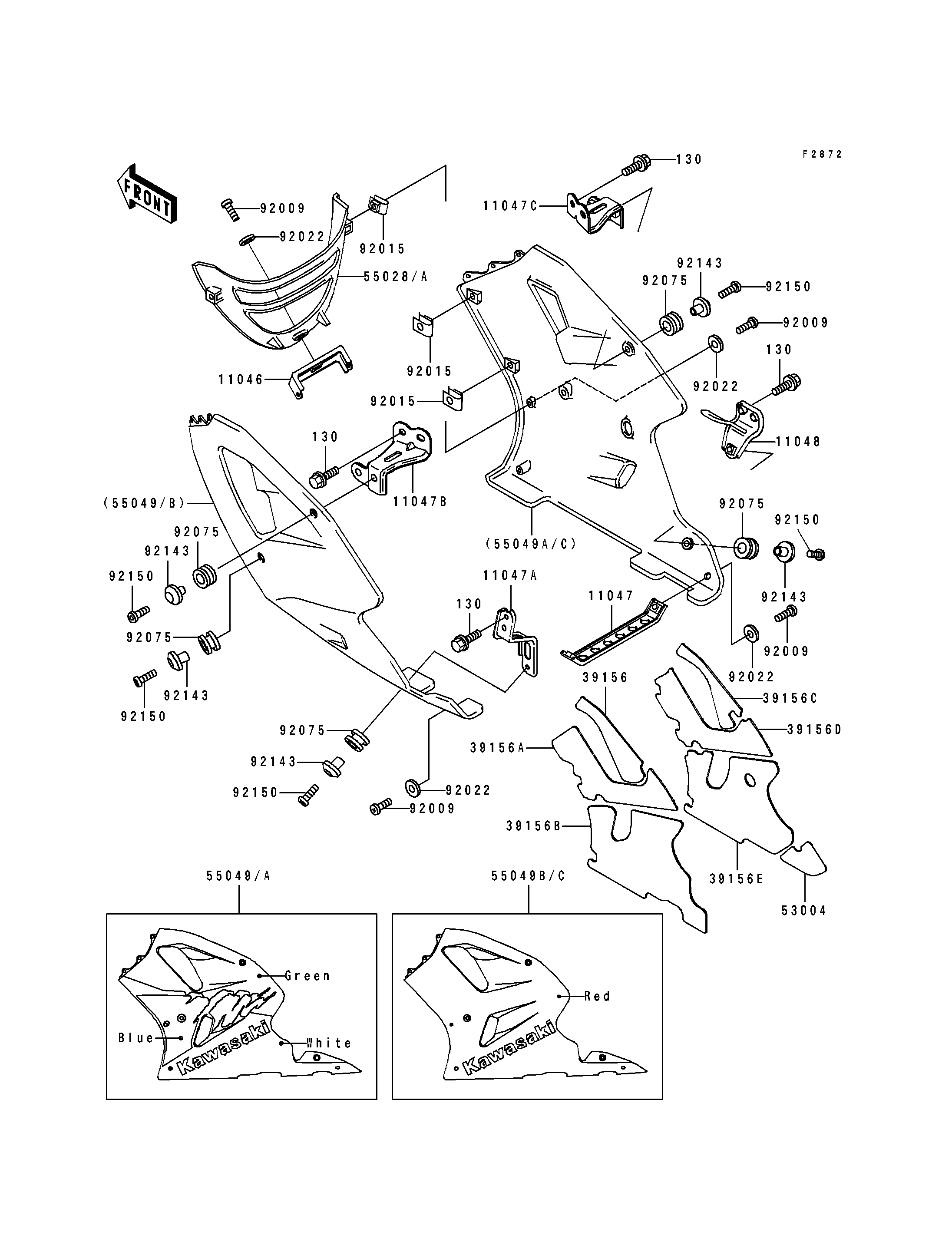

1993 Ninja® ZX™-7 - Cowling Lowers(ZX750-L1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LOWER COWLING,FR | 11046 | 11046-1683 | 1 | ||
| BRACKET,LWR COWLING,RR | 11047 | 11047-1258 | 1 | ||
| BRACKET,LWR COWLING,LH,LWR | 11047A | 11047-1862 | 1 | ||
| BRACKET,LWR COWLING,LH,UPP | 11047B | 11047-1863 | 1 | ||
| BRACKET,LWR COWLING,RH,UPP | 11047C | 11047-1864 | 1 | ||
| BRACKET,LWR COWLING,RH,LWR | 11048 | 11048-1149 | 1 | ||
| PAD,LWR COWLING,LH,UPP | 39156 | 39156-1320 | 1 | ||
| PAD,LWR COWLING,LH,CNT | 39156A | 39156-1321 | 1 | ||
| PAD,LWR COWLING,LH,LWR | 39156B | 39156-1322 | 1 | ||
| PAD,LWR COWLING,RH,UPP | 39156C | 39156-1323 | 1 | ||
| PAD,LWR COWLING,RH,CNT | 39156D | 39156-1324 | 1 | ||
| PAD,LWR COWLING,RH,LWR | 39156E | 39156-1325 | 1 | ||
| MAT,LWR COWLING,RH | 53004 | 53004-1084 | 1 | ||
| COWLING,FR,C.W.RED | 55028 | 55028-1288-H3 | 1 | ||
| COWLING,FR,P.A.WHITE | 55028A | 55028-1288-R1 | 1 | ||
| COWLING.,LWR,LH,GREEN/WHITE | 55049 | 55049-5145-CK | 1 | ||
| COWLING.,LWR,RH,GREEN/WHITE | 55049A | 55049-5146-CK | 1 | ||
| COWLING.,LWR,LH,C.W.RED | 55049B | 55049-5148-H3 | 1 | ||
| COWLING.,LWR,RH,C.W.RED | 55049C | 55049-5149-H3 | 1 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 7 | ||
| NUT,5MM | 92015 | 92015-1798 | 6 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 7 | ||
| DAMPER | 92075 | 92075-1634 | 6 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 6 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 6 | ||
| BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 8 |
