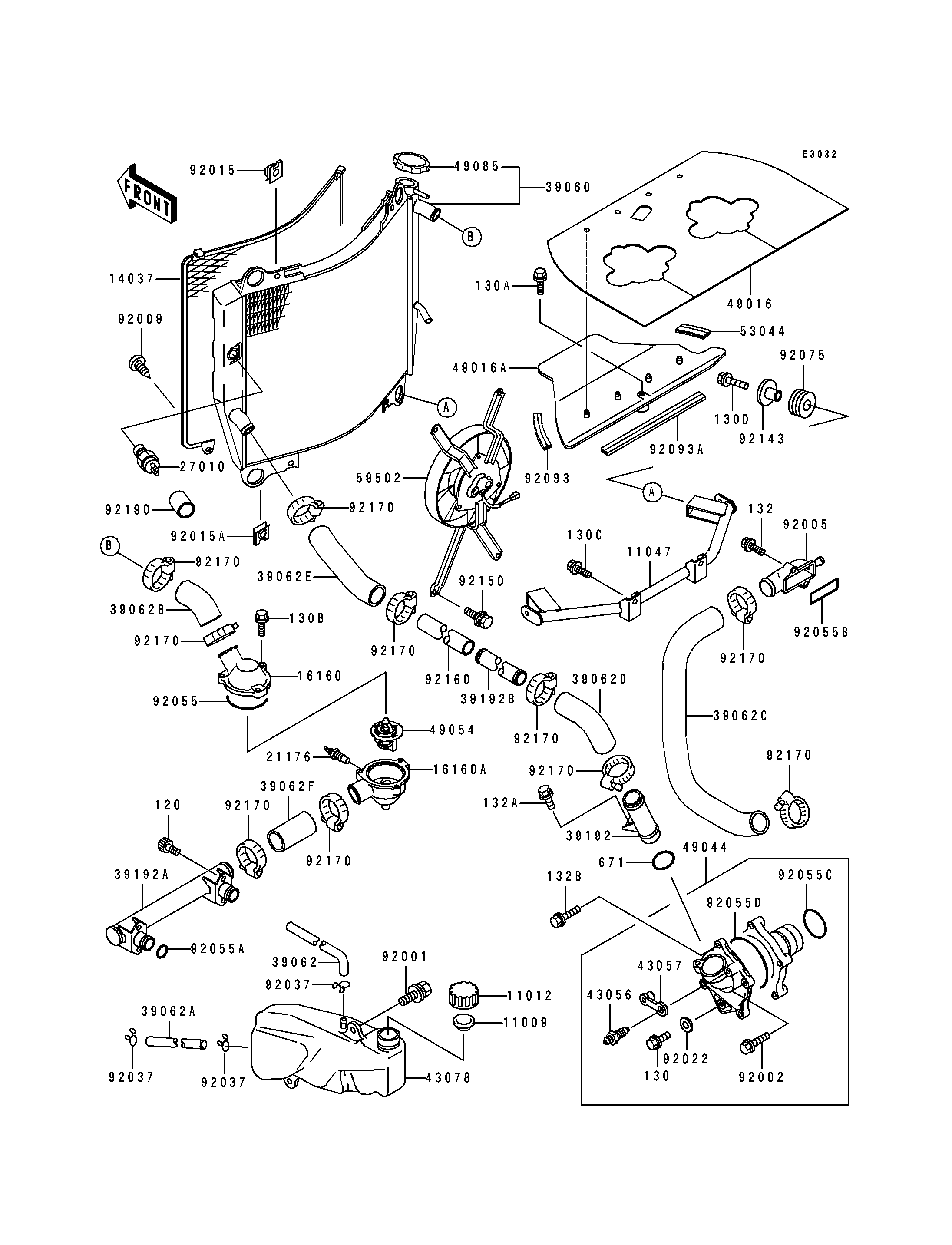

1993 Ninja® ZX™-7R - Radiator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET,RADIATOR 11047 11047-1237 1
SCREEN 14037 14037-1138 1
BODY,THERMOSTAT,UPP 16160 16160-1175 1
BODY,THERMOSTAT,LWR 16160A 16160-1176 1
SENSOR,WATER 21176 21176-1054 1
SWITCH,FAN 27010 27010-1202 1
RADIATOR 39060 39060-1106 1
HOSE-COOLING,L=997 39062 39062-1194 1
HOSE-COOLING 39062A 39062-1226 1
HOSE-COOLING 39062B 39062-1444 1
HOSE-COOLING,PUMP-CYLINDER 39062C 39062-1445 1
HOSE-COOLING,WATER PUMP 39062D 39062-1472 1
HOSE-COOLING,RADIATOR 39062E 39062-1473 1
HOSE-COOLING,HEAD-THERMO 39062F 39062-1489 1
PIPE-WATER 39192 39192-1041 1
PIPE-WATER 39192A 39192-1042 1
PIPE-WATER 39192B 39192-1047 1
BREATHER-BRAKE 43056 43056-1051 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-1129 1
COVER-SEAL 49016 49016-1162 1
COVER-SEAL 49016A 49016-1163 1
PUMP-WATER 49044 49044-1069 1
THERMOSTAT 49054 49054-1051 1
CAP-ASSY-PRESSURE 49085 49085-1067 1
TRIM 53044 53044-1220 1
FAN-ASSY 59502 59502-1100 1
BOLT,6X16 92001 92001-1927 2
BOLT,6X22 92002 92002-1392 2
FITTING 92005 92005-1217 1
SCREW,TAPPING,6MM 92009 92009-1261 2
NUT 92015 92015-1487 4
NUT,6MM 92015A 92015-1758 2
WASHER,6MM 92022 92022-1976 1
CLAMP,TUBE 92037 92037-147 3
RING-O,53.5X2.6 92055 92055-112 1
RING-O 92055A 92055-1282 2
RING-O 92055B 92055-1402 1
RING-O,33.2X2.4 92055C 92055-1424 1
RING-O,WATER PUMP 92055D 92055-1495 1
DAMPER 92075 92075-1665 4
SEAL 92093 92093-1276 1
SEAL 92093A 92093-1327 1
COLLAR 92143 92143-1063 4
BOLT,6X12 92150 92150-1186 4
DAMPER,WATER PIPE 92160 92160-1297 1
CLAMP,COOLING HOSE 92170 92170-1284 10
TUBE,SWITCH 92190 92190-1233 1
BOLT-SOCKET,6X12 120 120P0612 4
BOLT-FLANGED,6X10,BLACK 130 130C0610 1
BOLT-FLANGED,6X40 130A 130G0640 1
BOLT-FLANGED 130B 130J0520 3
BOLT-FLANGED 130C 130J0610 2
BOLT-FLANGED 130D 130J0620 4
BOLT-FLANGED-SMALL 132 132G0625 2
BOLT-FLANGED-SMALL 132A 132J0612 1
BOLT-FLANGED-SMALL 132B 132J0645 2
O RING,25MM 671 671B2525 1
