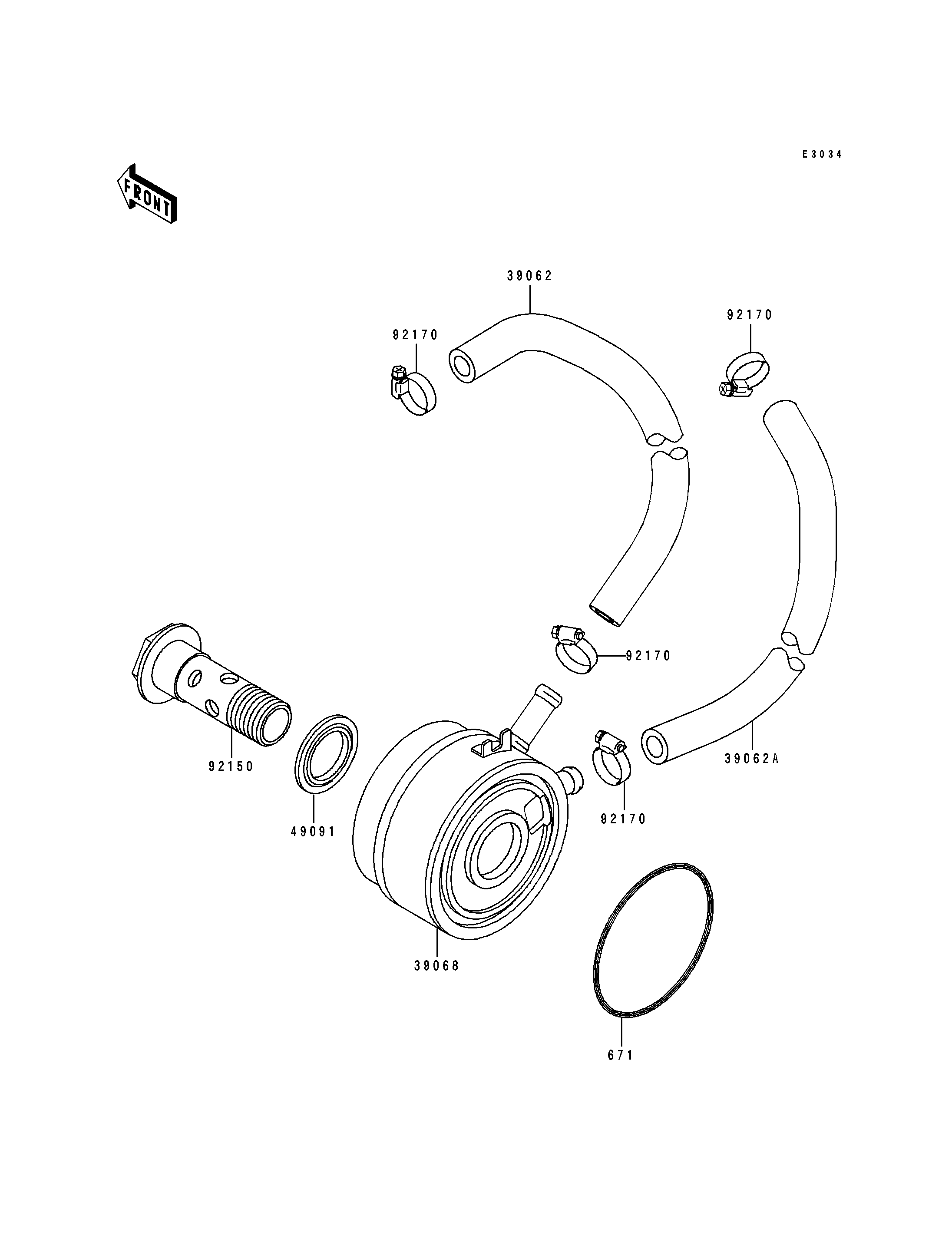

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOSE-COOLING,FITTING-COOLER 39062 39062-1440 1
HOSE-COOLING,COOLER-RADIATOR 39062A 39062-1441 1
COOLER-ASSY-OIL 39068 39068-1055 1
WASHER-SEAL 49091 49091-1052 1
BOLT,OIL COOLER 92150 92150-1466 1
CLAMP,COOLING HOSE 92170 92170-1287 4
O RING,65MM 671 671B2565 1
