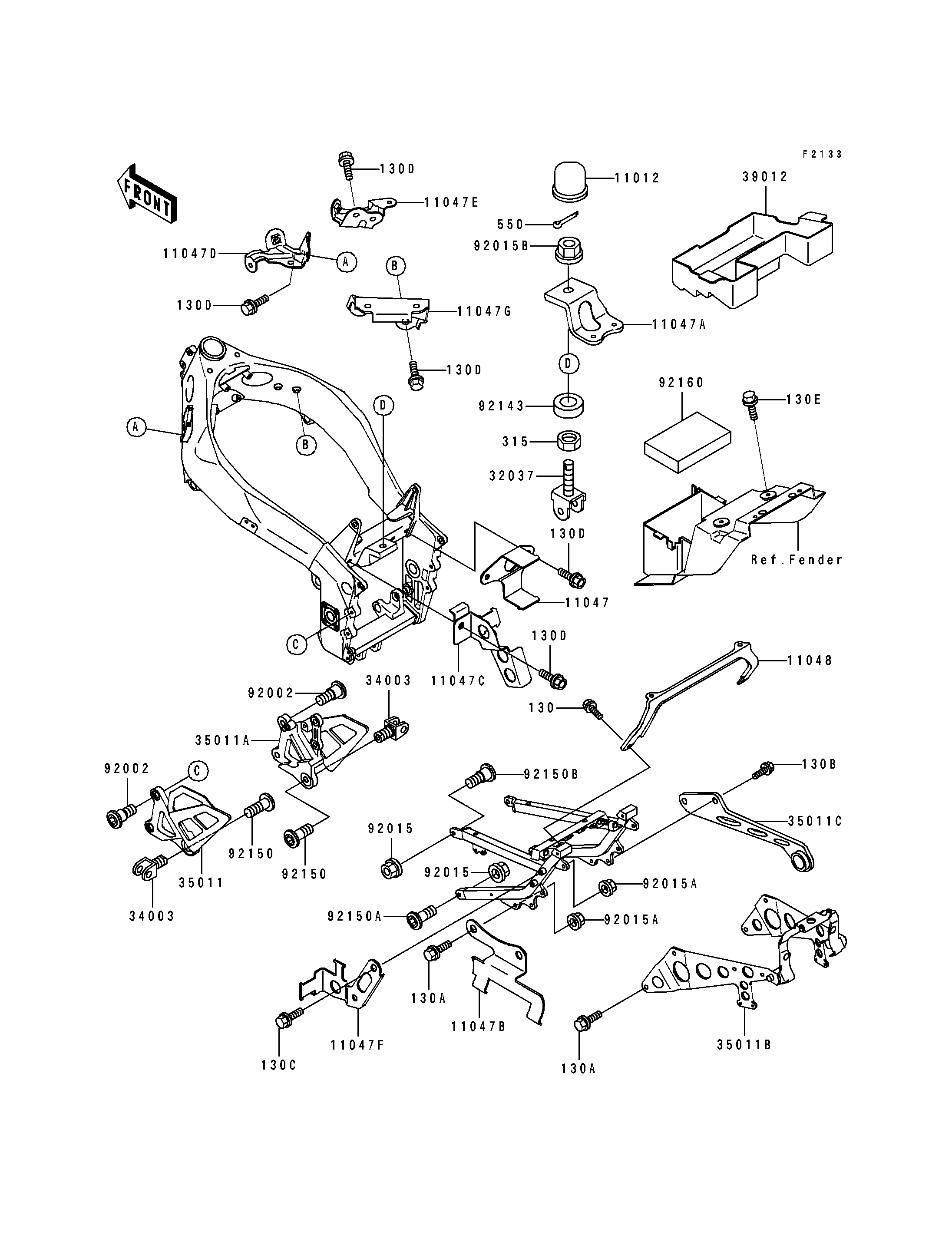

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-1844 | 1 | ||
BRACKET,FUEL PUMP | 11047 | 11047-1265 | 1 | ||
BRACKET,BATTERY | 11047A | 11047-1267 | 1 | ||
BRACKET,RESERVOIR TANK | 11047B | 11047-1283 | 1 | ||
BRACKET,FUEL FILTER | 11047C | 11047-1852 | 1 | ||
BRACKET,RADIATOR,LH | 11047D | 11047-1853 | 1 | ||
BRACKET,RADIATOR,RH | 11047E | 11047-1854 | 1 | ||
BRACKET,RELAY&SEAT LOCK | 11047F | 11047-1855 | 1 | ||
BRACKET | 11047G | 11047-1967 | 1 | ||
BRACKET,SIDE COVER | 11048 | 11048-1258 | 1 | ||
BRACKET-SHOCKABSORBER | 32037 | 32037-1564 | 1 | ||
HOLDER-STEP | 34003 | 34003-1327 | 2 | ||
STAY,FR,LH | 35011 | 35011-1552 | 1 | ||
STAY,FR,RH | 35011A | 35011-1553 | 1 | ||
STAY,RR FENDER,SILVER NO.30 | 35011B | 35011-1634-KF | 1 | ||
STAY,MUFFLER | 35011C | 35011-1655 | 1 | ||
CASE-STORAGE | 39012 | 39012-1056 | 1 | ||
BOLT,SOCKET,8X20 | 92002 | 92002-1493 | 4 | ||
NUT,FLANGED,10MM | 92015 | 92015-1387 | 4 | ||
NUT,FLANGED,8MM | 92015A | 92015-1406 | 8 | ||
NUT,FLANGED,16MM | 92015B | 92015-1881 | 1 | ||
COLLAR,17.2X30X10 | 92143 | 92143-1535 | 1 | ||
BOLT,SOCKET,10X25 | 92150 | 92150-1268 | 2 | ||
BOLT,10X35 | 92150A | 92150-1295 | 2 | ||
BOLT,SOCKET,10X30 | 92150B | 92150-1517 | 2 | ||
DAMPER,BATTERY | 92160 | 92160-1284 | 1 | ||
BOLT-FLANGED,6X12 | 130 | 130H0612 | 2 | ||
BOLT-FLANGED,8X20 | 130A | 130H0820 | 6 | ||
BOLT-FLANGED,8X25 | 130B | 130H0825 | 2 | ||
BOLT-FLANGED | 130C | 130J0612 | 2 | ||
BOLT-FLANGED,6X16,BLACK | 130D | 130J0616 | 9 | ||
BOLT-FLANGED | 130E | 130J0620 | 2 | ||
NUT-HEX-FINE,16MM | 315 | 315B1600 | 1 | ||
PIN-COTTER,4.0X25 | 550 | 550D4025 | 1 |
