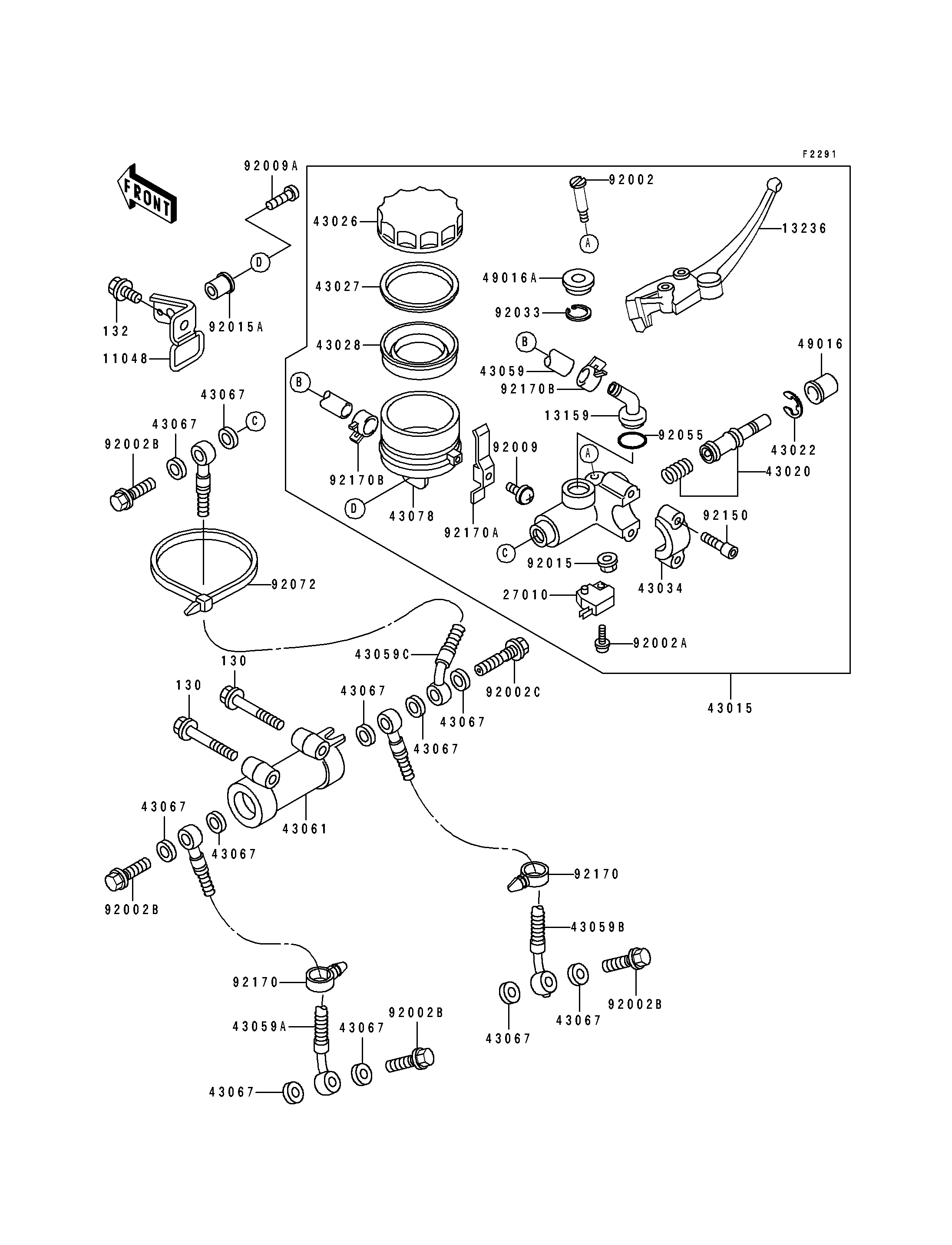

1994 Ninja® ZX™-7R - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR TANK 11048 11048-1170 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,FRONT BRAKE 13236 13236-1185 1
SWITCH,BRAKE 27010 27010-1170 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1392 1
PISTON-COMP-BRAKE,FR 43020 43020-1054 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE 43059 43059-1547 1
HOSE-BRAKE,FR,LH 43059A 43059-1677 1
HOSE-BRAKE,FR,RH 43059B 43059-1678 1
HOSE-BRAKE,FR 43059C 43059-1684 1
JOINT-BRAKE 43061 43061-1004 1
WASHER,10.5X15X1.5 43067 43067-001 11
RESERVOIR 43078 43078-1099 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
COVER-SEAL 49016A 49016-1147 1
BOLT,LEVER SET 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
BOLT,OIL,L=23 92002B 92002-1888 4
BOLT,OIL,L=37 92002C 92002-1909 1
SCREW 92009 92009-1570 1
SCREW,5X18 92009A 92009-1655 1
NUT,FLANGED,6MM 92015 92015-1233 1
NUT,WELL,5MM 92015A 92015-1757 1
RING-SNAP,20.5MM 92033 92033-1186 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BAND,L=365 92072 92072-1197 1
BOLT 92150 92150-1328 2
CLAMP,HOSE 92170 92170-1067 2
CLAMP 92170A 92170-1090 1
CLAMP,HOSE 92170B 92170-1091 2
BOLT-FLANGED,6X60 130 130G0660 2
BOLT-FLANGED-SMALL 132 132J0612 1
