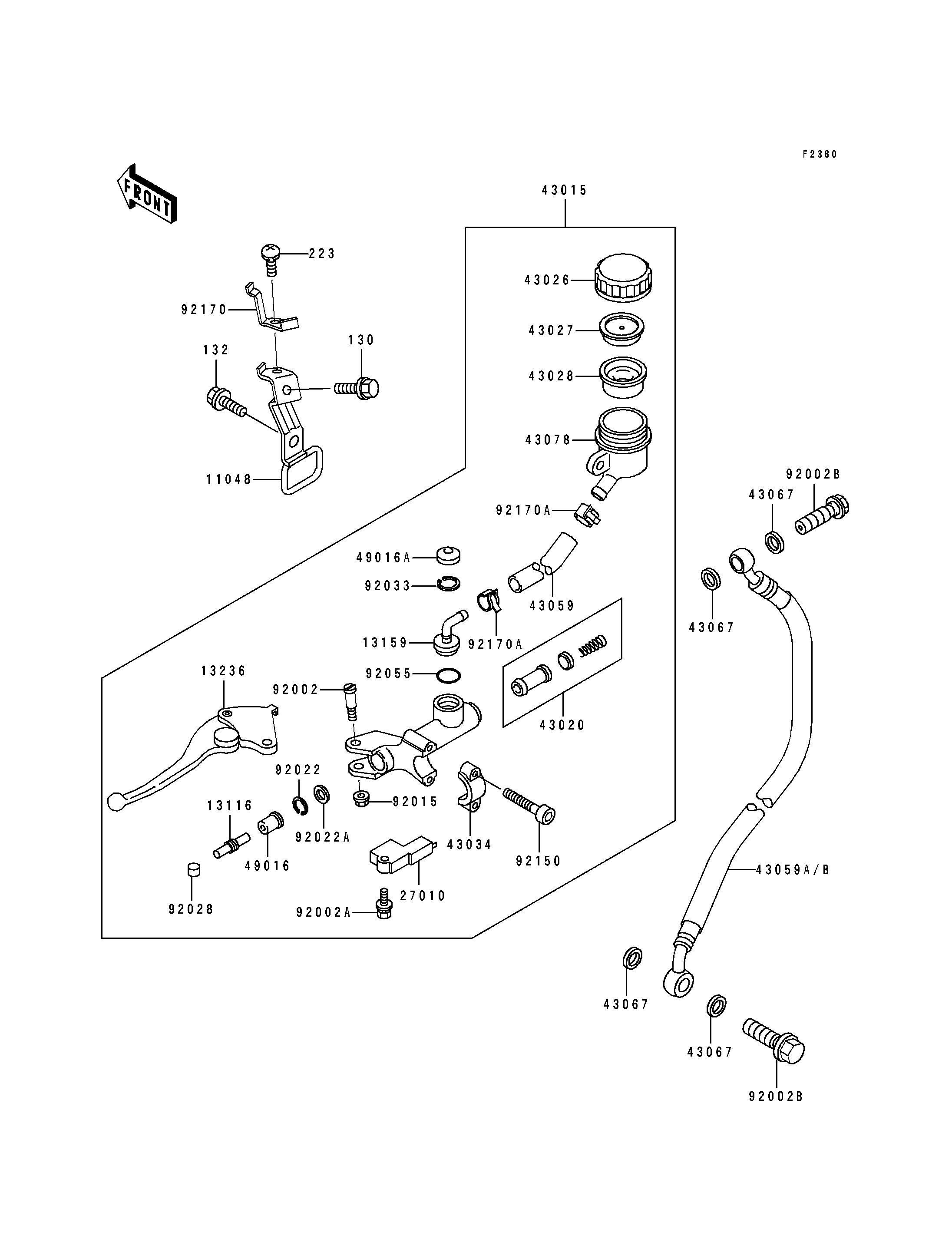

1993 Ninja® ZX™-7R - Clutch Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR TANK 11048 11048-1171 1
ROD-PUSH,MASTER CYLINDER 13116 13116-1110 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,CLUTCH 13236 13236-1186 1
SWITCH,CLUTCH 27010 27010-1171 1
CYLINDER-ASSY-MASTER,CLUTCH 43015 43015-1394 1
PISTON-COMP-BRAKE,CLUTCH 43020 43020-1055 1
CAP-BRAKE 43026 43026-1070 1
PLATE-DIAPHRAGM 43027 43027-1054 1
DIAPHRAGM 43028 43028-1073 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE 43059 43059-1548 1
HOSE-BRAKE,CLUTCH 43059A 43059-1768 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR 43078 43078-1102 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
COVER-SEAL 49016A 49016-1147 1
BOLT,LEVER SET 92002 92002-1322 1
BOLT 92002A 92002-1325 1
BOLT,OIL,L=23 92002B 92002-1888 2
NUT,FLANGED,6MM 92015 92015-1233 1
WASHER,PISTON 92022 92022-1605 1
WASHER,PISTON 92022A 92022-1606 1
BUSHING,MASTER CYLINDER 92028 92028-1310 1
RING-SNAP,20.5MM 92033 92033-1186 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT 92150 92150-1328 2
CLAMP 92170 92170-1087 1
CLAMP,HOSE 92170A 92170-1091 2
BOLT-FLANGED,6X14 130 130H0614 1
BOLT-FLANGED-SMALL 132 132J0612 1
SCREW-PAN-WS-CROS 223 223D0408 1
