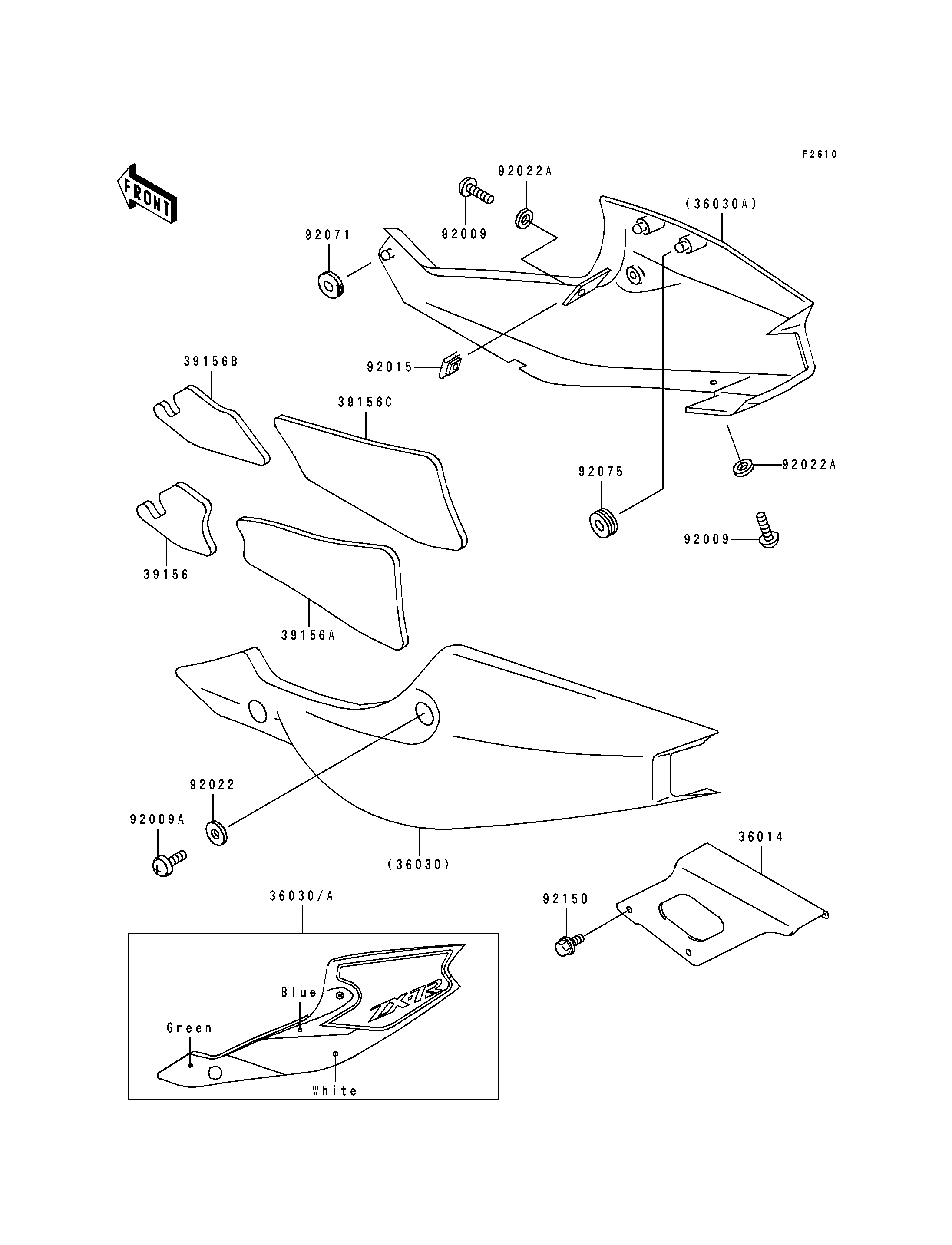

1994 Ninja® ZX-7R - Side Covers/Chain Cover

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-1176 1
COVER-SIDE,LH,GREEN/WHITE/BLUE 36030 36030-5159-KE 1
COVER-SIDE,RH,GREEN/WHITE/BLUE 36030A 36030-5160-KE 1
PAD,SIDE COVER,LH,FR 39156 39156-1339 1
PAD,SIDE COVER,LH,RR 39156A 39156-1340 1
PAD,SIDE COVER,RH,FR 39156B 39156-1341 1
PAD,SIDE COVER,RH,RR 39156C 39156-1342 1
SCREW,5X16 92009 92009-1654 4
SCREW,6X14 92009A 92009-1662 2
NUT,5MM 92015 92015-1798 2
WASHER,6.5X16X1 92022 92022-1143 2
WASHER,NYLON,5.3X11.5X1.5 92022A 92022-1521 4
GROMMET 92071 92071-1043 2
DAMPER 92075 92075-1629 4
BOLT,FLANGED,6X12 92150 92150-1235 2
