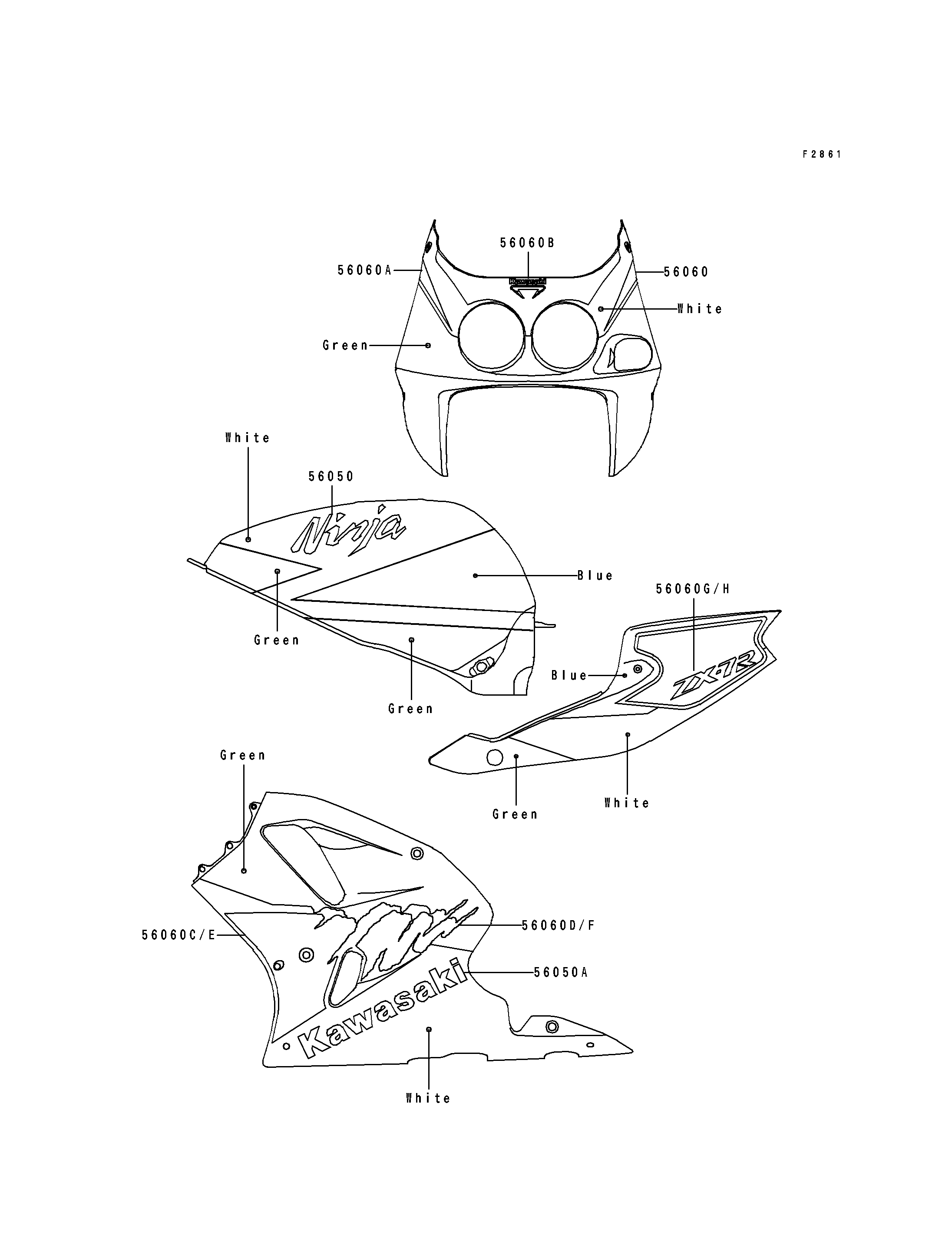

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,NINJA 56050 56050-1631 2
MARK,KAWASAKI 56050A 56050-1904 2
PATTERN,UPP COWLING,LH 56060 56060-1483 1
PATTERN,UPP COWLING,RH 56060A 56060-1484 1
PATTERN,UPP COWLING,CNT 56060B 56060-1485 1
PATTERN,LWR COWLING,FR,LH 56060C 56060-1486 1
PATTERN,LWR COWLING,RR,LH 56060D 56060-1487 1
PATTERN,LWR COWLING,FR,RH 56060E 56060-1488 1
PATTERN,LWR COWLING,RR,RH 56060F 56060-1489 1
PATTERN,SIDE COVER,LH 56060G 56060-1490 1
PATTERN,SIDE COVER,RH 56060H 56060-1491 1
