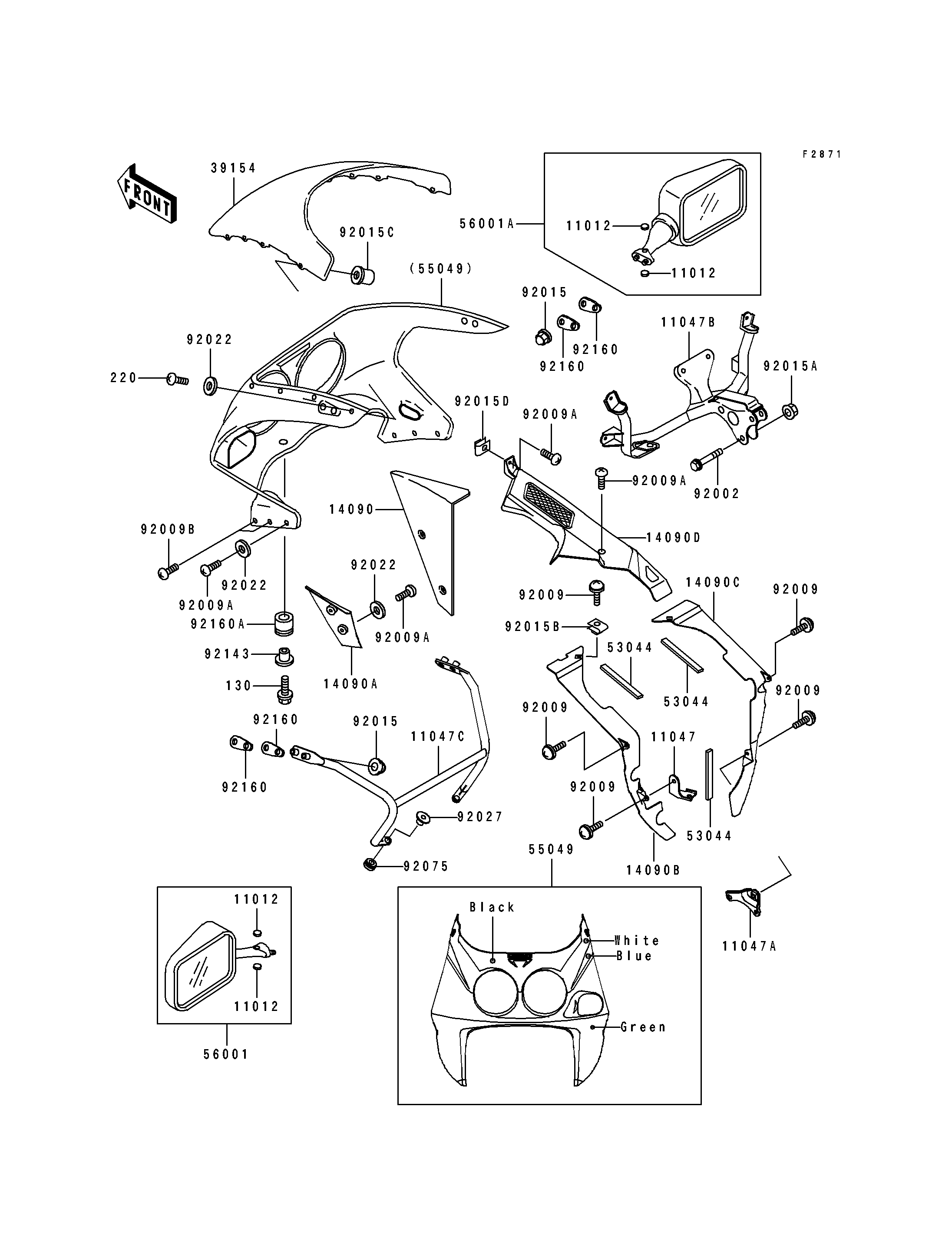

1993 Ninja® ZX™-7R - Cowling(ZX750-M1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,MIRROR 11012 11012-1818 4
BRACKET,INNER COWLING,LH 11047 11047-1856 1
BRACKET,INNER COWLING,RH 11047A 11047-1857 1
BRACKET,UPP COWLING 11047B 11047-1860 1
BRACKET,MIRROR 11047C 11047-1861 1
COVER,RADIATOR,RH 14090 14090-1236 1
COVER,RADIATOR,LH 14090A 14090-1237 1
COVER,INNER COWLING,LH 14090B 14090-1265 1
COVER,INNER COWLING,RH 14090C 14090-1266 1
COVER,INNER COWLING,FR,UPP 14090D 14090-1267 1
WINDSHIELD 39154 39154-1120 1
TRIM,L=150 53044 53044-1248 3
COWLING.,UPP,GREEN/WHITE 55049 55049-5144-CK 1
MIRROR-ASSY,LH,P.WHITE 56001 56001-1376-6F 1
MIRROR-ASSY,RH,P.WHITE 56001A 56001-1377-6F 1
BOLT,8X35 92002 92002-1198 2
SCREW,6X14 92009 92009-1555 6
SCREW,5X16 92009A 92009-1654 8
SCREW,5X20 92009B 92009-1656 4
NUT,CAP,6MM,BLACK 92015 92015-1170 4
NUT,CAP,8MM,BLACK 92015A 92015-1174 2
NUT,6MM 92015B 92015-1602 2
NUT,WELL,5MM 92015C 92015-1757 10
NUT,5MM 92015D 92015-1798 1
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 16
COLLAR 92027 92027-1767 2
DAMPER 92075 92075-277 2
COLLAR 92143 92143-1026 2
DAMPER,MIRROR 92160 92160-1089 4
DAMPER 92160A 92160-1141 2
BOLT-FLANGED,6X16,BLACK 130 130J0616 2
SCREW-PAN-CROS 220 220C0516 10
