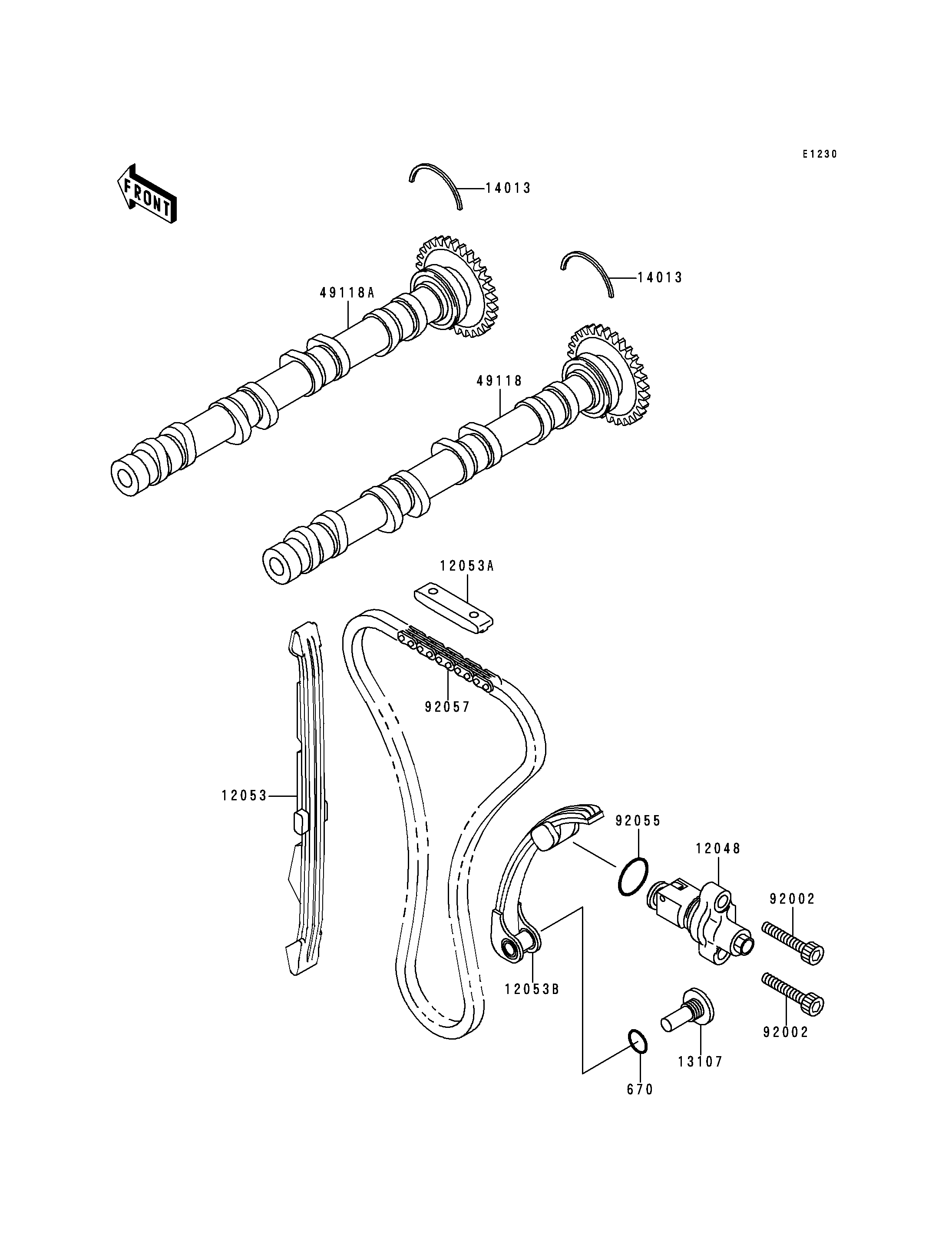

1997 Ninja® ZX-7RR - Camshaft(s)/Tensioner

670
12048
12053
12053A
12053B
13107
14013
14013
49118
49118A
92002
92002
92055
92057
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,14MM 670 670D2014 1
TENSIONER-ASSY 12048 12048-1120 1
GUIDE-CHAIN 12053 12053-1282 1
GUIDE-CHAIN 12053A 12053-1286 1
GUIDE-CHAIN 12053B 12053-1363 1
SHAFT 13107 13107-1280 1
RING-POSITION,CAMSHAFT 14013 14013-1057 2
CAMSHAFT-COMP,INTAKE 49118 49118-1134 1
CAMSHAFT-COMP,EXHAUST 49118A 49118-1135 1
BOLT,SOCKET,6X25 92002 92002-1696 2
RING-O 92055 92055-086 1
CHAIN,CAM,BF05-104L 92057 92057-1415 1
