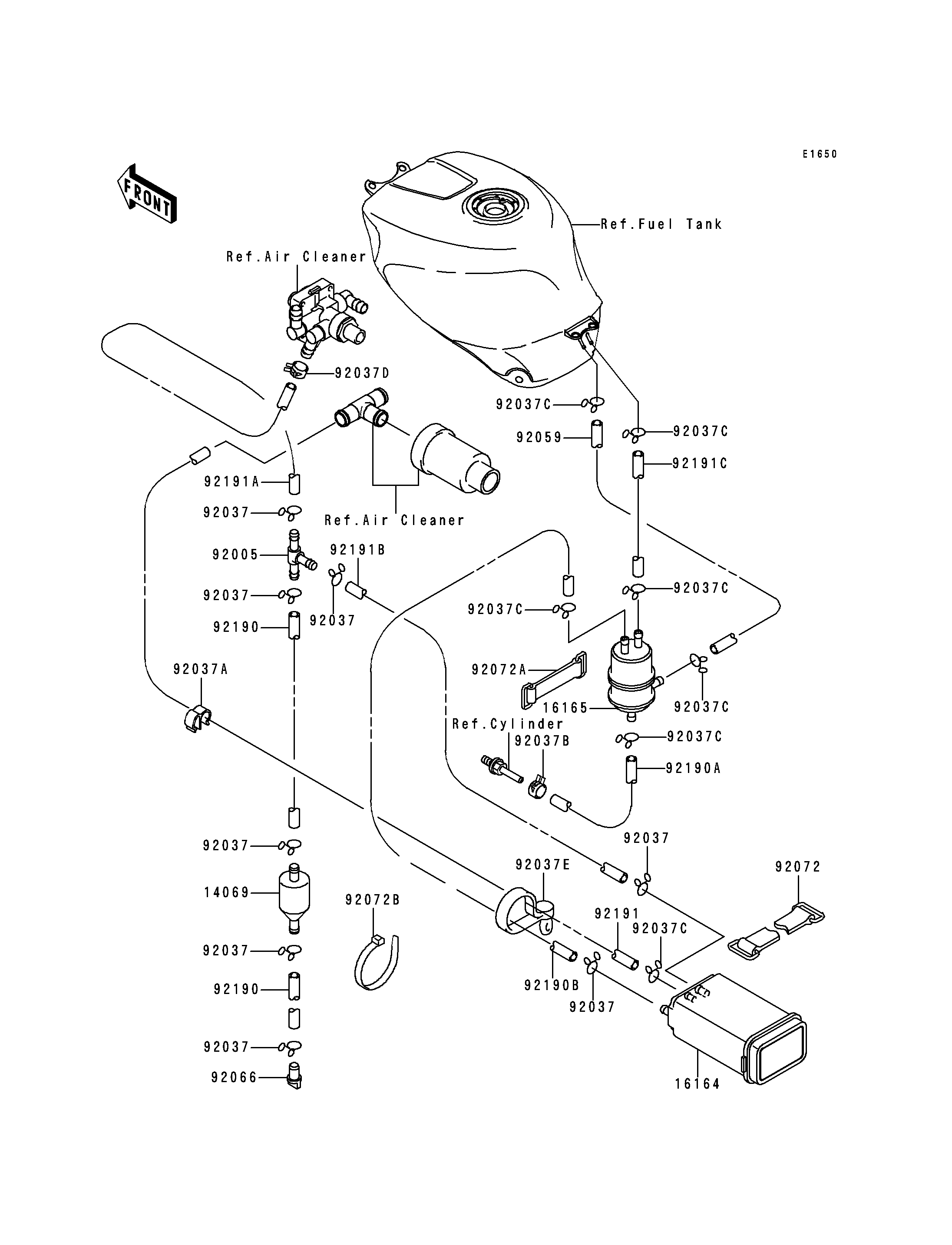

1996 Ninja® ZX™-7RR - Fuel Evaporative System
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BREATHER | 14069 | 14069-1051 | 1 | CA | |
CANISTER | 16164 | 16164-1064 | 1 | CA | |
SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
FITTING,T-TYPE | 92005 | 92005-1119 | 1 | CA | |
CLAMP,HOSE | 92037 | 92037-1104 | 8 | CA | |
CLAMP | 92037A | 92037-1458 | 1 | CA | |
CLAMP,TUBE | 92037B | 92037-1461 | 1 | CA | |
CLAMP,TUBE | 92037C | 92037-147 | 7 | CA | |
CLAMP | 92037D | 92037-1861 | 1 | CA | |
CLAMP | 92037E | 92037-1903 | 1 | CA | |
TUBE,5X10X230,RED | 92059 | 92059-1497 | 1 | CA | |
PLUG,DRAIN | 92066 | 92066-1211 | 1 | CA | |
BAND,L=142.1 | 92072 | 92072-006 | 1 | CA | |
BAND,L=50 | 92072A | 92072-066 | 1 | CA | |
BAND,L=185 | 92072B | 92072-1195 | 3 | CA | |
TUBE,7X12X160 | 92190 | 92190-1201 | 2 | CA | |
TUBE,5X10X438,WHITE | 92190A | 92190-1216 | 1 | CA | |
TUBE,5X10X668,BLUE | 92190B | 92190-1228 | 1 | CA | |
TUBE,GREEN | 92191 | 92191-1036 | 1 | CA | |
TUBE,YELLOW | 92191A | 92191-1037 | 1 | CA | |
TUBE,YELLOW | 92191B | 92191-1083 | 1 | CA | |
TUBE,5X10X120,BLUE | 92191C | 92191-1099 | 1 | CA |
BREATHER | |
REF # | 14069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CANISTER | |
REF # | 16164 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
SEPARATOR | |
REF # | 16165 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
FITTING,T-TYPE | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP,HOSE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | CA |
REMARKS |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP,TUBE | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP,TUBE | |
REF # | 92037C |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | CA |
REMARKS |
CLAMP | |
REF # | 92037D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP | |
REF # | 92037E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,5X10X230,RED | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
PLUG,DRAIN | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BAND,L=142.1 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BAND,L=50 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BAND,L=185 | |
REF # | 92072B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | CA |
REMARKS |
TUBE,7X12X160 | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | CA |
REMARKS |
TUBE,5X10X438,WHITE | |
REF # | 92190A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,5X10X668,BLUE | |
REF # | 92190B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,GREEN | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,YELLOW | |
REF # | 92191A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,YELLOW | |
REF # | 92191B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,5X10X120,BLUE | |
REF # | 92191C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
