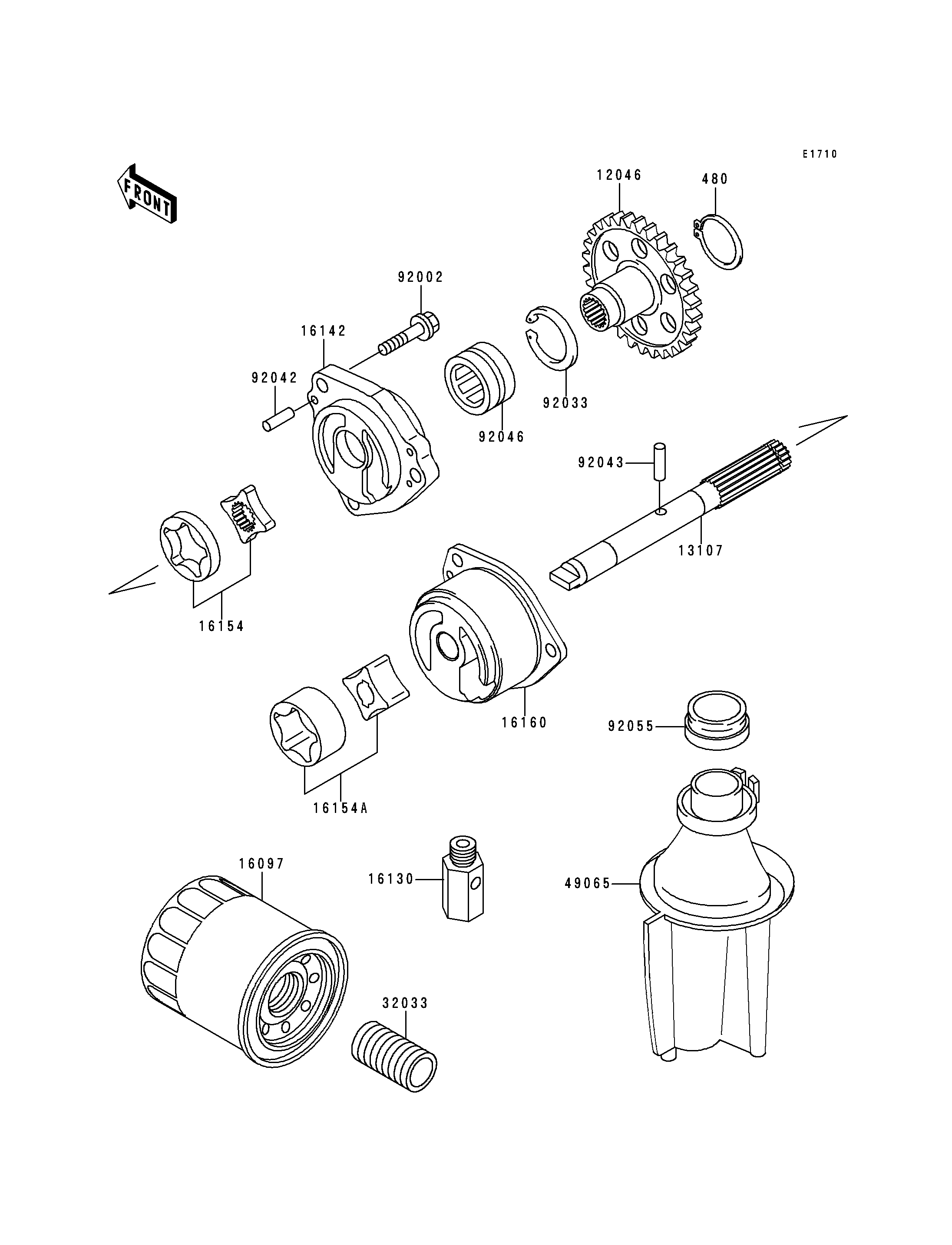

1997 Ninja® ZX™-7RR - Oil Pump/Oil Filter
480
12046
13107
16097
16130
16142
16154
16154A
16160
32033
49065
92002
92033
92042
92043
92046
92055
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP-TYPE-C,15MM | 480 | 480J1500 | 1 | ||
| SPROCKET,OIL PUMP,30T | 12046 | 12046-1123 | 1 | ||
| SHAFT,PUMP | 13107 | 13107-1339 | 1 | ||
| FILTER-ASSY-OIL | 16097 | 16097-1063 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-1058 | 2 | ||
| COVER-PUMP | 16142 | 16142-1110 | 1 | ||
| ROTOR-PUMP | 16154 | 16154-1090 | 1 | ||
| ROTOR-PUMP | 16154A | 16154-1107 | 1 | ||
| BODY,OIL PUMP | 16160 | 16160-1229 | 1 | ||
| PIPE,OIL FILTER | 32033 | 32033-1535 | 1 | ||
| FILTER-OIL | 49065 | 49065-1074 | 1 | ||
| BOLT,6X25 | 92002 | 92002-1582 | 3 | ||
| RING-SNAP | 92033 | 92033-1277 | 1 | ||
| PIN,DOWEL,4X15.8 | 92042 | 92042-014 | 1 | ||
| PIN,17.9X5.0 | 92043 | 92043-1444 | 1 | ||
| BEARING-NEEDLE,RNA4903 | 92046 | 92046-1109 | 1 | ||
| RING-O,OIL FILTER | 92055 | 92055-1503 | 1 |
| CIRCLIP-TYPE-C,15MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,OIL PUMP,30T | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,PUMP | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-ASSY-OIL | |
| REF # | 16097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-RELIEF | |
| REF # | 16130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP | |
| REF # | 16142 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR-PUMP | |
| REF # | 16154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR-PUMP | |
| REF # | 16154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY,OIL PUMP | |
| REF # | 16160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE,OIL FILTER | |
| REF # | 32033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-OIL | |
| REF # | 49065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,4X15.8 | |
| REF # | 92042 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,17.9X5.0 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,RNA4903 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,OIL FILTER | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
