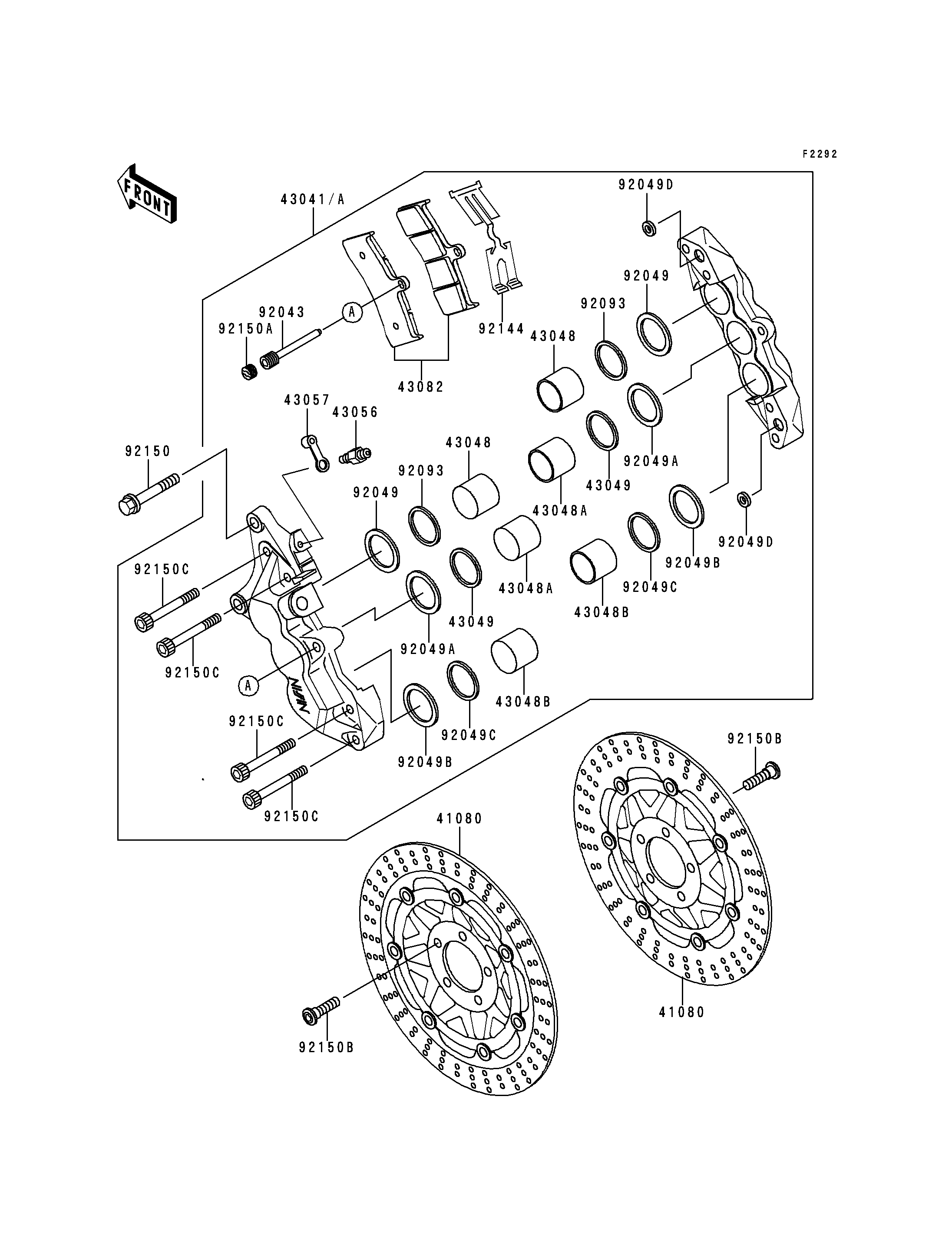

1997 Ninja® ZX™-7RR - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
41080
41080
43041
43041A
43048
43048
43048A
43048A
43048B
43048B
43049
43049
43056
43057
43082
92043
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
92049D
92049D
92093
92093
92144
92150
92150A
92150B
92150B
92150C
92150C
92150C
92150C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR,GRAY 41080 41080-1408-FF 2
CALIPER-ASSY,FR,LH 43041 43041-1584 1
CALIPER-ASSY,FR,RH 43041A 43041-1585 1
PISTON-CALIPER 43048 43048-1074 4
PISTON-CALIPER 43048A 43048-1075 4
PISTON-CALIPER 43048B 43048-1076 4
PACKING 43049 43049-1064 4
BREATHER-BRAKE 43056 43056-1055 2
CAP-BREATHER 43057 43057-1001 2
PAD-ASSY-BRAKE 43082 43082-1181 2
PIN,HANGER 92043 92043-1520 2
SEAL-OIL 92049 92049-1442 4
SEAL-OIL 92049A 92049-1443 4
SEAL-OIL 92049B 92049-1444 4
SEAL-OIL 92049C 92049-1447 4
SEAL-OIL 92049D 92049-1448 4
SEAL,PISTON 92093 92093-1272 4
SPRING,PAD 92144 92144-1901 2
BOLT,FLANGED,10X38 92150 92150-1297 4
BOLT,PLUG 92150A 92150-1692 2
BOLT,SOCKET,8X30 92150B 92150-1771 10
BOLT 92150C 92150-1971 8
