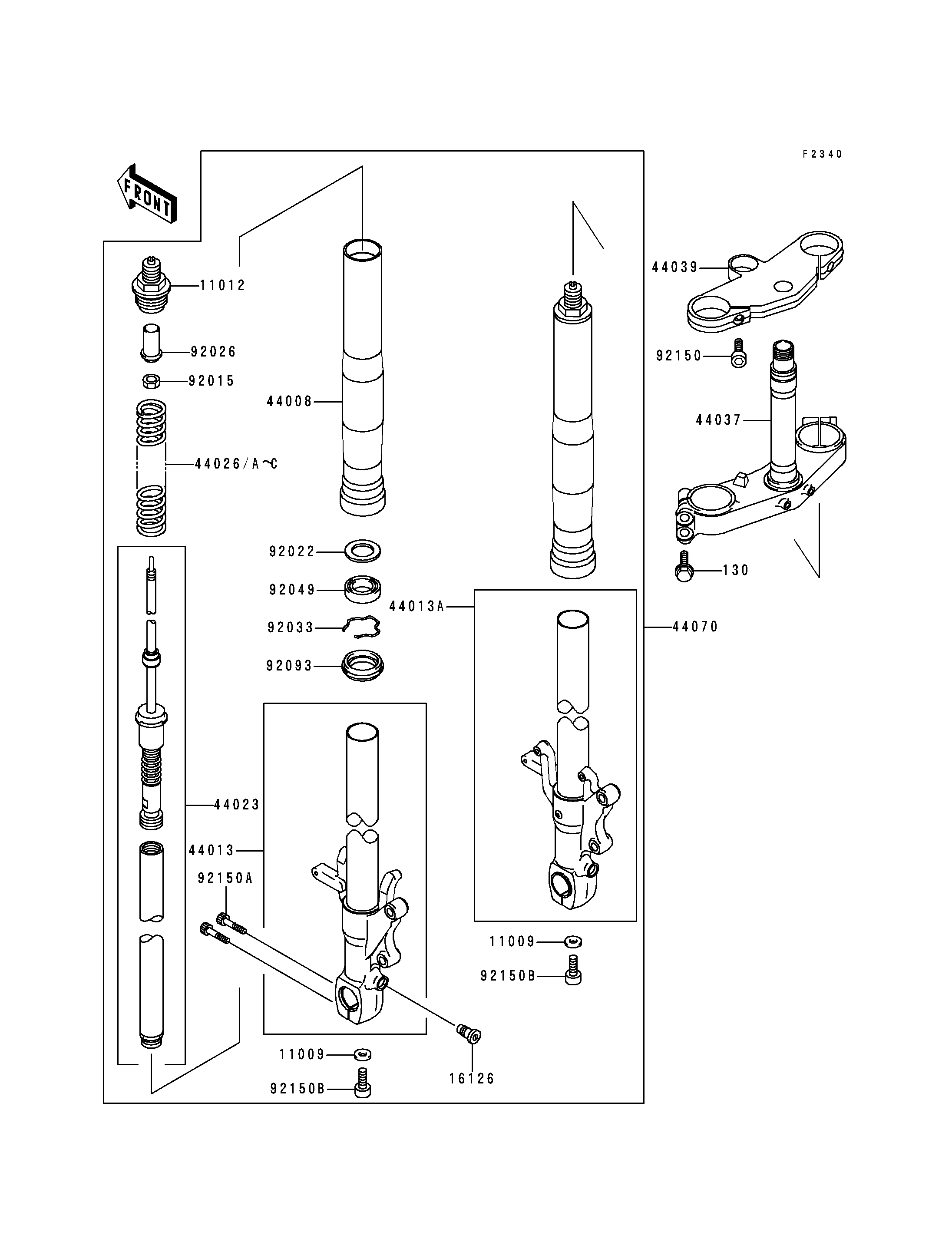

1997 Ninja® ZX™-7RR - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
130
11009
11009
11012
16126
44008
44013
44013A
44023
44026
44026A
44026B
44026C
44037
44039
44070
92015
92022
92026
92033
92049
92093
92150
92150A
92150B
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X40 130 130G0840 4
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
CAP,FORK 11012 11012-1967 2
VALVE,FORK 16126 16126-1312 2
PIPE-FORK OUTER,A.BRONZE 44008 44008-1040-JS 2
PIPE-FORK INNER,LH,SILVER 44013 44013-1424-KF 1
PIPE-FORK INNER,RH,SILVER 44013A 44013-1425-KF 1
CYLINDER-COMP-FORK 44023 44023-1101 2
SPRING-FRONT FORK,K=0.95/1.2 44026 44026-1609 2
SPRING-FRONT FORK,K=0.9 44026A 44026-1627 2 (OPTION)
SPRING-FRONT FORK,K=0.95 44026B 44026-1628 2 (OPTION)
SPRING-FRONT FORK,K=1.0 44026C 44026-1629 2 (OPTION)
HOLDER-FORK UNDER 44037 44037-1340 1
HOLDER-FORK UPPER 44039 44039-1264 1
DAMPER-ASSY,FORK,SILVER 44070 44070-1489-KF 1
NUT 92015 92015-1795 2
WASHER 92022 92022-1299 2
SPACER,FORK 92026 92026-1477 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1456 2
SEAL,FORK OUTER TUBE 92093 92093-1415 2
BOLT,SOCKET,8X25 92150 92150-1172 2
BOLT,SOCKET,8X40 92150A 92150-1194 4
BOLT,12X22 92150B 92150-1398 2
