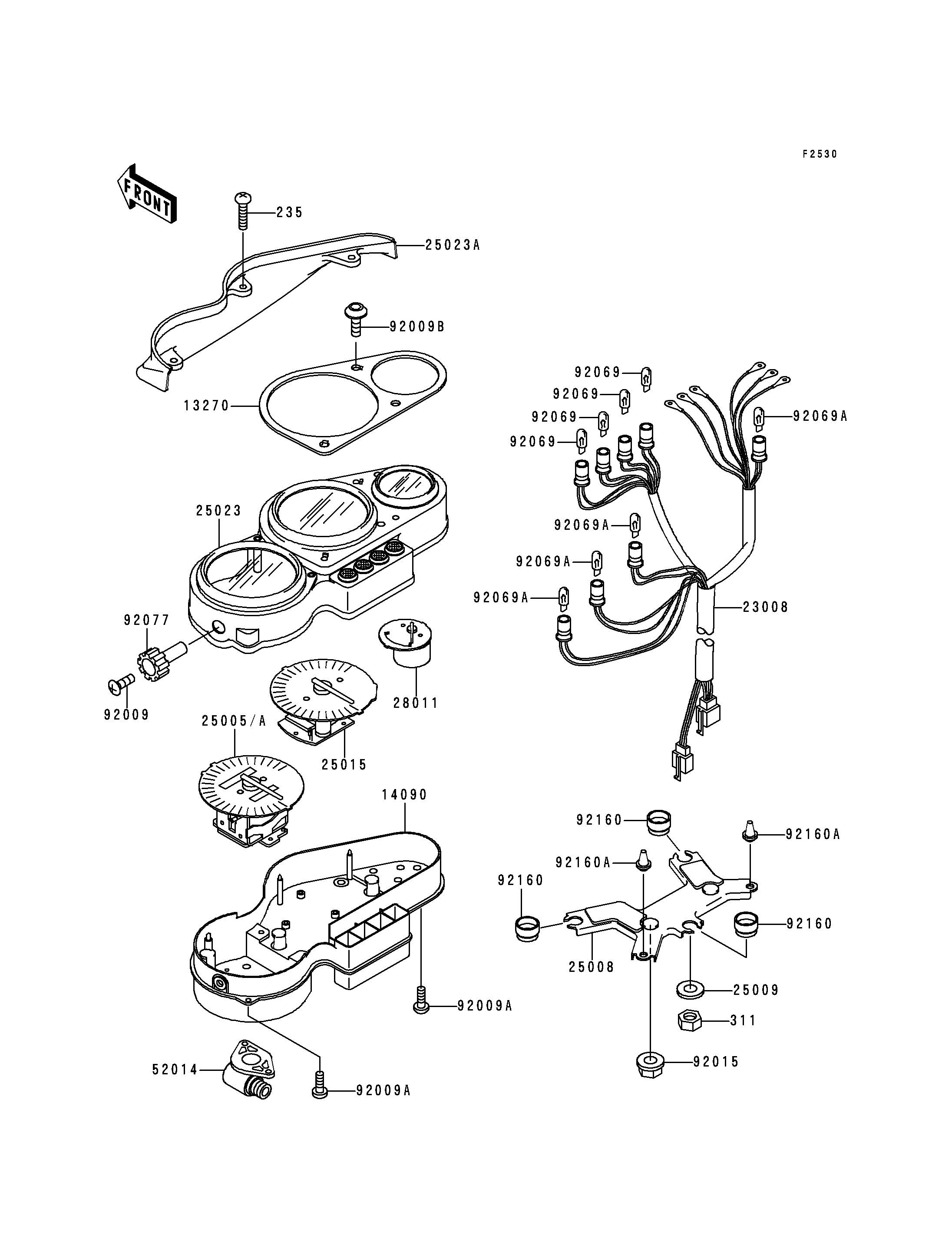

1997 Ninja® ZX™-7RR - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
235
311
13270
14090
23008
25005
25008
25009
25015
25023
25023A
28011
52014
92009
92009A
92009A
92009B
92015
92069
92069
92069
92069
92069A
92069A
92069A
92069A
92077
92160
92160
92160
92160A
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS 235 235C0412 3
NUT-HEX 311 311C0500 3
PLATE,METER 13270 13270-1524 1
COVER,METER HOUSING 14090 14090-1648 1
SOCKET-ASSY,METER 23008 23008-1560 1
SPEEDOMETER,KPH 25005 25005-1596 1
BRACKET-METER 25008 25008-1214 1
WASHER,5.2X16X1.2 25009 25009-004 3
TACHOMETER,X1000R/MIN 25015 25015-1339 1
COVER-METER CASE,UPP 25023 25023-1223 1
COVER-METER CASE 25023A 25023-1225 1
METER,TEMP 28011 28011-1155 1
ELBOW 52014 52014-1081 1
SCREW,2X6,BLACK 92009 92009-1172 1
SCREW,TAPPING,4X14 92009A 92009-1593 5
SCREW,TAPPING,5X16 92009B 92009-1720 3
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
BULB,12V 3.4W 92069 92069-1007 4
BULB,12V 1.7W 92069A 92069-1059 4
KNOB,METER 92077 92077-1073 1
DAMPER 92160 92160-1668 3
DAMPER 92160A 92160-1669 2
