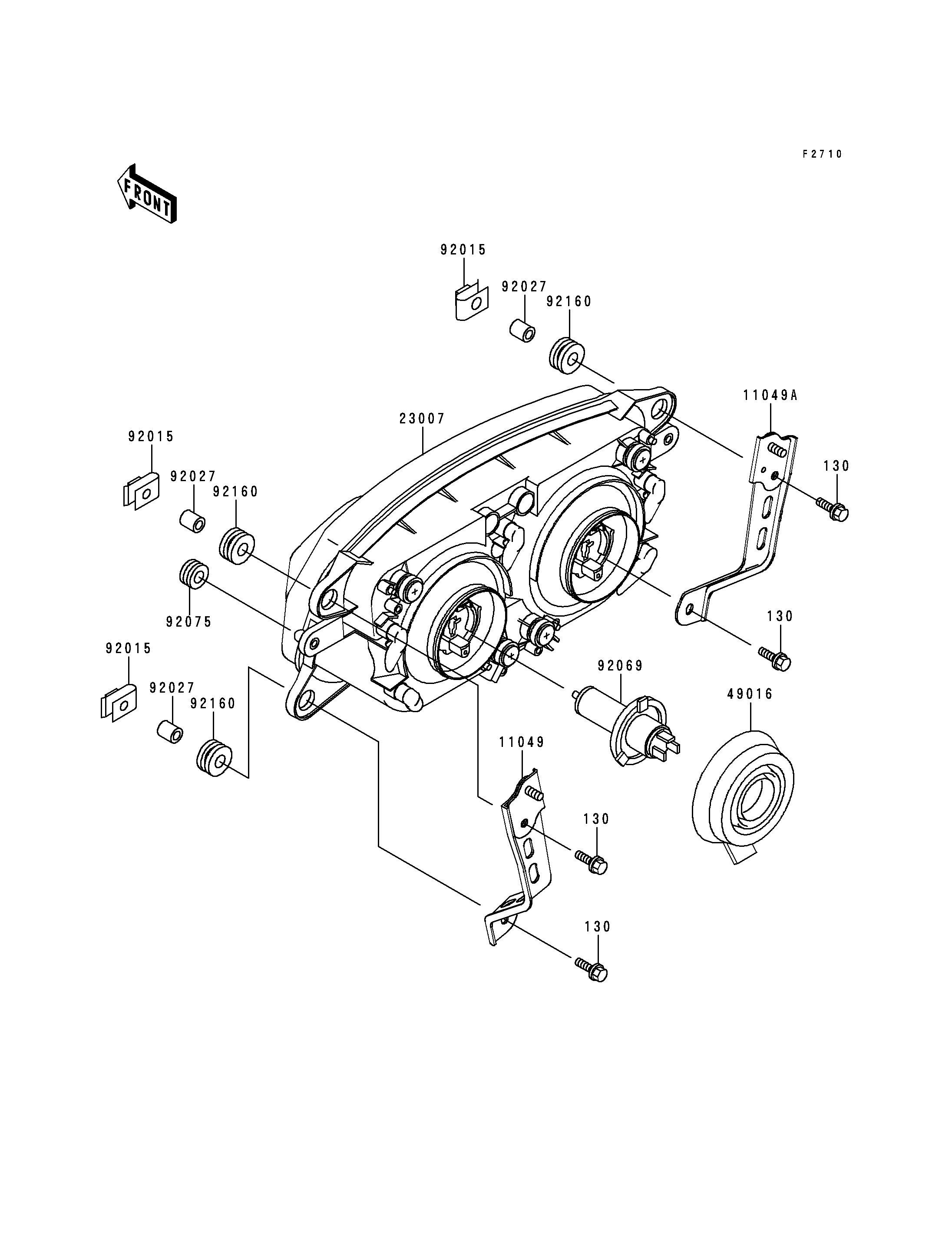

1997 Ninja® ZX™-7RR - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
11049
11049A
23007
49016
92015
92015
92015
92027
92027
92027
92069
92075
92160
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 4
BRACKET,HEAD LAMP,LH 11049 11049-1340 1
BRACKET,HEAD LAMP,RH 11049A 11049-1341 1
LENS-COMP,HEAD LAMP 23007 23007-1336 1
COVER-SEAL,HEAD LAMP SOCKET 49016 49016-1137 2
NUT,6MM 92015 92015-1094 4
COLLAR,6.8X10X12 92027 92027-162 4
BULB,12V 45/45W,H4 92069 92069-1104 2
DAMPER 92075 92075-1912 2
DAMPER 92160 92160-1162 4
