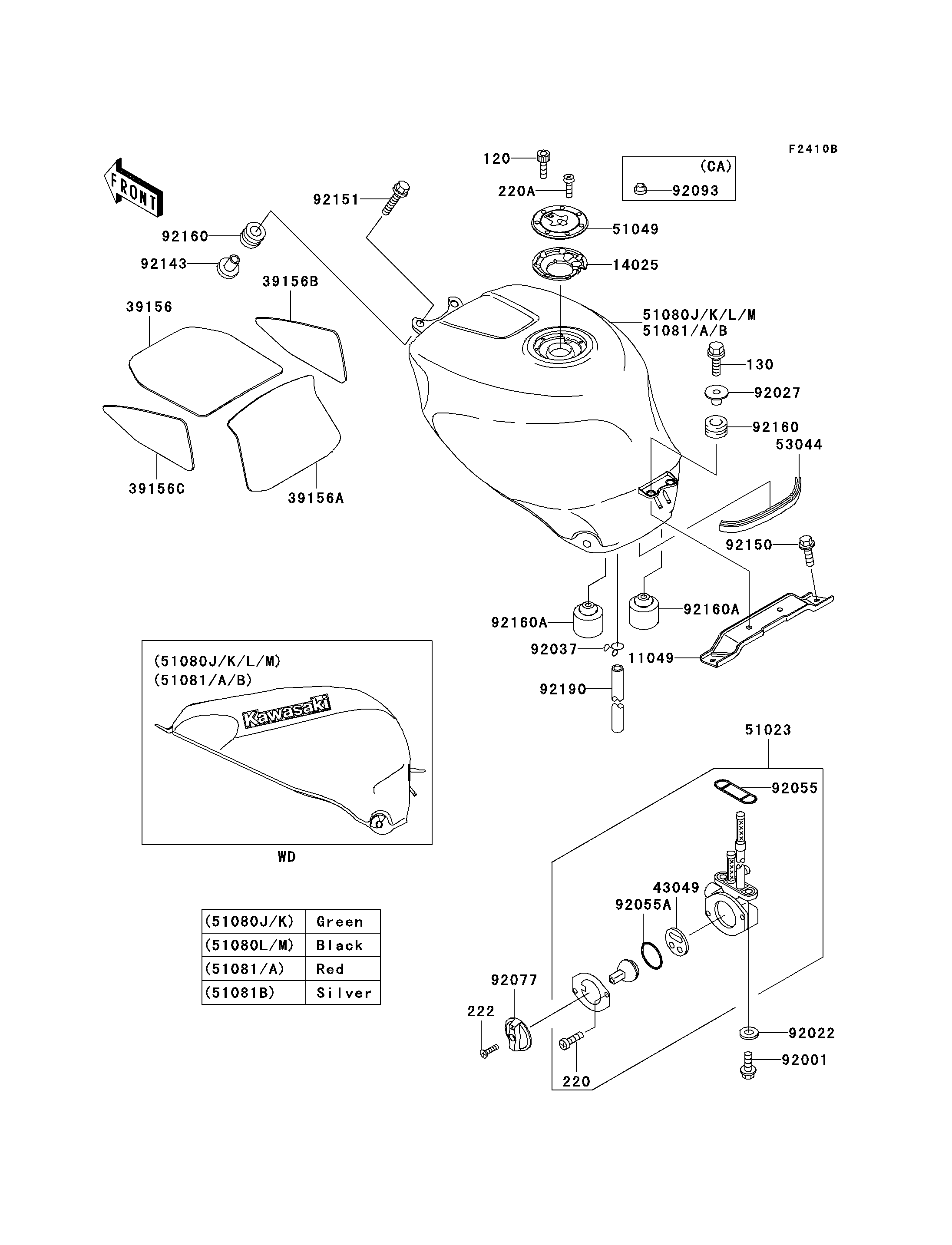

1998 Ninja® ZX™-7R - Fuel Tank(ZX750-P3/P4)

DOWNLOAD PDF
SELECT A NEW PART
11049
11049
14025
14025
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
43049
43049
51023
51023
51049
51049
120
120
130
130
220
220
220A
220A
222
222
53044
53044
92001
92001
92022
92022
92027
92027
92037
92037
92055
92055
92055A
92055A
92077
92077
92143
92143
92150
92150
92151
92151
92160
92160
92160
92160
92160A
92160A
92160A
92160A
92190
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK,RR 11049 11049-1866 1
COVER,TANK CAP 14025 14025-1913 1
PAD,FUEL TANK,FR 39156 39156-1312 1
PAD,FUEL TANK,RR 39156A 39156-1313 1
PAD,FUEL TANK,SIDE,RH 39156B 39156-1314 1
PAD,FUEL TANK,SIDE,LH 39156C 39156-1315 1
PACKING,TAP VALVE 43049 43049-1066 1
TAP-ASSY,FUEL 51023 51023-1221 1
CAP-TANK,FUEL 51049 51049-1091 1
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,6X25 130 130J0625 2
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROS 220A 220C0508 1
SCREW-CSK-RD-CROS 222 222C0412 1
TRIM 53044 53044-1296 1
BOLT,6X20 92001 92001-1091 2
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,L=14.1 92027 92027-1920 2
CLAMP,TUBE 92037 92037-147 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
KNOB,FUEL TAP 92077 92077-1120 1
COLLAR 92143 92143-1515 2
BOLT,FLANGED,6X20 92150 92150-1633 2
BOLT,FLANGED,6X30 92151 92151-1105 2
DAMPER 92160 92160-1162 4
DAMPER 92160A 92160-1513 2
TUBE,DRAIN 92190 92190-1418 1
TANK-COMP-FUEL,L.GREEN 51080J 51080-5408-7F 1 CNUS
TANK-COMP-FUEL,L.GREEN 51080K 51080-5429-7F 1 CA
TANK-COMP-FUEL,P.P.BLACK MICA 51080L 51080-5434-20 1 CNUS
TANK-COMP-FUEL,P.P.BLACK MICA 51080M 51080-5435-20 1 CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
