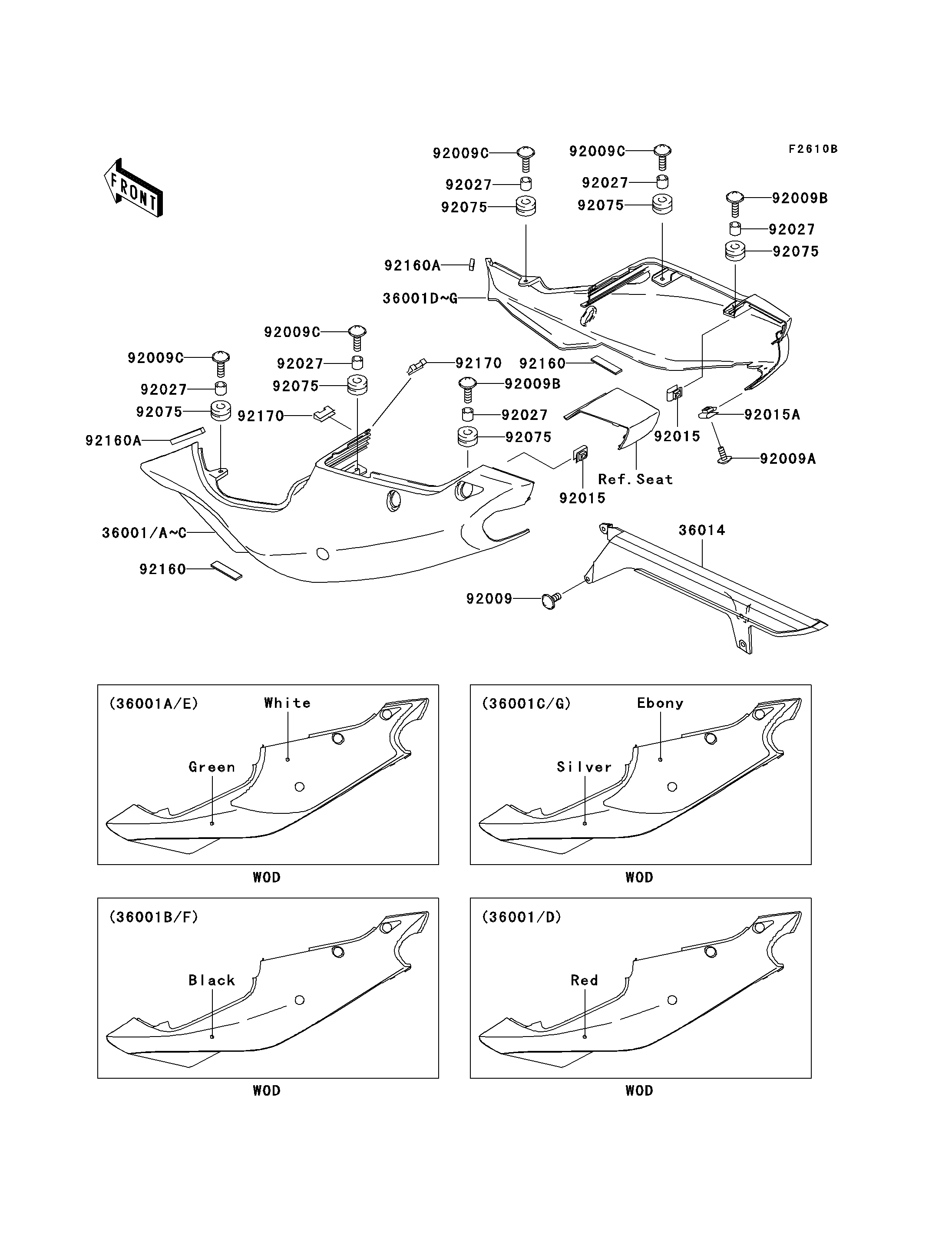

1998 Ninja® ZX™-7R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001A
36001B
36001E
36001F
36014
92009
92009A
92009B
92009B
92009C
92009C
92009C
92009C
92015
92015
92015A
92027
92027
92027
92027
92027
92027
92075
92075
92075
92075
92075
92075
92160
92160
92160A
92160A
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,GREEN/WHITE 36001A 36001-1557-CK 1
COVER-SIDE,LH,P.P.BLACK MICA 36001B 36001-1557-20 1
COVER-SIDE,RH,GREEN/WHITE 36001E 36001-1558-CK 1
COVER-SIDE,RH,P.P.BLACK MICA 36001F 36001-1558-20 1
CASE-CHAIN 36014 36014-1200 1
SCREW,6X10 92009 92009-1402 4
SCREW,5X14 92009A 92009-1653 1
SCREW,6X18 92009B 92009-1663 2
SCREW,6X22 92009C 92009-1664 4
NUT,5MM 92015 92015-1798 2
NUT,5MM 92015A 92015-1996 1
COLLAR,6.8X10X8.5 92027 92027-129 6
DAMPER 92075 92075-1634 6
DAMPER 92160 92160-1099 2
DAMPER 92160A 92160-1800 2
CLAMP 92170 92170-1440 2
