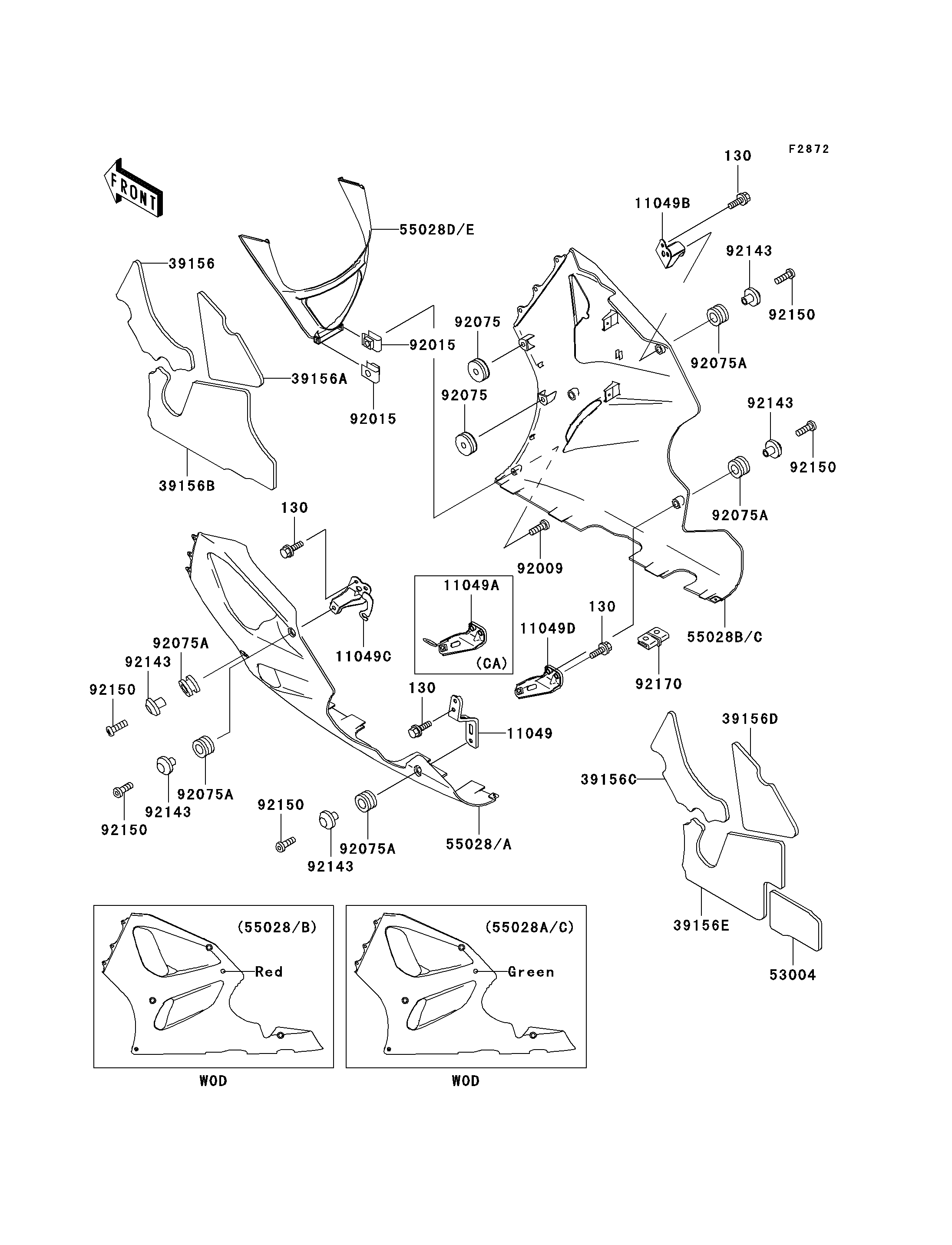

1996 Ninja® ZX™-7R - Cowling Lowers(ZX750-P1)
11049
11049
11049B
11049B
11049C
11049C
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
53004
53004
55028
55028
55028A
55028A
55028B
55028B
55028C
55028C
55028D
55028D
55028E
55028E
92009
92009
130
130
130
130
130
130
130
130
92015
92015
92015
92015
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150
92170
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LWR COWLING,LH,LWR | 11049 | 11049-1329 | 1 | ||
| BRACKET,LWR COWLING,RH,UPP | 11049B | 11049-1390 | 1 | ||
| BRACKET,LWR COWLING,LH,UPP | 11049C | 11049-1417 | 1 | ||
| PAD,LWR COWLING,LH,UPP,FR | 39156 | 39156-1517 | 1 | ||
| PAD,LWR COWLING,LH,UPP,RR | 39156A | 39156-1518 | 1 | ||
| PAD,LWR COWLING,LH,LWR | 39156B | 39156-1519 | 1 | ||
| PAD,LWR COWLING,RH,UPP,FR | 39156C | 39156-1520 | 1 | ||
| PAD,LWR COWLING,RH,UPP,RR | 39156D | 39156-1521 | 1 | ||
| PAD,LWR COWLING,RH,LWR | 39156E | 39156-1522 | 1 | ||
| MAT,LWR COWLING,RH | 53004 | 53004-1098 | 1 | ||
| COWLING,LWR,LH,C.P.RED | 55028 | 55028-1344-A5 | 1 | ||
| COWLING,LWR,LH,L.GREEN | 55028A | 55028-1344-7F | 1 | ||
| COWLING,LWR,RH,C.P.RED | 55028B | 55028-1345-A5 | 1 | ||
| COWLING,LWR,RH,L.GREEN | 55028C | 55028-1345-7F | 1 | ||
| COWLING,LWR,FR,C.P.RED | 55028D | 55028-1346-A5 | 1 | ||
| COWLING,LWR,FR,L.GREEN | 55028E | 55028-1346-7F | 1 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 2 | ||
| BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 8 | ||
| NUT,5MM | 92015 | 92015-1798 | 2 | ||
| DAMPER | 92075 | 92075-1067 | 4 | ||
| DAMPER | 92075A | 92075-1634 | 6 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 6 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 6 | ||
| CLAMP | 92170 | 92170-1230 | 1 | ||
| BRACKET,LWR COWLING,RH,LWR | 11049A | 11049-1389 | 1 | CA | |
| BRACKET,LWR COWLING,RH,LWR | 11049D | 11049-1867 | 1 | CNUS |
