132
132
11012
11012
11060
11060A
12021
12021
14090
32151
92055
92055A
92055A
92055A
92150

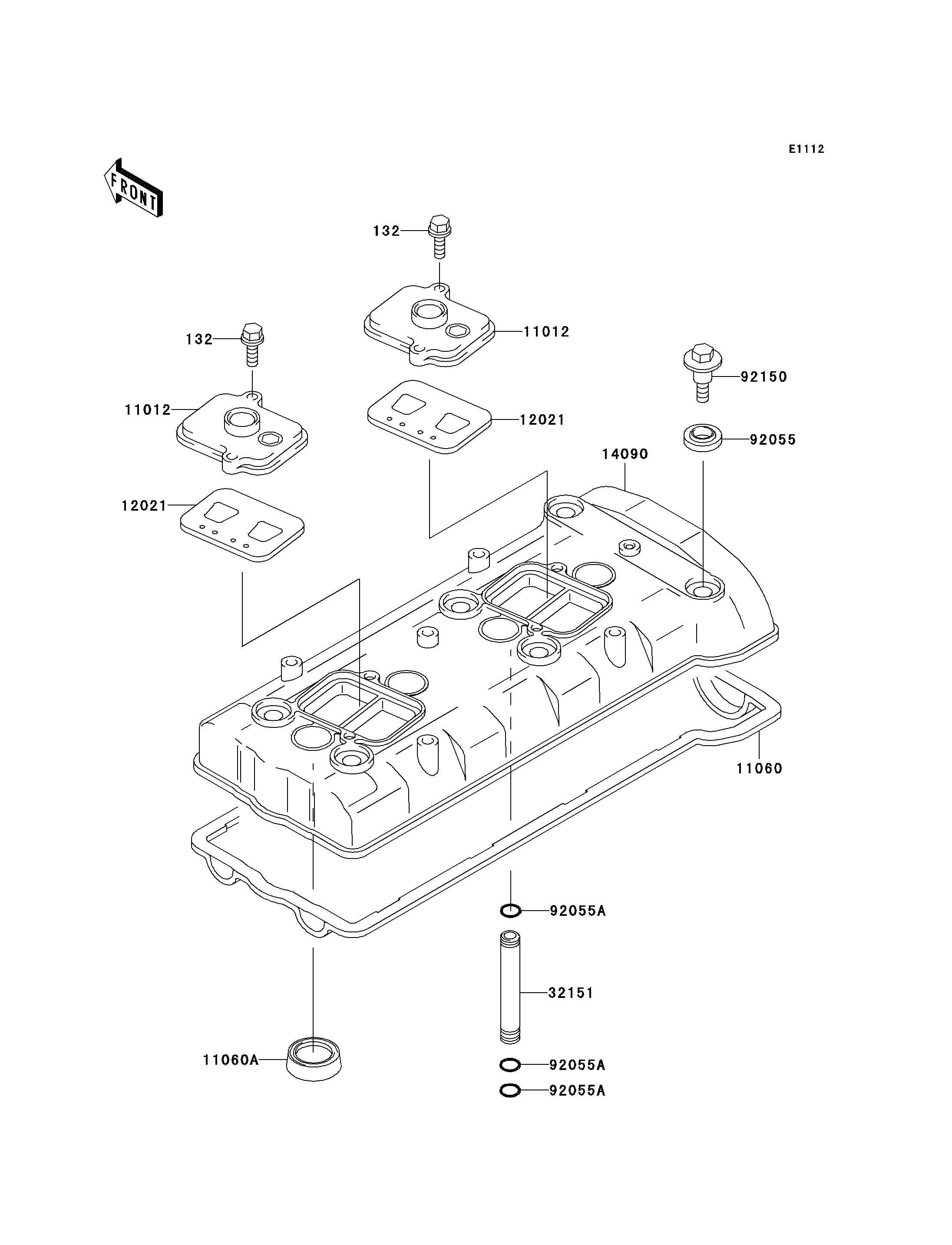

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132Y0620 4
CAP,REED VALVE 11012 11012-1943 2
GASKET,HEAD COVER 11060 11060-1706 1
GASKET 11060A 11060-1763 4
VALVE-ASSY-REED 12021 12021-1119 2
COVER,HEAD 14090 14090-1638 1
PIPE 32151 32151-1608 4
RING-O,HEAD COVER BOLT 92055 92055-1352 6
RING-O,9X1.5 92055A 92055-1509 12
BOLT,HEAD COVER 92150 92150-1447 6
