Parts Diagrams
OWNER CENTER |
![customer service agent speaking with a customer](/Content/Images/owner-header-mobile.jpg)
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11010
11010
11013
11013
13070
13070
13091
13091
13091
13091
13091A
13091A
14037
14037
14037A
14037A
14037A
14037A
14073
14073
14073A
14073A
14073B
14073B
14073C
14073C
14073D
14073D
14090
14090
14090A
14090A
16126
16126
16126A
16126A
16181
16181
16181A
16181A
32152
32152
39162
39162
53044
53044
53044A
53044A
92005
92005
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009C
92009C
92009C
92009C
92015
92015
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92022
92022
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92037B
92037B
92037C
92037C
92037D
92037D
92037D
92037D
130
130
130A
130A
92055
92055
92066
92066
92066A
92066A
92071
92071
92071A
92071A
92093
92093
92093A
92093A
92093B
92093B
92093C
92093C
92093D
92093D
92093E
92093E
92093F
92093F
92093F
92093F
92144
92144
92144
92144
92144
92144
92144
92144
92150
92150
92151
92151
92160
92160
92170
92170
92170
92170
92170
92170
92190
92190
92190
92190
92190A
92190A
92190B
92190B
92190C
92190C
92190D
92190D
92191
92191
92191A
92191A
92191B
92191B
92191C
92191C
92191D
92191D
92200
92200
92200
92200

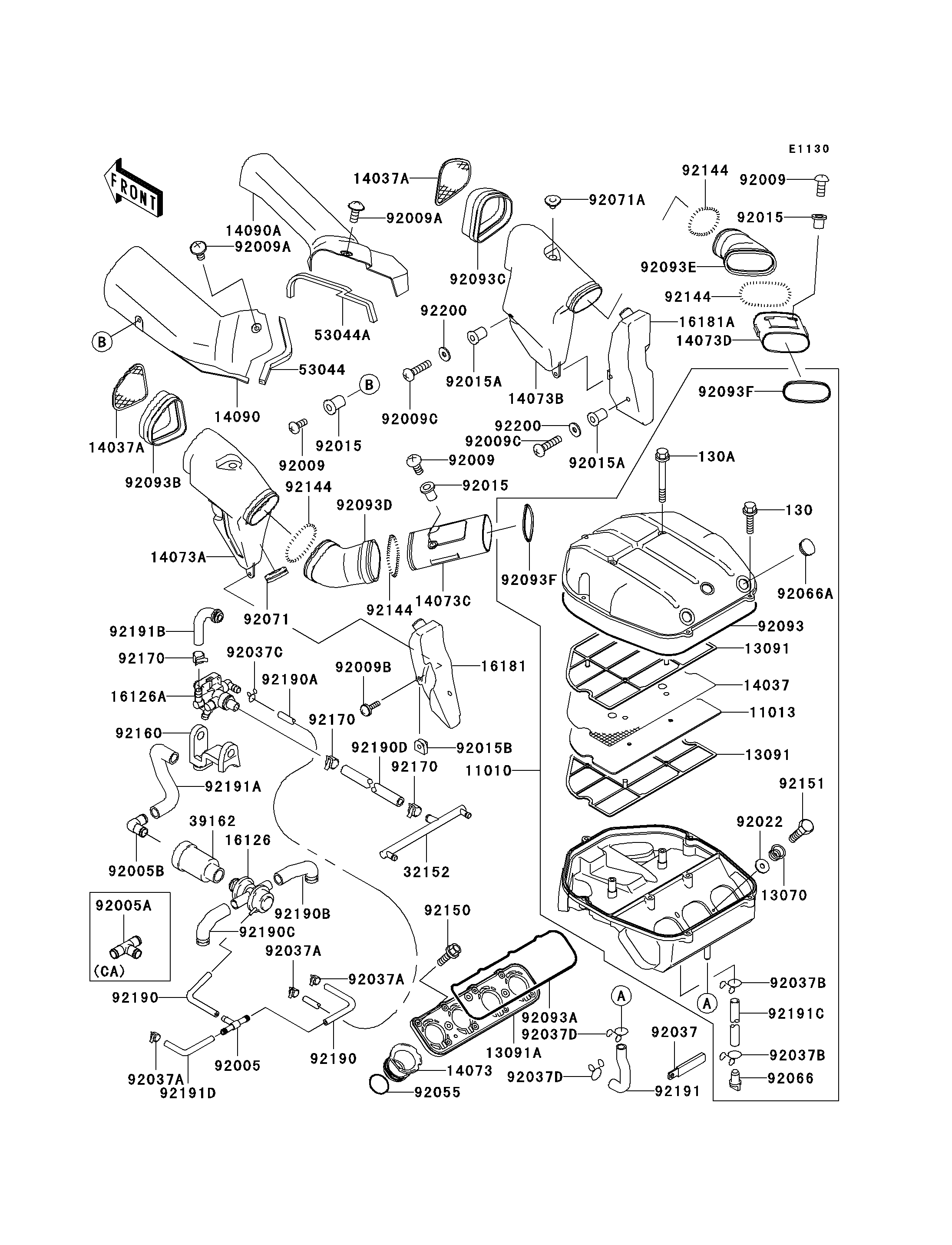

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FILTER-ASSY-AIR | 11010 | 11010-1563 | 1 | ||
ELEMENT-AIR FILTER | 11013 | 11013-1244 | 1 | ||
GUIDE | 13070 | 13070-1300 | 3 | ||
HOLDER,ELEMENT | 13091 | 13091-1933 | 2 | ||
HOLDER | 13091A | 13091-1934 | 1 | ||
SCREEN,AIR FILTER | 14037 | 14037-1212 | 1 | ||
SCREEN,FILTER | 14037A | 14037-1213 | 2 | ||
DUCT | 14073 | 14073-1640 | 4 | ||
DUCT,LH,#1 | 14073A | 14073-1643 | 1 | ||
DUCT,RH,#1 | 14073B | 14073-1644 | 1 | ||
DUCT,LH,#2 | 14073C | 14073-1645 | 1 | ||
DUCT,RH,#2 | 14073D | 14073-1646 | 1 | ||
COVER,LH | 14090 | 14090-1644 | 1 | ||
COVER,RH | 14090A | 14090-1645 | 1 | ||
VALVE,AIR SWITCH | 16126 | 16126-1104 | 1 | ||
VALVE | 16126A | 16126-1305 | 1 | ||
TANK-RESONATOR,LH | 16181 | 16181-1085 | 1 | ||
TANK-RESONATOR,RH | 16181A | 16181-1086 | 1 | ||
PIPE | 32152 | 32152-1042 | 1 | ||
SILENCER-INTAKE | 39162 | 39162-1084 | 1 | ||
TRIM,AIR DUCT COVER | 53044 | 53044-1265 | 1 | ||
TRIM | 53044A | 53044-1296 | 1 | ||
FITTING,TUBE,T-TYPE | 92005 | 92005-1017 | 1 | ||
SCREW,6X18,BLACK | 92009 | 92009-1181 | 4 | ||
SCREW,6X10 | 92009A | 92009-1402 | 2 | ||
SCREW,6X16 | 92009B | 92009-1621 | 2 | ||
SCREW,5X20,BLACK | 92009C | 92009-1656 | 4 | ||
NUT | 92015 | 92015-1700 | 4 | ||
NUT,WELL,5MM | 92015A | 92015-1757 | 4 | ||
NUT,CLIP,6MM | 92015B | 92015-1904 | 2 | ||
WASHER,6.5X20X1.6 | 92022 | 92022-1557 | 3 | ||
CLAMP,WIRING HARNESS,L=60 | 92037 | 92037-1069 | 1 | ||
CLAMP,TUBE | 92037A | 92037-1461 | 3 | ||
CLAMP,TUBE | 92037B | 92037-147 | 2 | ||
CLAMP | 92037C | 92037-1712 | 1 | ||
CLAMP,TUBE | 92037D | 92037-213 | 2 | ||
BOLT-FLANGED,6X25 | 130 | 130H0625 | 5 | ||
BOLT-FLANGED | 130A | 130H0670 | 4 | ||
RING-O,67.7X3.1 | 92055 | 92055-1434 | 4 | ||
PLUG,DRAIN | 92066 | 92066-1211 | 1 | ||
PLUG | 92066A | 92066-1389 | 3 | ||
GROMMET,AIR FILTER | 92071 | 92071-1013 | 2 | ||
GROMMET | 92071A | 92071-1222 | 2 | ||
SEAL,AIR FILTER CASE | 92093 | 92093-1396 | 1 | ||
SEAL | 92093A | 92093-1397 | 1 | ||
SEAL,DUCT,LH | 92093B | 92093-1398 | 1 | ||
SEAL,DUCT,RH | 92093C | 92093-1399 | 1 | ||
SEAL,LH | 92093D | 92093-1400 | 1 | ||
SEAL,RH | 92093E | 92093-1401 | 1 | ||
SEAL,AIR FILTER | 92093F | 92093-1402 | 2 | ||
SPRING,DUCT | 92144 | 92144-1563 | 4 | ||
BOLT,5X12 | 92150 | 92150-1661 | 8 | ||
BOLT,6X20 | 92151 | 92151-1094 | 3 | ||
DAMPER | 92160 | 92160-1666 | 1 | ||
CLAMP | 92170 | 92170-1118 | 3 | ||
TUBE,4X9X220 | 92190 | 92190-1091 | 2 | ||
TUBE,L=550 | 92190A | 92190-1405 | 1 | ||
TUBE,HEAD COVER-VALVE | 92190B | 92190-1543 | 1 | ||
TUBE | 92190C | 92190-1544 | 1 | ||
TUBE,CARBURETOR-PUMP | 92190D | 92190-1545 | 1 | ||
TUBE,BREATHER | 92191 | 92191-1024 | 1 | ||
TUBE | 92191A | 92191-1025 | 1 | ||
TUBE,AIR FILTER-VALVE | 92191B | 92191-1026 | 1 | ||
TUBE,7X10X500 | 92191C | 92191-1028 | 1 | ||
TUBE | 92191D | 92191-1060 | 1 | ||
WASHER,5.3X15X1.5 | 92200 | 92200-1281 | 4 | ||
FITTING,T-TYPE | 92005A | 92005-1252 | 1 | CA | |
FITTING | 92005B | 92005-1309 | 1 | CNUS |
FILTER-ASSY-AIR | |
REF # | 11010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELEMENT-AIR FILTER | |
REF # | 11013 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
HOLDER,ELEMENT | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER | |
REF # | 13091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREEN,AIR FILTER | |
REF # | 14037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREEN,FILTER | |
REF # | 14037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DUCT | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DUCT,LH,#1 | |
REF # | 14073A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,RH,#1 | |
REF # | 14073B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,LH,#2 | |
REF # | 14073C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,RH,#2 | |
REF # | 14073D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,LH | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,RH | |
REF # | 14090A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE,AIR SWITCH | |
REF # | 16126 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE | |
REF # | 16126A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-RESONATOR,LH | |
REF # | 16181 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-RESONATOR,RH | |
REF # | 16181A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE | |
REF # | 32152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SILENCER-INTAKE | |
REF # | 39162 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,AIR DUCT COVER | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM | |
REF # | 53044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING,TUBE,T-TYPE | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X18,BLACK | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,6X10 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,5X20,BLACK | |
REF # | 92009C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,WELL,5MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,CLIP,6MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.5X20X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP,WIRING HARNESS,L=60 | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037D |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X25 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,67.7X3.1 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLUG,DRAIN | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
GROMMET,AIR FILTER | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,AIR FILTER CASE | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,DUCT,LH | |
REF # | 92093B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,DUCT,RH | |
REF # | 92093C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,LH | |
REF # | 92093D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,RH | |
REF # | 92093E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,AIR FILTER | |
REF # | 92093F |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,DUCT | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,5X12 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
TUBE,4X9X220 | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,L=550 | |
REF # | 92190A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,HEAD COVER-VALVE | |
REF # | 92190B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92190C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,CARBURETOR-PUMP | |
REF # | 92190D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,BREATHER | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92191A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,AIR FILTER-VALVE | |
REF # | 92191B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,7X10X500 | |
REF # | 92191C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92191D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,5.3X15X1.5 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
FITTING,T-TYPE | |
REF # | 92005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
FITTING | |
REF # | 92005B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CNUS |
REMARKS |
